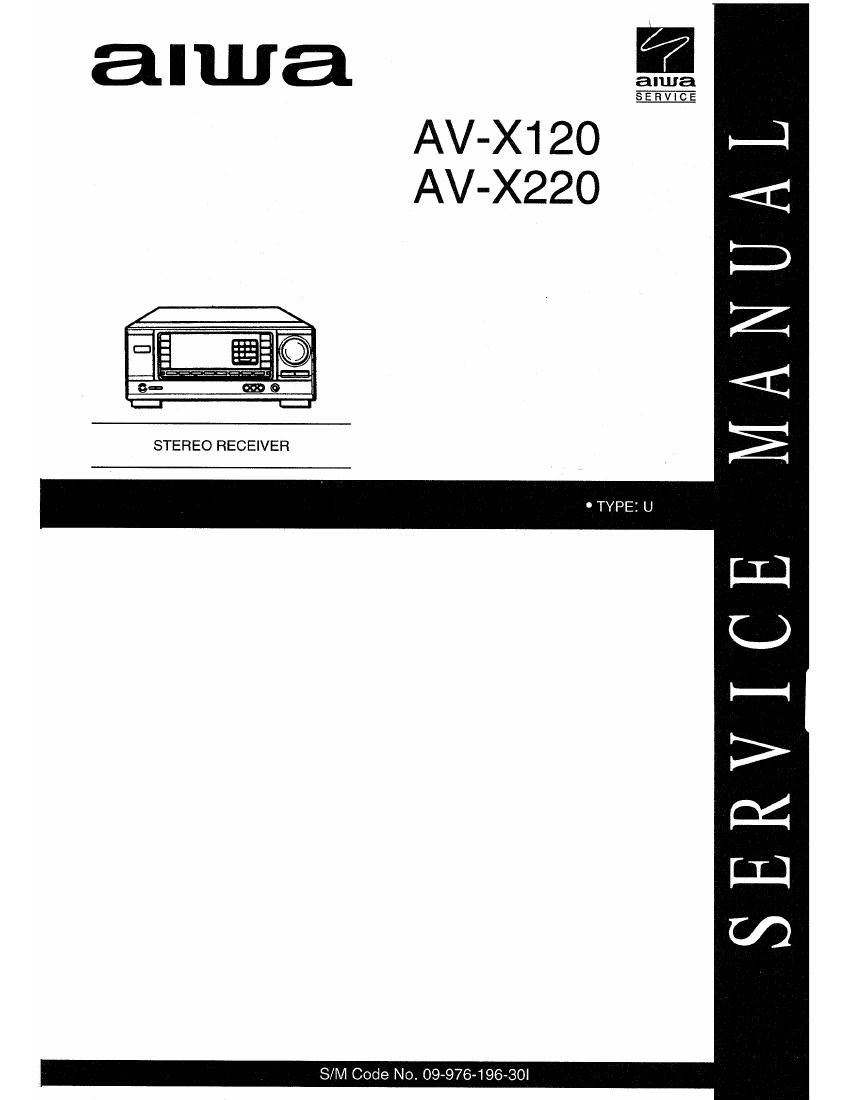

Aiwa AV X220 Service Manual

This is the 23 pages manual for Aiwa AV X220 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 23
left right
Aiwa AV X220 Service Manual

Extracted text from Aiwa AV X220 Service Manual (Ocr-read)


Page 2

FM tuner section
Tuning range 87.5 MHz to 106 MHz
llaobio sensitivity 13.2 car
("1?)
Antoine terminals 75 ohms (unbalanced)
AM tuner section
Timing range 530 kHz to 1710 kHz (10 kHz step).
531 .ItHz to 1602 kHz (9 kHz step)
Doubt. sensitivity 350 pVIm
Antenna Loop antenna
Amplifier section
Power output (Stereo Mode]
(AV-X220) From

125 watts per channel. Min. RMS at 4
or 8 ohms, from 40 Hzto 20 kHz. with
no more than 0.6% Total Harmonic
Distortion

[Dolby Pro Logic Mode]

Front

120 watts per channel. Min. RMS at 4
or 8 ohms (selectable). trorn 40 Hz to
20 kHz. with no more than 0.9% Total
Harmonic Distortion

Rur (Surround)

80 watts per channel. Min. HMS at 8
ohms,1kiiz,withncrmroman0.9%
Total Harmonic Distortion

Oonllr

120 watts. Min. HMS at 4 or 8 ohms
(selectable), 1 kHz. with no more than
0.9% Total Harmonic Distortion

Power output (Stereo Mode]

(AV-X120) From
75 watts per channel. Min. HMS at 4
or 8 ohms, from 40 Hz to 20 kHz, with
no more than 05% Total Harmonic
Distortion
[Dolby Pro Logic Mode]
Front '
70 watts per channel. Min. EMS at 4
or 8 ohms, train 40 Hz to 20 kHz, with
no more than 0.9% Total Harmonic
Distortion
floor (Surround)
35 watts per channel, mn. RMS at 8
ohms. 1 kHz.with no more than 0.9%
Total Harmonic Distortion
Center
70 watts, Mii. M8 at 4 or 8 ohms, 1
kHz, with no more than 0.9% Total
Harmonic Distortion

Toni harmonic 0.07 33 (105 W, 1 kHz. 8 ohms, From)
mm AUDIO m
PHONO: 2.8 mV (50 kohms)
CD: 300 «W (50 kohrns)
TAPE MONITOR: 200 luv (25
kohrns)
VIDEO 1, VIDEO 21LDIMD,
VIDEO 3. AUX/TV: 250 mV (50
kohms)
VIDEO IN: 1 Vp-p (15 ohms)

""fsPEE‘ iCATIONS

Outputs AUDIO OUT (REC OUT): 200 mV (2

kohms)

VIDEO OUT (MONITOR): 1 Vp-p (15
ohms)

SUPER WOOFEH: 3.1 V

FRONT SPEAKERS IMP: 80/40
selectable (tront speakers A and 8):
With the SPEAKER IMPEDANCE
SELECTOR not to 40. accepts
speakers oi 4 ohms.

With the SPEAKER IMPEDANCE
SELECTOH lot to an. loo-pie
speakers of 6 ohms or more.
SURROUND SPEAKERS MP: on
(surround ope-ken): ecoopte
conkers 01 ii ohm- or more

CENTER SPEAKER IMP: 8914a
selectable
With the SPEAKER IMPEDANCE
SELECTOR set to an, accepts
speaker 01 4 ohms.
With the SPEAKER IMPEDANCE
SELECTOR set to an. accepts
speaker at 3 ohm: or more.
PHONES (stereo iack): accepts
headphones of 32 ohms or more
Mutlng ~20 GE

General (AV- X220)
Power requirements 120 V AC, 60 Hz
Power consumption 210 w

Dimensions 360 x 153.5 x 335 mm
(w x H x D) (14% x 6']: x13‘li in.)
Weight 10.3 kg (22 1b 11 oz.)
General (AV-X1 20)

Power requirements 120 V AC, 60 Hz
Power consumption 160 W

Dimensions 360 x 153.5 x 335 mm (14% x 6']:
(WxHxD) x13‘l4 in.)
Weight 8.5 kg (18 lb 12 oz.)

- Design and specifications are subject to change without
notice.

0 Dolby noise reduction manulactured under license from Dolby
Laboratories Licensing Corporation.
“DOLBY' and the double-D symbol DC are trademarks of Dolby
Laboratories Licensing Corporation.

o The word “BEE" and the "BEE symbol“ are trademarks of BBE
Subunit, Inc.
Under license Irom BBE Sound, Inc.
