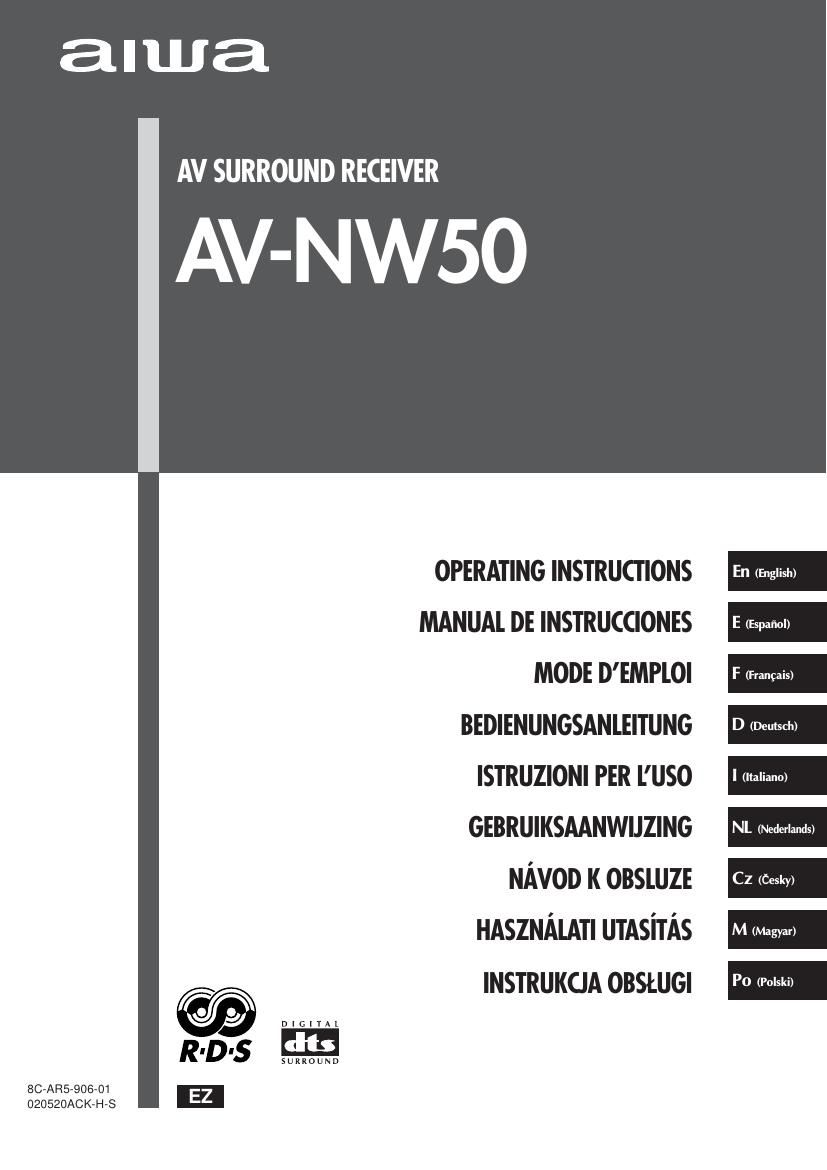

Aiwa AV NW50 Owners Manual

Extracted text from Aiwa AV NW50 Owners Manual (Ocr-read)


Page 1

2 ENGLISH ENGLISH WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK DO NOT OPEN -œCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.- PRECAUTIONS Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below. Installation 1Water and moisture - Do not use this unit near water, such as near a bath, sink, swimming pool, or the like. 2Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C or greater than 35°C. 3Mounting surface - Place the unit on a flat, even surface. 4Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm clearance from the rear and the top of the unit, and 5 cm from each side. -Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings. -Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded. 5Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the ventilation openings. 6Carts and stands - When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall. 7Wall or ceiling mounting - The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions. Electric Power 1Power sources - Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit. 2AC power cord -When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself. -Never handle the AC power plug with wet hands, as this could result in fire or shock. -Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket. -Avoid overloading AC power sockets and extension cords beyond their capacity, as this could result in fire or shock. 3When not in use - Unplug the AC power plug from the AC power socket if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off. Maintenance Clean the unit only as recommended in the Operating Instructions. OBSERVERA SĂ„ lĂ€nge som apparaten Ă€r ansluten till nĂ€tet flyter en svag ström genom densamma, Ă€ven dĂ„ den Ă€r avstĂ€ngd. Om man under en lĂ€ngre tid ej har för avsikt att anvĂ€nda den, drag dĂ„ ur nĂ€tkabeln. BEMÆRK Apparatet er stadig forbundet med lysnettet, sĂ„ lĂŠnge stikket er tilsluttet til stikkontakten, selv om afbryteren er slĂ„et fra. Hvis apparatet ikke bruges i lĂŠngere tid, skal netledningen trĂŠkkes ud.

Page 2

ENGLISH 3 En Remote control FM antenna AM antenna Operating Instructions, etc. Check your accessories Damage Requiring Service Have the unit serviced by a qualified service technician if: -The AC power cord or plug has been damaged -Foreign objects or liquid have got inside the unit -The unit has been exposed to rain or water -The unit does not seem to operate normally -The unit exhibits a marked change in performance -The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SER VICE THE UNIT YOURSELF . TABLE OF CONTENTS PRECAUTIONS................................................................... 2 PREPARATIONS CONNECTIONS.................................................................. 4 BEFORE OPERATION........................................................ 9 SOUND CUSTOM AUDIO ADJUSTMENT..................................... 10 DSP SURROUND.............................................................. 10 BASIC OPERATIONS SELECTION OF AUDIO/VIDEO SOURCE....................... 11 RECORDING AN AUDIO SOURCE................................. 12 RADIO RECEPTION MANUAL TUNING............................................................. 12 PRESET TUNING.............................................................. 13 RDS FEATURES............................................................... 13 ADJUSTMENTS................................................................ 14 DOLBY SURROUND AND DTS SURROUND TURNING SURROUND ON AND OFF............................. 15 SETTING SPEAKER SIZE AND DISTANCE................... 16 ADJUSTING SPEAKER LEVEL BALANCE.................... 17 OTHER SETTINGS........................................................... 18 TIMER SETTING THE SLEEP TIMER.......................................... 19 GENERAL CARE AND MAINTENANCE............................................ 19 TROUBLESHOOTING GUIDE.......................................... 19 SPECIFICATIONS............................................................. 20 PARTS INDEX................................................................... 21 APPENDIX BRAND CODES..............................................................A-1
