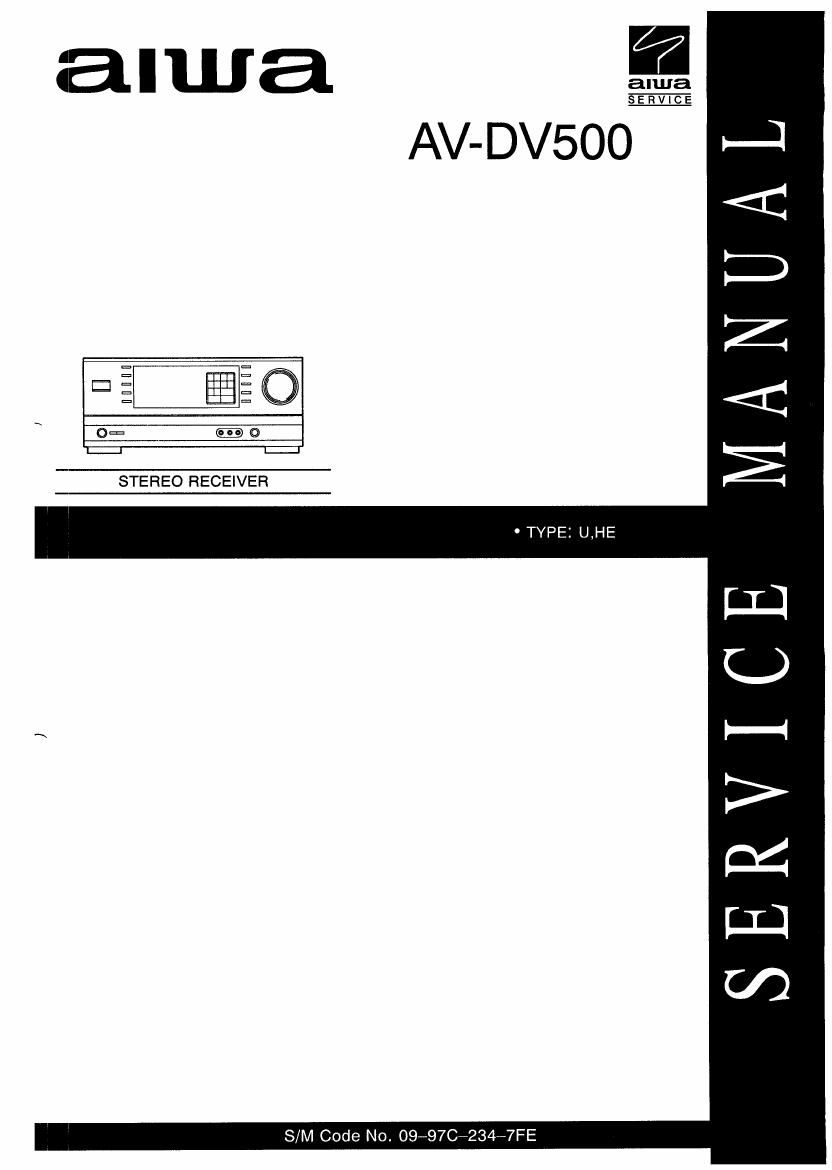

Aiwa AV DV500 Service Manual

This is the 26 pages manual for Aiwa AV DV500 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 26
left right
Aiwa AV DV500 Service Manual

Extracted text from Aiwa AV DV500 Service Manual (Ocr-read)


Page 2


Tuning range

Usable sensitivity(lHF)
Antenna


Tuning range

Usable sensitivity
Antenna


Power output

Total Harmonie distortion

Inputs

SPECIFICATIONS

87.5 MHz to 108 MHz
13.2 dBf
75 ohms (unbalanced)

530 kHz to 1710 kHz (10 kHz step)
531 kHz to 1602 kHz (9 kHz step)
350 [AV/m

Loop antenna

[Stereo mode]
Front
U : 75 watts per channel, Min.
RMS at 4 or 8 ohms, from 40 Hz to
20 kHz, with no more than 0.9%
Total Harmonic Distortion
HE : Rated : BWV+ 55W
(3 ohms, T.H.D. 1%, 1 kHz)
Reference : 100W + 100W
(8 ohms, T.H.D. 10%, 1 kHz)
[Dolby Pro Logic or 5 CH
Surround mode]
Front
U : 70 watts per channel, Min.
HMS at 4 or 8 ohms. from 40 Hz to
20 kHz, with no more than 0.9%
Total Harmonic Distortion
HE : Rated : 65W + 65W
(8 ohms. T.H.D. 1%. 1 kHz)
Reference : 75W + 75W
(8 ohms. T.HD. 10%. 1 kHz)
Rear (Surround)
U : 70 watts per channel, Min.
RMS at 8 ohms, 1kHz, with no
more than 0.9% Total Harmonic
Distortion
HE : Rated 16% + 65W
(8 ohms, T.H.D. 1%, 1 kHz)
Reference : 75W + 75W
(8 ohms, T.H.D. 10%, 1 kHz)
Center
U : 70 watts, Min. RMS am or 8
ohms,1 kHz, with no more than 0.9%
Total Harmonic Distoriion
HE : Rated : 65W
(3 ohms, T.H.D. 1%, 1 kHz)
Reference : 75W
(8 ohms, T.H.D. 10%, 1 kHz)
0.09 % (60 W, 1 kHz, 8 ohms,
Front)
AUDIO IN
PHONO : 2.8mV (50 kohms)
CD : 370 mV (50 kohms) (U)
CD : 400 mV (so kohms) (HE)
TAPE MONITOR : 200 mV
(25 kohms) (U)
TAPE MONITOR : 400 mV
(25 kohms) (HE)
VIDEO 1, VIDEO 2/LD/MD.
VIDEO 3, AUX/TV : 400 mV
(50 kohms)
SURROUND IN : 400 mV
(50 kohms)
CENTER : 400 mV (50 kohms)
VIDEO iN : 1Vp-p (75 ohms)
MIC 1, MIC 2: 1mV (20 kohms)

Outputs AUDIO OUT (REC OUT) : 230mV
(2 kohms) (U)

AUDIO OUT (REC OUT) : 250mV
(2 kohms) (HE)

VIDEO our (MONITOR) :

1 Vp-p (75 ohms)

SUPER WOOFER : 3.1 V

FRONT SPEAKERS IMP : 8 9/49
selectable (front speakers A and B) :
Vifith the SPEAKER IMPEDANCE
SELECTOR set to 452, accepts
speakers of 4 ohms.

with the SPEAKER IMPEDANCE
SELECTOR set to 89, accepts
speakers 018 ohms or more.
SURROUND SPEAKERS IMP : 3 S2
(surround speakers) : accepts speakers
of 8 ohms or more

CENTER SPEAKERS IMP : 8 9/49
selectable

mm the SPEAKER IMPEDANCE
SELECTOR set to 452, accepts
speaker of 4 ohms.

Wrth the SPEAKER IMPEDANCE
SELECTOR set to 89, accepts
speaker of 8 ohms or more.
PHONES (stereo jack) : accepts
headphones of 32 ohms or more
Mutlng —20 dB

Power requirements U : 120 V AC, 60 Hz

HE : 120 V/220-230/24O V AC,
switchable, 50/60 Hz

Power consumption U : 180 W

HE : 200 W
Dimensions 360 x 153.5 x 341 mm
(Wx H xD) (14‘/,x6‘/,x13‘/2in.)
Weight U : 8.9 kg (19 lb 10 oz.)

HE : 10.2 kg

- Design and specifications are subiect to change without
notice.

' The word “BEE" and the “BEE symbol" are trademarks of BBE
Sound, Inc.
Under license from BBE Sound, inc.

- Manufactured under llcense from Dolby Laboratories Licensing
Corporation.
“DOLBY”, the double-D symbol DD and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.

Page 26

REFERENCE NAME LIST

ELECTRICAL SECTION MECHANICAL SECTION
DESCRIPTION REFERENCE NAME DESCRIPTION REFERENCE NAME
ANT ANTENNAS ADHESHIVE SHEET ADHESHIVE
C- CHIP AZ AZIMUTH
C-CAP CAP, CHIP BAR-ANT BAR-ANTENNA
C-CAP TN CAP, CHIP TANTALUM BAT BATTERY
C-COIL COIL, CHIP BATI' BATI'ERY
C»D| DIODE, CHIP BRG BEARING
C-DIODE DIODE, CHIP BTN BUTTON
CAFET FET. CHIP CAB CABINET
C-FOTR FILTER, CHIP CASS CASSETTE
C-JACK JACK, CHIP CHAS CHASSIS
C-LED LED, CHIP CLR COLLAR
C-RES RES, CHIP CONT CONTROL
C-SFR SFR, CHIP CRSR CURSOR
C-SLIDE SW SLIDE SWITCH. CHIP CU CUSHION
C-SW SWITCH, CHIP CUSH CUSHION
C-TR TRANSISTOR, CHIP DIR DIRECTION
C-VR VOLUME, CHIP DUBB DUBBING
C-ZENER ZENER, CHIP FL FRONT LOADING
CAP, CER CAP, CERA-SOL FLY-WHL FLYWHEEL
CAP, E CAP, ELECT FR FRONT
CAP, M/F CAP, FILM FUN FUNCTION
CAP, TC CAP, CERA-SOL G-CU G-CUSHION
CAP, TC-U CAP, CERA—SOL SS HDL HANDOL
CAP, TN CAP, TANTALUM HIMERON CLOTH
CERA FIL FILTER, CERAMIC HINGE, BAT HINGE, BATTERY
CF FILTER, CERAMIC HLDR HOLDER
DL DELAY LINE HT-SINK HEAT SINK
E/CAP CAP. ELECT IB INSTRUCTION BOOKLET
FILT FILTER IDLE IDLER
FLTR FILTER IND, L-R INDICATOR, L-R
FUSE RES RES, FUSE KEY, CONT KEY, CONTROL
MOT MOTOR KEY, PRGM KEY, PROGRAM
P-DIODE PHOTO DIODE KNOB, SL KNOB, SLIDE
P-SNSR PHOTO SENSER LBL LABEL
P-TR PHOTO TRANSISTOR LID, BATI' LID, BATTERY
POLY VARI VARIABLE CAPACITOR LID, CASS LID, CASSETTE
PPCAP CAP, PP LVR LEVER
PT POWER TRANSFORMER P-SP P PTR, RES PTR, MELF PANEL, CONT PANEL, CONTROL
RC REMOTE CONTROLLER PANEL, FR PANEL, FRONT
RES NF RES. NON~FLAMMABLE PRGM PROGRAM
RESO RESONATOR PULLY. LOAD MO PULLY, LOAD MOTOR
SHLD SHIELD RBN RIBBON
SOL SOLENOID S~ SPECIAL
SPKR SPEAKER SEG SEGMENT
SW, LVR SWITCH, LEVER SH SHEET
SW, RTRY SWITCH, ROTARY SHLDvSH SHIELD-SHEET
SW, SL SWITCH, SLIDE SL SLIDE
TC CAP CAP, CERA—SOL SP SPRING
THMS THERMISTOR SP-SCREW SPECIAL-SCREW
TR TRANSISTOR SPACER, BAT SPACER, BATTERY
TRIMER CAP, TRIMMER SPR SPRING
TUN-CAP VARIABLE CAPACITOR SPR-P P-SPRING
VIB, CER RESONATOR, CERAMIC SPR-PC—PUSH P-SPRING, CvPUSH
VIB, XTAL RESONATOR, CRYSTAL T~SP T-SPRING
VR VOLUME TERM TERMINAL
ZENER DIODE, ZENER TRIG TRIGGER
TUN TUNING
VOL VOLUME
W WASHER
WHL WHEEL
WORM-WHL WORM-WHEEL

G—
G"
G—

?1"? WEEK
