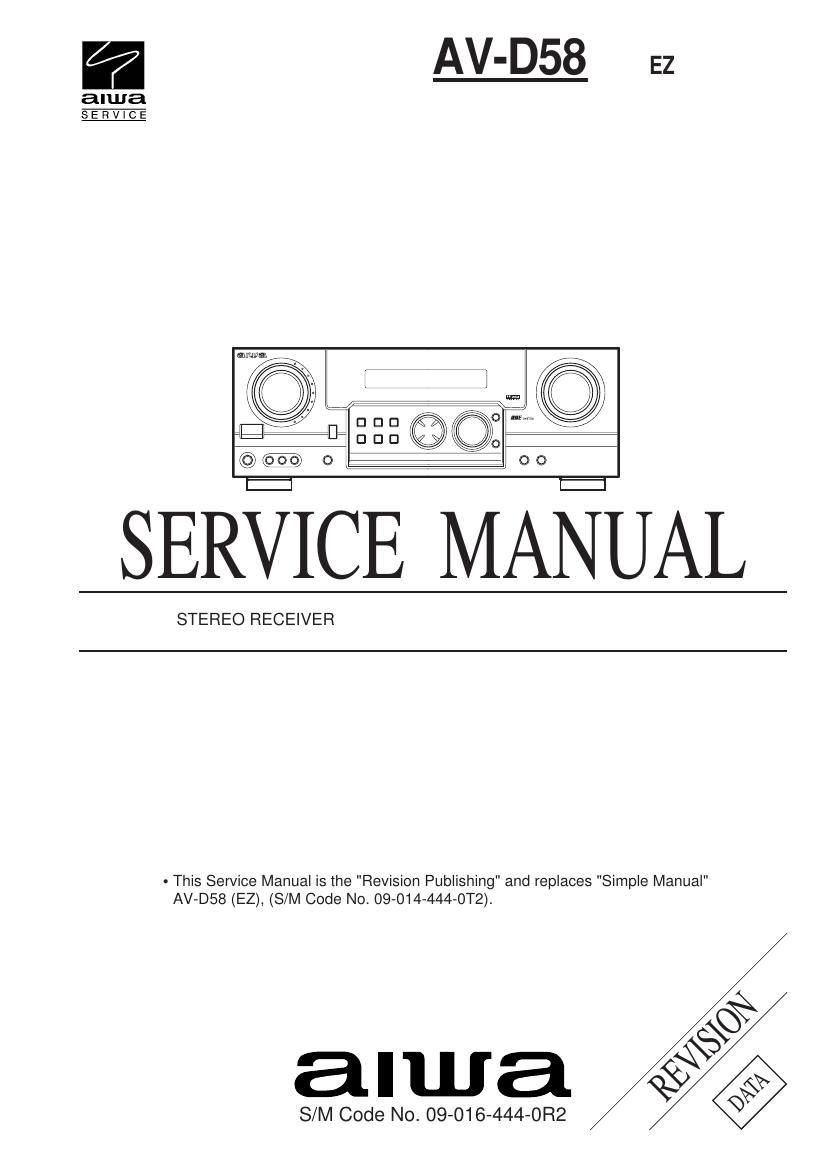

Aiwa AV D58 Service Manual

This is the 34 pages manual for Aiwa AV D58 Service Manual.
Read or download the pdf below. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 34
left right
Aiwa AV D58 Service Manual

Extracted text from Aiwa AV D58 Service Manual (Ocr-read)


Page 2


Tuning range

Usable sensitivity (IHF)
Antenna terminals


Tuning range

Usable sensitivity
Antenna


Tuning range
Usable sensitivity
Antenna


Power output

Total harmonic distortion
Inputs

SPECIFICATIONS

87.5 MHZ to 108 MHZ
16.8 dBl
75 ohms (unbalanced)

531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)
350 pV/m

Loop antenna

144 kHz to 290 kHZ
1400 uV/m
Loop antenna

Front
Rated: 70 W + 70 W (1 kHz/DIN 45500,
T.H.D.1 %, 8 ohms)
Reference: 85 W + 85 W (1 kHz/DIN
45324,T.H.D.10 %, 8 ohms)
Rear (Surround)
Rated: 70 W + 70 W (1 kHz/DIN 45500,
T.H.D.1 %, 8 ohms)
Reference: 85 W + 85 W (1 kHz/DIN
45324,T.H.D.10 %, 8 ohms)
DIN MUSIC POWER: 180 W +180 W
Center
Rated: 70 W (1 kHz/DIN 45500,
T.H.D.1 %, 8 ohms)
Reference: 85 W (1 kHz/DIN 45324,
T.H.D.10 %, 8 ohms)
DIN MUSIC POWER: 180 W
0.1 % (50 W, 1 kHz, 8 ohms, Front)
AUDIO IN
PHONO : 2.5 mV, adjustable
(47 kohms)
VIDEO 1/DVD/MD, VIDEO 2/
LD/TV, VIDEO 3, CD : 300 mV
adjustable (47 kohms)
TAPE MONITOR : 350 mV,
adjustable (47 kohms)
AUX : 300 mV,
adjustable (47 kohms)
DIGITAL IN
COAXIAL (VIDEO 2) :
OPTICAL (VIDEO 1) :
accept linear PCM signals and
bit stream of Dolby Digital and
DTS Surround (32 kHz, 44.1
kHz and 48 kHz and 96 kHz)
VIDEO IN : 1 Vp-p (75 ohms)

Outputs

Muting

Power requirements
Power consumption
Power consumption in
standby mode
Dimensions of main unit
(W x H x D)

Weight of main unit

AUDIO OUT (REC OUT) : 300 mV

(1 kohm)

VIDEO OUT (MONITOR) : 1 Vp-p

(75 ohms)

SUPER WOOFER : 1.5 V

FRONT SPEAKERS IMP :8 ohms:
accepts speakers of 8 ohms or more
SURROUND SPEAKERS IMP :8 ohms
: accepts speakers of 8 ohms or more
CENTER SPEAKERS IMP :8 ohms:
accepts speakers of 8 ohms or more
PHONES (stereo jack) : accepts
headphones of 32 ohms or more -20 dB
—20 dB

230 V AC, 50 HZ

185 W
ECO OFF : 35.6 W
ECO ON : 1.3 W

430 x 155 x 402 mm

8.7 kg

- Design and specifications are subject to change without notice.

- Manulactured under license from Dolby Laboratories Licensing

Corporation.

“DOLBY”, the double-D symbol DE] and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.

- Manulactured under license from Digltal Theater System, Inc. US
Pat. No. 5,451,942 and other worldwlde patents issued and pendjng.
"DTS" and "DTS Digital Surround" are trademarks of Digital Theater
System Inc. @1996 Digital Theater system, Inc. All rights reserved.
