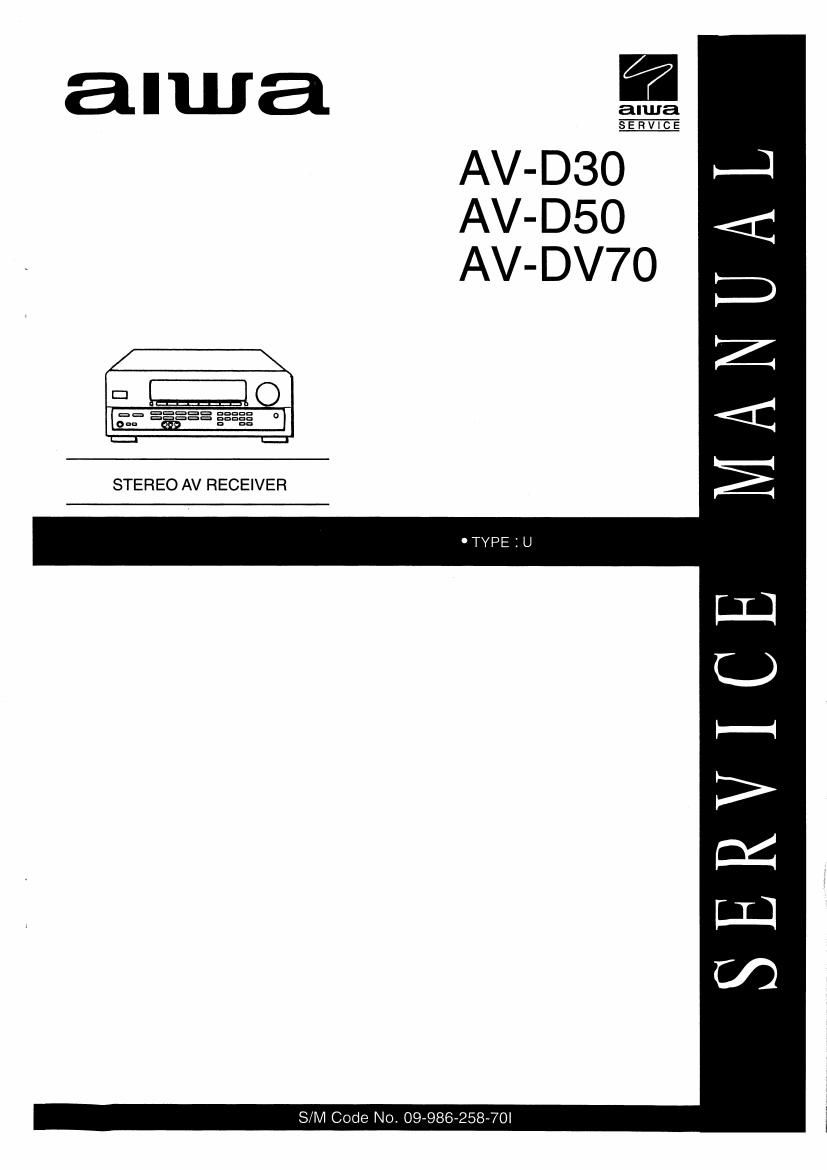

Aiwa AV D30 Service Manual

This is the 32 pages manual for Aiwa AV D30 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 32
left right
Aiwa AV D30 Service Manual

Extracted text from Aiwa AV D30 Service Manual (Ocr-read)


Page 2

SPECIFICATIONS [AV-D30]

FM tuner section

Tuning range

Usable sensitivity
(IHF)

Antenna terminals

87.5 MHz to 108 MHZ
13.2 dBI I

75 ohms (unbalanced)

AM tuner section

Tuning range

Usable sensltlvlty
Antenna

530 kHz to 1710 kHz (10 kHz step).
531 kHz to 1602 kHz (9 kHz step)
350 pV/m

Loop antenna

Amplifier section

Power output

Total harmonic
distortion
Inputs

Outputs

Muting

[Stereo Mode]

Front

85 watts per channel. Min. RMS at 5
ohms, (ram 40 Hz to 20 kHz. with no
more than 0.9% Tolal Harmonic
Distortion

[Dolby Pro Logic or 5.1 CH Mode]
Front

70 watts per channelI Min. HMS at 5
ohms, from 40 Hz to 20 kHz. with no
more than 0.9% Total Harmonic
Distortion

Rear (Surround)

35 watts per channel, Min. HMS ate
ohms. 1 kHz. with no more than 0.9%
Total Harmonic Distortion

Center

70 watts, Min. RMS at 8 ohms, 1 kHz.
with no more than 0.9% Total
Harmonic Distortion

0.08 % (50 W. 1 kHz, 6 ohms, Front)

AUDIO IN
PHONO: 2.5 mV. adjustable (47
kohms)
CD: 250 mV, adjustable (47
kohms)
TAPE MONITOR: 250 mV (47
kohms)
VIDEO IIDVD/MD, VIDEO 2/LD/
TV, VIDEO 3, AUX: 250 mV,
adjustable (47 kohms)
5.1 INPUT (FRONT. SURROUND.
CENTER. SUB-WOOFER): 400
mV (47 kohms)
VIDEO IN: 1 Vp-p (75 ohms)
AUDIO OUT (REC OUT): 200 mV (1
kohm)
VIDEO OUT (MONITOR): 1 Vp-p (75
ohms)
SUPER WOOFER: 200 mV
FRONT SPEAKERS IMP: 8!)
(front speakers A and B): accepts
speakers of 8 ohms or more.
SURROUND SPEAKERS IMP: 8(2
(surround speakers): accepts
speakers oi 8 ohms or more
CENTER SPEAKER IMP: Bl): accepts
a speaker ol 8 ohms or more
PHONES (stereo jack): accepts
headphones oi 32 ohms or more
~20 dB

General

Power requirements 120 V AC, 60 Hz
Power consumption 125 W

Dimensions 430 x 155 x 351 mm
(WxHxD) (17x6‘la xta’la in,)
Weight 10.0 kg (22 lot 021)

0 Design and specifications are subject to change without notice

I Manulacturad under license from Dolby Laboratories Licensing
Corporalion.

O “DOLEY‘, the double-D symbol DC are “PRO LOGIC“ are
trademarks of Dolby Laboratories Licensing Corporation.

Page 4

SPECIFICATIONS [AV-DV70]

FM tuner section

Tunlng range
Usable sensitivity
(ma)

Antenna termlnals

87.5 MHZ to 108 MHZ
13.2 dBI

75 ohms (unbalanced)

AM tuner section

Tuning range

Usable sensitivity
Antenna

530 kHz to 1710 kHz (10 kHz step).
531 kHz to 1602 kHz (9 kHz step)
350 uV/m

Loop antenna

Amplifier section

Power output

Total harmonic
distortion
Inputs

[Stereo Mode]

Front

130 watts per channel. Min. RMS at 8
ohms. Irom 40 Hz to 20 kHz. with no
more than 0.9% Total Harmonic
Distortion

[Dolby Digital Surround or Dolby
Pro Logic Mode)

Front

120 watts per channel. Min. RMS at 8
ohms. lrorn 40 Hz to 20 kHz, with no
more than 0.9% Total Harmonic
Distortion

Rear (Surround)

60 watts per channel. Min. RMS at 3
ohms. 1 kHz. with no more than 0.9%
Total Harmonic Distortion

Center

120 watts. Min. HMS at 8 ohms. 1
kHz. with no more than 0.9% Total
Harmonic Distortion

0.03 % (85 W. 1 kHz. 8 ohms. Front)

AUDIO IN-
PHONO: 2.5 mV. adjustable (47
kohms)
CD: 250 mV. adjustable (47
kohms)
TAPE MONITOR: 250 mV (47
kohms)
VIDEO t/DVD/MD, VIDEO 2/LD/
TV. VIDEO 3. AUX: 250 mV.
adjustable (47 kohms)
DIGITAL IN
COAXIAL (VIDEO 2):
OPTICAL (VIDEO 1):
accept linear PCM (32 kHz. 44.1
kHz and 48 kHz) signals and bit
stream ol Dolby Digital Surround
VIDEO IN: 1 Vp-p (75 ohms)

Outputs AUDIO OUT (REC OUT): 200 mV (1

kohm)
VIDEO OUT (MONITOR): 1 Vp-p (75
ohms)
SUPER WOOFER: 1 V
FRONT SPEAKERS IMP: 80/40
selectable (lront speakers A and B):
with the SPEAKER IMPEDANCE
SELECTOR set to 40. accepts
speakers of 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to an. accepts
speakers at 8 ohms or more.
SURROUND SPEAKERS IMP: Bfl
(surround speakers): accepts
speakers at 8 ohms or more
CENTER SPEAKER IMP: 80/40
selectable
with the SPEAKER IMPEDANCE
SELECTOR set to 40. accepts
speaker ol 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to on, accepts
speaker at 8 ohms or more.
PHONES (stereo jack): accepts
headphones at 32 ohms or more

Mutlng —20 dB

General
Power requirements 120 V AC. 60 Hz
Power consumption 230 W

Dimensions 430 x 155 x 351 mm

(quxn) (17x6‘le new. in.)
Weight 11.2 kg (24 lb 11 oz.)
0

Design and specifications are subject to change without notice.
Manufactured under license from Dolby Laboratories.
'DOLBY”. “Pro Logic" and the double-D symbol are trademarks
of Dolby Laboratories. Confidential Unpublished Works. @1992-
1997 Dolby Laboratories. Inc. All rights reserved.

The word "BBE" and the “BBE symbol” are trademarks of BBE
Sound. Inc.

Under License from BBe Sound. Inc.
