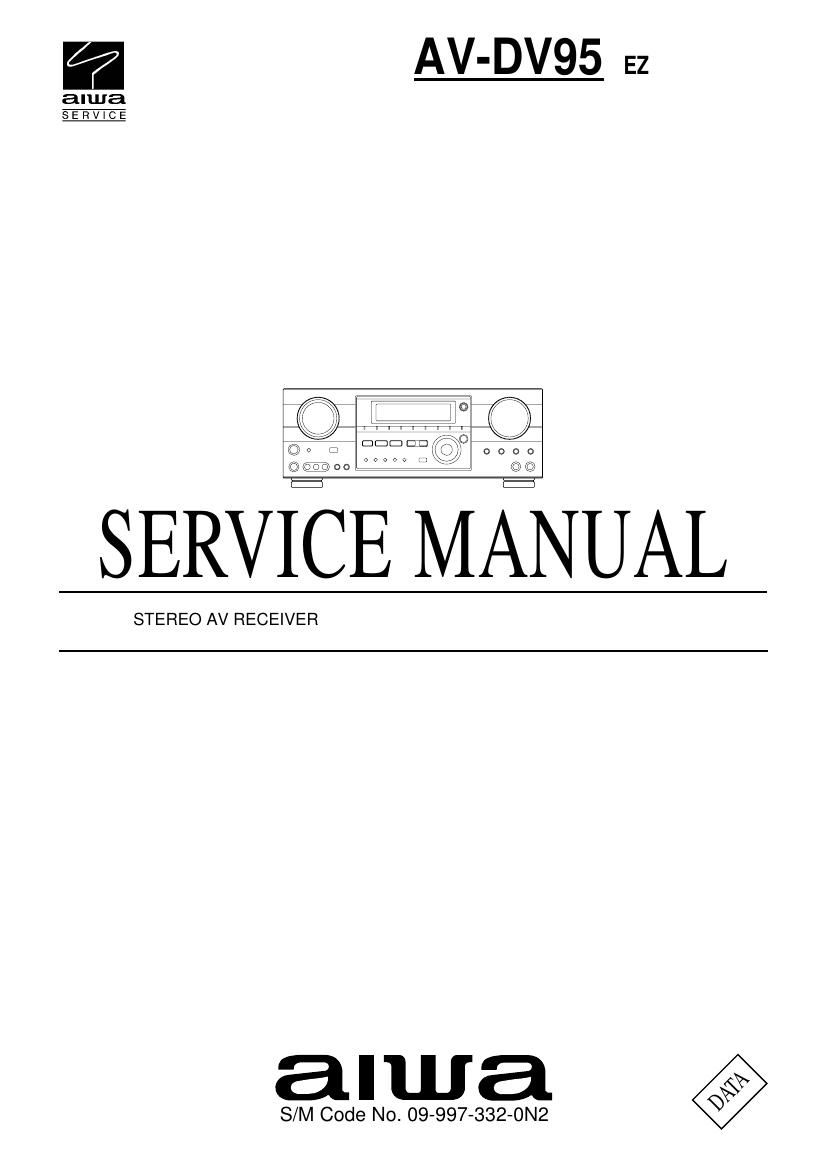

aiwa av dv95 EZ

Extracted text from aiwa av dv95 EZ (Ocr-read)


Page 2

SPECIFICATIONS

FM tuner section
Tuning range 875 MHZ to 108 MHZ
Usable sensitivity 13.2 dBf
(IHF)
Antenna terminals 75 ohms (unbalanced)

MW tuner section

Tuning range 531 kHz to 1602 kHz (9 kHz step)
530 kHz to 1710 kHz (10 kHz step)

Usable sensitivity 350 uV/m

Antenna Loop antenna

LW tuner section

Tuning range 144 kHz to 290 kHz
Usable sensitivity 1400 pV/m
Antenna Loop antenna

Amplifier section

Power output [Stereo Mode]
Front
Rated: 160 W +160 W (8 ohms,
T.H.D. 1%, 1 kHz/DIN 45500)
Reference: 190 W +190 W (8 ohms,
T.H.D. 10%,1 kHz/DIN 45324)
DIN MUSIC POWER: 310 W + 310 W

Outputs AUDIO OUT (REC OUT): 260 mV (1

kohm)
VIDEO OUT (MONITOR): 1 Vp-p (75
ohms)
SUPER WOOFER: 5.0 V
FRONT SPEAKERS IMP: SKI/4Q
selectable (front speakers A and B):
with the SPEAKER IMPEDANCE
SELECTOR set to 40, accepts
speakers of 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to 89, accepts
speakers of 8 ohms or more.
SURROUND SPEAKERS IMP: 89
(surround speakers): accepts
speakers of 8 ohms or more
CENTER SPEAKER IMP: 89/49
selectable
with the SPEAKER IMPEDANCE
SELECTOR set to 40, accepts
speaker of 4 ohms.
with the SPEAKER IMPEDANCE
SELECTOR set to 89, accepts
speaker of 8 ohms or more.
PHONES (stereo jack): accepts
headphones of 32 ohms or more

[Dolby Digital surround or Dolby Pro Muting —20 dB
Logic Mode]
Front General

Rated: 100 W +100 W (8 ohms,

Power requirements 230 V AC, 50 Hz
T.H.D. 1%, 1 kHz/DIN 45500)

Power consumption 285 W

Reference: 125 W + 125 W (8 ohms, Dimensions 430 x 155 x 385 mm
T.H.D. 10%. 1 kHz/DIN 45324) (w X H X D)

DIN MUSIC POWER: 155 w +155 w Weight 12 kg

Rear (Surround)
Rated: 100 w +100 w (8 ohms,
T.H.D. 1%, 1 kHz/DIN 45500)
Reference: 125 W +125 W (8 ohms,
T.H.D. 10%, 1 kHflDIN 45324)
DIN MUSIC POWER: 155 W +155 W
Center
Rated: 100 W (8 ohms, T.H.D. 1%, 1
kHz/DIN 45500)
Reterence: 125 W (8 ohms, T.H.D.
10%, 1 kHz/DIN 45324)
DIN MUSIC POWER: 155 W
Total harmonic 0.1 % (80 W, 1 kHz, 8 ohms, Front)
distortion
Inputs AUDIO IN
PHONO: 2.5 mV, adjustable (47 kohms)
CD, VIDEO 1/DVD/MD, VIDEO 2/LD/
TV, VIDEO 3: 270 mV, adjustable (47
kohms)
TAPE MONITOR: 290 mV, adjustable
(47 kohms)
AUX: 200 mV, adjustable (47 kohms)
DIGITAL IN
COAXIAL (VIDEO 2):
OPTICAL (VIDEO 1):
OPTICAL (VIDEO 3):
OPTICAL (CD):
accept linear PCM (32 kHz, 44.1
kHz and 48 kHz) signals and bit
stream of Dolby Digital and DTS
Surround
VIDEO IN: 1 Vp-p (75 ohms)

Design and specifications are subject to change without
notice.

Dolby noise reduction manuiactured under license from
Dolby Laboratories Licensing Corporation.

“DOLBY” and the double»D symbol ][ and “PRO LOGIC"
are trademarks of Dolby Laboratories Licensmg
Corporation.

Laboratories Licensing Corporation.

The word “BBE” and the “BBE symbol” are trademarks
oi BBE Sound,lnc.

Under license lrom BBE Sound,lnc.

ACCESSORIES/PACKAGE LIST

DESCRIPTION’G‘I': WTEKHMI: "REFERENCE NAME LIST” EZBIIfi L’C < 7’5 3 in
If can‘t understand for Description please kindly refer to "REFERENCE NAVIE LIST”.

REF, NO PART NO KANFII DESCRIPTION
N0

BZ’AR179067010

13,EZ(9LIM

AM LOOP ANT 5m
WIRE, rn ANT (2)
RC UMBRC’ZAROA
