Aiwa AD R507 Service Manual

This is the 23 pages manual for Aiwa AD R507 Service Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 23
left right
Aiwa AD R507 Service Manual

Extracted text from Aiwa AD R507 Service Manual (Ocr-read)


Page 1

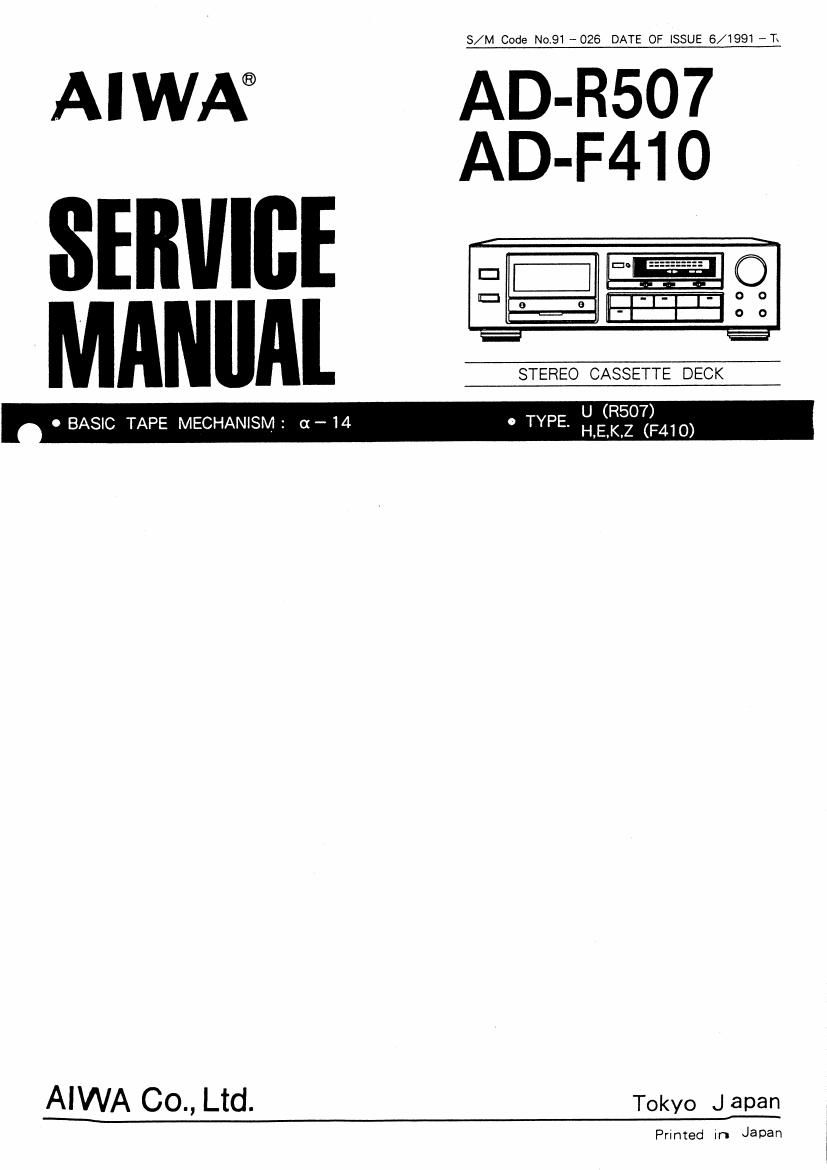

S/M Code No.91 -026 DATE OF ISSUE 6/1991 ~T-

Al WA® AD-R507
AD-F41O

D o a 'l- 1- ° °

- O O

- =,
STEREO CASSETTE DECK

U (R507)

. BASIC TAPE MECHANISM: (1-14 . TYPE. H,E.K,Z (F410)

AIWA CO., Ltd. Tokyo J apan

Printed in Japan

Page 2

SPECIFICATIONS

AD- R507

TYPE Stereo cassette tape deck
Track lormat 4 tracks, 2 channels
Power supply AC 120 V, 60 Hz

Power consumption
12 W
Frequency response
METAL tape: 20-18,000 Hz
CrOz tape: 20-17,000 Hz
NORMAL tape: 20-16,000 Hz
Signal-to~noise ratio
73 dB (METAL tape DOLBY C NR
ON above 5 kHz)
Wow and llutter 0.065% (WRMS)
0.18% (according to DIN 45500)

Tape speed 4.8 cm/sec. (17/5 ips)
Recording system AC bias (frequency 85 kHz)
Erase system AC erase

Motor DC servomotor (1)

Heads Recordlplayback head (1)

Erase head (1)
(Double-gap lerite head)

Inputs REC/LINE lN maximum input
sensitivity: 50 mV (47 kn)
Outputs PLAY/LINE OUT standard output

level: 350 mV (0 VU); suitable load
impedance: over 47 k0
PHONES: 014 mW (320)

Dimensions 430(W) x 133(H) x 269(0) mm
17 (W) x 5-]: (H) x 105/5 (D) inches
Weight 3.9 kg

8.58 lbs.

AD - F41 0
Type Stereo cassette tape deck
Track tormat 4 tracks, 2 channels
Power supply AD-F41OE, Z
AC 220 V, 50 HZ
AD-F41OK
AC 240V, 50 Hz
AD-FMOH

AC 110-120 VI220-240 V
switchable, 50/60 Hz
Power consumption >
12 W
Frequency response
METAL tape: 20-20,000 Hz
Cr02 tape: 20-18,000 Hz
NORMAL tape: 20-11000 Hz
Signal-to-noise ratio
73 dB (METAL tape DOLBY 0 NR
ON above 5 kHz)
Wow and flutter 0.065% (WRMS)
(118% (according to DIN 45500)

Tape speed 4.8 cmlsec. (17/5 ips)

Recording system AC bias (frequency 85 kHz)

Erase system AC erase

Motor DC servomotor (1)

Heads Record/playback head (1) -

(PGOCC super DX head)
Erase head (1)
(Doublegap lerite head)

Inputs REC/LINE IN maximum input sen-
sitivity: 50 mV (47 k0)

DIN max sensitivity (2 model
only): 0.1 mV/kfl (33 k0)

Outputs PLAY/LINE OUT standard output
level: 350 mV (0 VU); suitable load
impedance: over 47 kt)

DIN standard level (2 model only):
0.3 v (o VU)
PHONES: 0.14 mW (320)

Dimensions 430(W) x133(H)x 269(0) mm
17 (W) x 5-l4 (H)x105/a (D) inches
Weight 3.9 kg

8.6 lbs

. Design and specifications are subject to change
without notice.

0 Dolby noise reduction and HX Pro headroom exten-
sion manutactured under license from Dolby Labora-
tories Licensing Corporation. HX Pro originated by
Bang 8. Olufsen.
