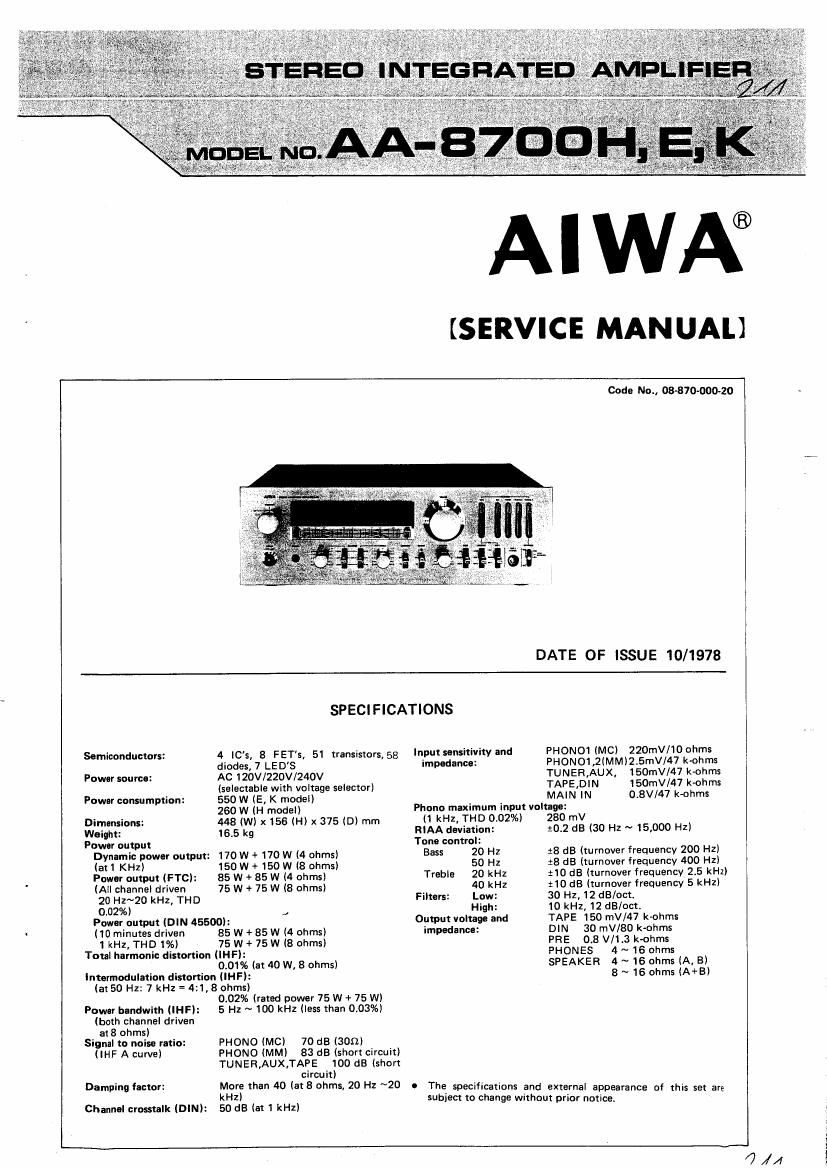

Aiwa AA 8700 K Service Manual

Extracted text from Aiwa AA 8700 K Service Manual (Ocr-read)


Page 9

A. WA MODEL Nu. AA-87l1l1H,E,K

Ref. No. Part No. (5:3:0 Description 6:22;" O'ty
3-1 82-397-054-01 Cover, DIN AD-6550 1
3-2 32-380-355-01 Holder, DlN jack AD-GEOO 1
3-3 82478-220-01 Himeron clothA, Blind * 2
3-4 82478-221411 Himeron cloth E, Blind * 5
3-5 82478-20501 Holder, Meter 5 2
3-6 82-399-025-01 AC switch button assy AD-6400 1
3-7 82478-016-01 Cap, Filter button 2
3-8 82478-015-01 Filter button " 2
3-9 82478-222-01 Himeron C, Lever 1
3-10 87-038-03901 Wire binder 1
3-11 82478-21501 Brass post B, Circuit board ' 1
3-12 82478-20801 Brass post A, Circuit board * 1
3-13 87032-86001 Pin, 5P 1
3-14 82478-204-01 Holder, Circuit board 3
3-15 82-473-211-01 Blind B, Pilot lamp " 1
3-16 82478-20901 Blind A, Pilot lamp 2
3-17 87-033-148-01 Screw, Speaker terminal 2
3-18 87-064-088-01 Holder, Circuit board 2 ..
3-19 8 87034-88101 AC power cord (E model only) 1
3-19 b 87-034-872-01 AC power cord (K model only) 1
3-19 1: 87034-885411 AC power cord (H model only) 1
3-20 87-085-101-01 Cord bushing (H model only) 1
3-21 82478-20701 Holder, Cord bushing (E, K model only) 1
3-22 37-085-095-01 Holder B, AC power cord (E, K model only) 1
3-23 87085-09401 Holder A, AC power cord (E, K model only) 1
3-24 87056-00801 Label, AC power cord (K model only) 1
3-25 87056-01601 Tag, Main voltage (K model only) 1
3-26 87085-102-01 Nylon rivet 7
3-27 82478-603411 Shield plate 1
3-28 87034-92001 Push switch, REMOTE wire 1
3-29 37034-919431 Wire, Lever switch 1
3-30 87-031452-01 Lever switch, REMOTE 1
3-31 82478-228431 SW holder (MC) 1
3-32 82478-038471 Cartridge selector ass'y 1
3-33 82-478-022-01 Knob plate 1
3-34 82478-01901 Window, Selector indication 5
3-35 82478-21001 Shaft, Selector button 1
3-36 824178-01 7-01 Selector button " 5
3-37 82-473-018-01 Cap, SeleCtOr button " 5
3-38 82365-29401 Pressure plate spring, Cassette 5
Ref. No. Part No. Description O'ty Ref. No. Part No. Description Oty
3-101 87-081-511-01 VTT + 36 16 3-106 87-251-097-21 U + 3-12 2
3-102 87-261-092-21 V + 3-4 7 3-107 87-261-099-21 V + 3-15 2
3-103 87-231-035-21 Q + 2-6 2 3-108 87-231094-21 Q + 3-6 2
3-104 87-081-501-01 VTT + 2.6-4 5 3-109 87441-00601 STE-2,3 1
3-105 87-031-871-01 Special screw + 3-8 4

(Black)
