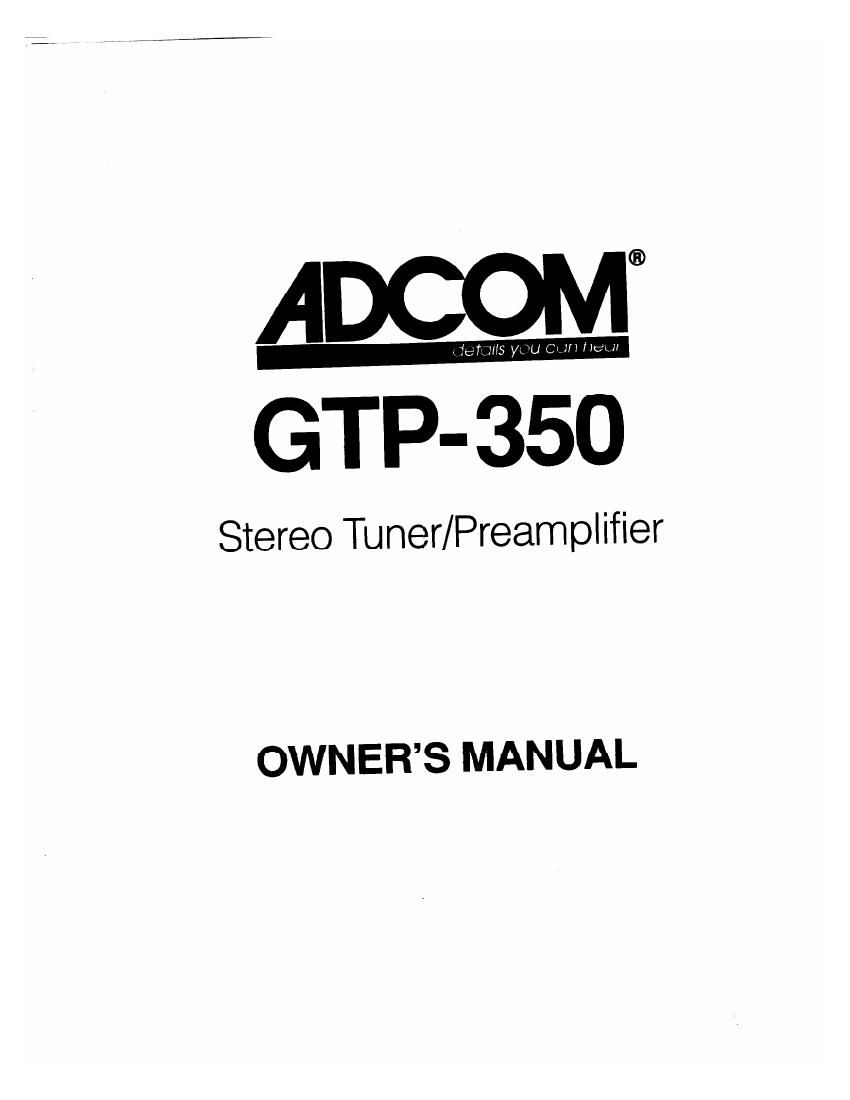

Adcom GTP 350 Owners Manual

This is the 12 pages manual for Adcom GTP 350 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 12
left right
Adcom GTP 350 Owners Manual

Extracted text from Adcom GTP 350 Owners Manual (Ocr-read)


Page 2

THE FOLLOWING PRECAUTIONS AND SAFETY INSTRUCTIONS
ARE REQUIREMENTS OF UL AND GSA SAFETY REGULATIONS

Warning: To reduce the risk of tire or electric shock, do not expose
this unit to rain or moisture.

RISK OF ELECTRIC SHOCK '
DO NOT OPEN .

AVIS: RISOUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

The graphic symbol oi a lightning flash with an arrow
point within a triangle signilies that there is dangerous
voltage within the unit and it poses a ha7ard in anyone
removing the cover to gain access to the interior of the
unit.0nly qualitled service personnel should make
any such attempt.

The graphic syrnbui ul an exclamation point Within an
equilateral triangle warns a user 01 the device that it is
necessary to refer to the instruction manual and its
warnings Ior proper operation of the unit,

Do not place this unit on an unstable cart, stand, tripod,
bracket, or table. The unit may fall, caustng serious
injury to a child or adult. and serious damage to the
unit. Use only with a cart, stand. tripod. bracket. or table
recommended by the manulocturer, or sold With the
unit. Any mounting ol the device should follow the man-
ufacturer‘s instructions. and should use a mounting ac~
cessory recommended by the manulacturer.
Read all the salary and operating instructions before connecting or using
this unit.

Retain this notice and the owner's manual for Iuture reference
All warnings on the unit and in its operating instructions should be adhered to

All operating and use instructions should be lollowed.

Do not use this unit near water; for example, near a bathtub, washbowl.
kitchen sink, laundry tub. in a wet basement, or near a swimming pool.

The unit ohould be installed so that its locaiinn nr nnsitinn does not interlere
with its proper ventilation. For example, it should not be situated on a bed.
sola. rug, or similar surtace that may block the ventilation openings; or
placed in a builtvin installation, such as bookcase or cabinet. that may
impede the flow of air through its ventilation openings.

The unit should be situated away from heat sources such as radiators. heat
registers. stoves. or other devices (including amplifiers) that produce heat.

The unit should be connected to a power—supply outlet only at the voltage
and Irequency marked on its rear panel.

The power‘supply cord should be routed so that it is not likely to be walked
on or pinched. especially near the plug. convenience receptacles, or where
the cord exits lrom the unit.

Clean unit only as recommended in its instruction manual.

The power-supply cord at the unit Should be unplugged from the wall outlet
when it is to be unused for a long period of time.

Care should be taken so that obiects do not tell, and liquids are not spilled,
into the enclosure through any openings.

This unit should be serviced by qualilied service personnel when:
The power cord or the plug has been damaged; or

Objects have fallen, or liquid has been spilled. into the unit: or
The unit has been exposed to rain, or liquids of any kind; or
The unit does not appear to operate normally, or exhibits a
marked change in performance; or

The device has been dropped. or the enclosure damaged.

n pow?

DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

POUR PREVENIR LES CHOCS ELECTRIOUES NE PAS UTILISER
CEI II: I'ICHE POLARISEE AVEC UN PROLONGATEUI'I, UNE PRISE
DE COURANT 0U UNE AUTRE $ORT|E DE COURANT, SAUF SI LES
LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSEFI AU—
CUNE PARTIE A DECOUVERT.

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG
WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UN-
LESS IHI: BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.

CAUTION
POWER LINES
Any outdoor antenna must be located away from all power lines.

OUTDOOR ANTENNA GROUNDING

ll an outside antenna is connected to your tuner or tunerrpveamplitior, be
sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges. Section 810 oi the
National Electrical Code, ANSI/NFPA No. 70-1934. provides information with
respect to proper grounding oi the mast and supporting structure, grounding
oi the leadAin wire to an antenna discharge unit, size at grounding
conductors, location at antenna discharge unit, connection to grounding
electrodes. and requirements tor the grounding electrode.

a. Use No.10 AWG (5.3 mm“) copper, No.8 AWG (8.4 mm!) aluminum,
No.17 AWG (1.0 mm’) copper-clad steel or bronze wire, or larger. as a
ground wire.

D. Secure antenna luau-in and ground wires to house with stand-o"
insulators spaced from 4-6 test (1 .22-1 .83 in) apart,

c. Mount antenna discharge unit as close as possible to where lead—in
enters house.

d. Use jumper wire not smaller than No.6 AWG (13.3 mm’) copper, or the
equivalent. when a separate antenna-grounding electrode is used. See NEC
Section 810-21 (i).

EXAMPLE OF ANTENNA GHOUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
CWTAINED IN ARTICLE 610 - RADIO AND TELEVISION EQUIPMENT.


POWER LINES

SYANDOFF
INSULATORS, b

MAST

SERVICE
ENTRANCE
EQUIPMENT

ANTENNA
LEAD-IN WIRE

To EXTERNAL ANTENNA
TERMINALS oF RADIO RECEIVER
POWER SERVICE GHOUNDING

ELECTRODE SYSTEM
(9. 9. Interior metal mm pipe)

GROUND WIRE. 3,!)

GROUND CLAMPS
mnninn JUMPER. d
OPTIONAL ANTENNA GROUNDING

ELECTRODE DRIVEN B FEET (2.44 M) INTO

THE EARTH IF REQUIRED BV LOCAL
CODES. SEE NEC SECTION BIO-2| (II

NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installers attention to
Article 820-22 ot the National Electrical Code that provides guidelines tor
proper grounding and. in particular, specifies that ma cable ground shall be
connected to the grounding system at the building, as close to the point of
cable entry as practical.

Page 3

INTRODUCTION

Congratulations on your decision to purchase the ADCOM GTP—350 Stereo Tuner/Preamplifier. You've made a
wise Choice that will reward you with years of enjoyment.

The GTP~350 is ADCOM’s most affordable tuner/preamplifier. It combines flexibility. ease of use and ADCOM’s
almost legendary sound quality The tuner section uses superbly accurate quartz synthesizer technology for
excellent FM and AM reception The preamplifier section derives extensive sonic benefits from ADCOM'S exclusive
Class A biased linear amplifiers and proprietary circuit topology,

The GTF~350 has been engineered as an ideal match for an ADCOM high current power amplifier and allows you
to custom tailor a music system to your particular requirements

Enjoy your music ~ and thank you!
