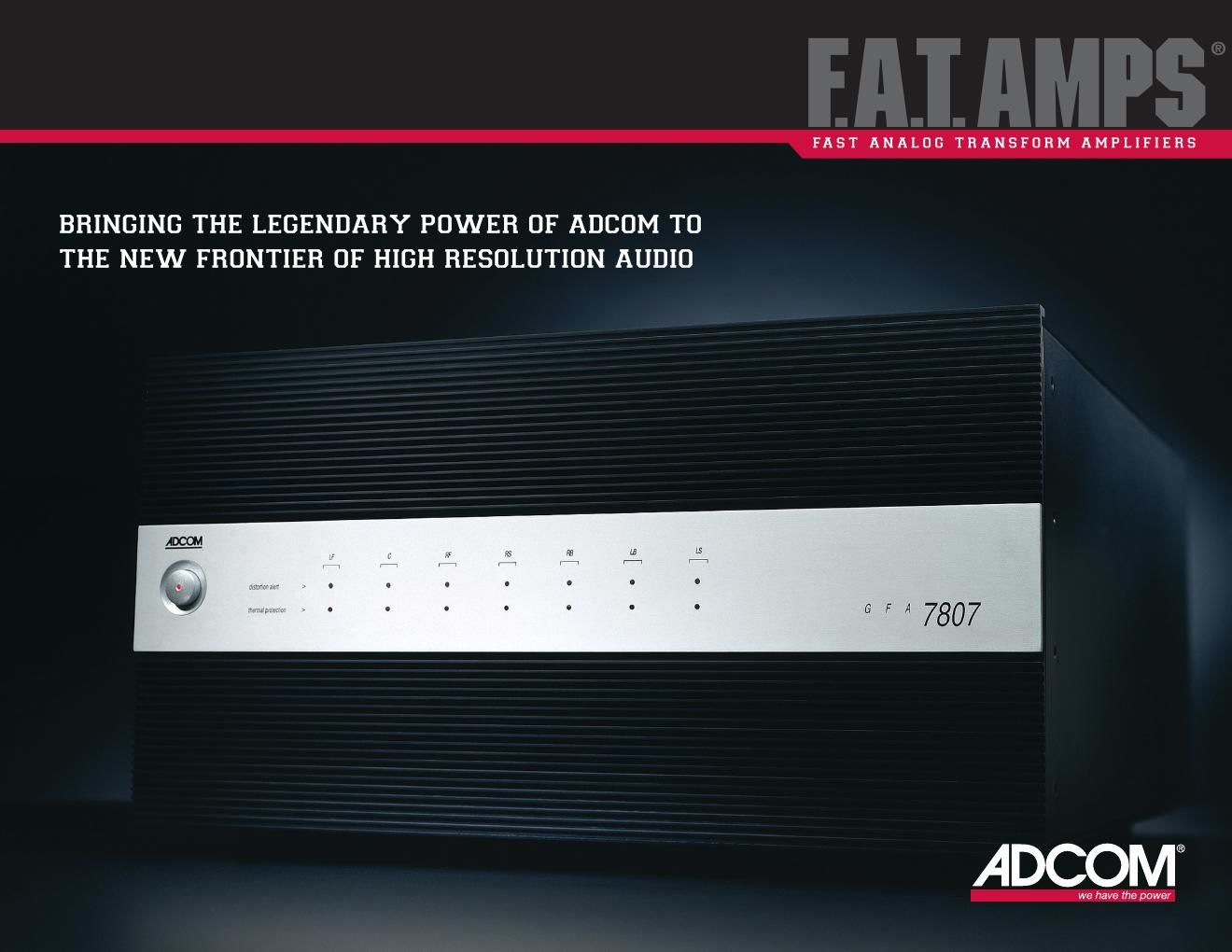

adcom gfa 7807 brochure

Extracted text from adcom gfa 7807 brochure (Ocr-read)


Page 1

high resolution audio raises the bar ! Now, audio playback can be better than ever before! DVD-Audio and SACD high-resolution formats provide an unprecedented level of precision to audio playback. These new formats have up to five times the frequency bandwidth of conventional CDs. The dynamic range is an incredible 144 dB, which is 48dB more than conventional CD.And bothformats support multi-channel play- back so you can enjoy the amazing immersion that a multi-channel audio system can provide. can your old audio system deliver the promised land of high resolution ? In the old low-resolution days, amplifier design was easier. Creating an amp was a straightforward design process using tried and true techniques that had not changed much in many years. But if you are going to design a power amplifier that can produce very high output levels and also amplify signals over a very wide frequency range, you have to move fast. To design an amplifier circuit to be fast and accurate, we needed to use a new design approach. f.a.t. amps to the rescue ! The heart of F.A.T. technology is our Power-Rig circuit topology which pro- vides incredible transient response. When combined with our huge monoblock power supplies, the massive power reserves provided by the banks of power supply capacitance give you Fast Analog Transform (F.A.T.) technology. What you get is wide dynamic range and broad frequency response.The Result? Cutting-edge power amplifiers designed to maximize the performance of the newest high resolutionaudio formats. Listen for yourself and experience what a F.A.T. amp can do for your audio or home theater system. And remember: power never becomes obsolete. L et-™s face it. In the world of audio, loudspeakers are a necessary evil. Until some mad scientist develops the direct neural tap, we will always need to listen to music as sound waves that travel through the air. But why are loudspeakers evil? Because speakers are power-hungry beasts that waste tons of energy, especially the smaller, less efficient mini-monitors so popular today. But fear not. ADCOM power amplifiers can slay the evil loudspeaker beast. ADCOM power amplifiers have always been designed with a large capacity of output transistors mounted to efficient heat sinks. We have always designed huge torriodial power transformers with thousands of micro-Farads of power supply capacitance to make sure your power amp has the reserves and wide dynamic range your evil power-sucking speakers crave. > fast analog transform technology > power rig circuit topology > massive torriodial transformers > huge reservoir of power supply capacitance power never becomes obsolete hear all the subtleties of the sound track with these audiophile power amplifiers. GFA-7807 channels: 7 power per channel:300 watts power bandwidth:10Hz-100KHz . dimensions chassis: 8 3/4-x17- x 19 3/4- dimensions overall: 9 1/2-x17- x 20 3/4- unit weight: 125 lbs. finish: black w/silver stripe GFA-7805 channels: 5 power per channel:300 watts power bandwidth:10Hz-100KHz . dimensions chassis: 8 3/4-x17- x 19 3/4- dimensions overall: 9 1/2-x17- x 20 3/4- unit weight: 95 lbs. finish: black w/silver stripe GFA-7700 channels: 5 power per channel:175 watts power bandwidth:10Hz-100KHz . dimensions chassis: 7- x 17- x 14- dimensions overall: 7 1/4-x17- x 15- unit weight: 56 lbs. finish: black GFA-7607 channels: 7 power per channel:125 watts power bandwidth:10Hz-100KHz . dimensions chassis: 5 1/4-x17- x 15 1/2- dimensions overall: 6- x 17- x 161/2- unit weight: 48 lbs. finish: black w/silver stripe GFA-7605 channels: 5 power per channel:125 watts power bandwidth:10Hz-100KHz . dimensions chassis: 5 1/4-x17- x 15 1/2- dimensions overall: 6- x 17- x 161/2- unit weight: 42 lbs. finish: black or black w/silver stripe adcom is a division of klein technology group, llc 8551 east anderson drive, suite 105 scottsdale, arizona 85255 ph: 480.607.2277 fax: 480.348.9876 www.adcom.com F . A .T . AMPS fast analog transform amplifiers ยฎ
