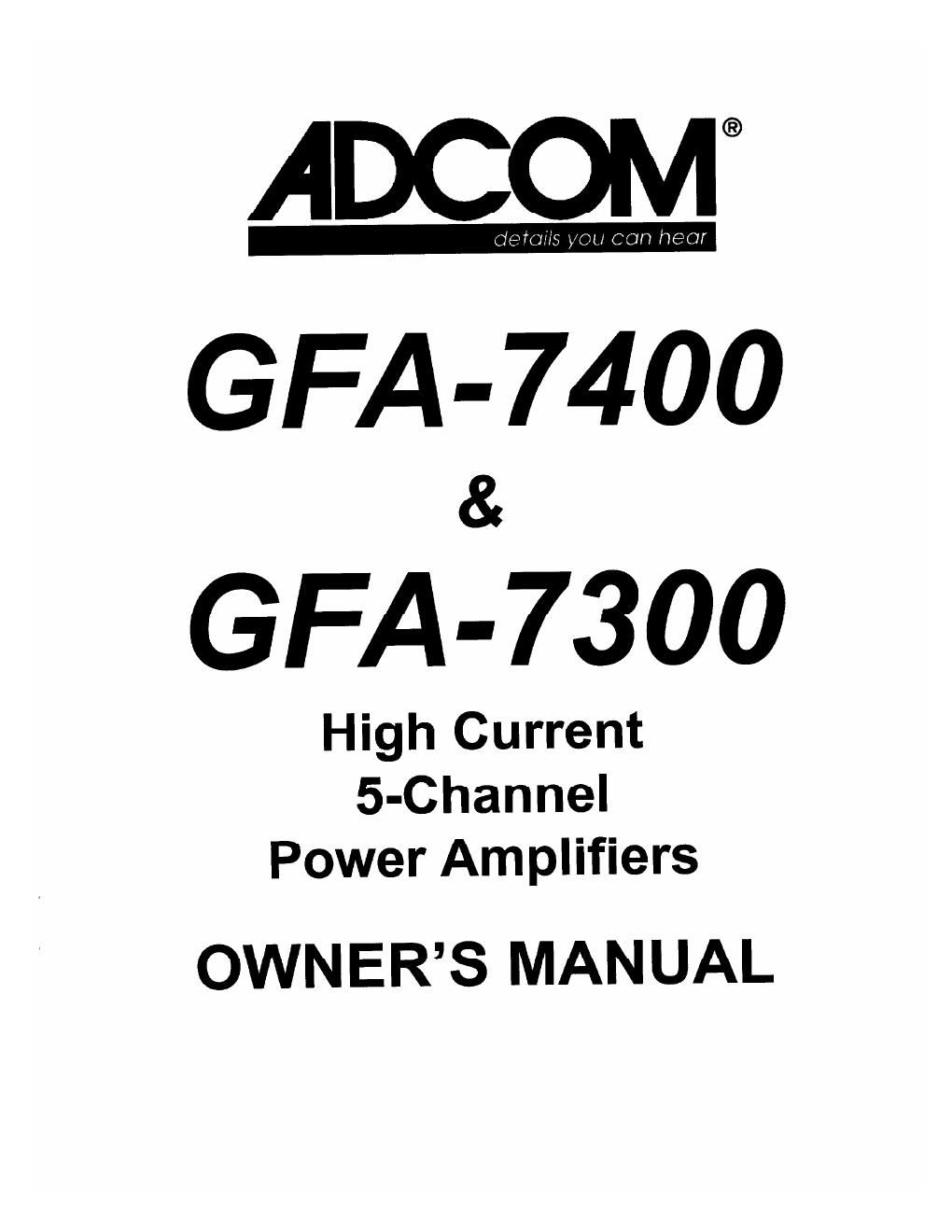

Adcom gfa 7300 7400 owners manual

This is the 19 pages manual for adcom gfa 7300 7400 owners manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 19
left right
adcom gfa 7300 7400 owners manual

Extracted text from adcom gfa 7300 7400 owners manual (Ocr-read)


Page 2

THE FOLLOWING PRECAUTIONS AND SAFETY INSTRUCTIONS
ARE REQUIREMENTS OF UL AND CSA SAFETY REGULATIONS

Warning: To reduce the risk of tire or electric shock. do not expose
this unit to rain or moisture.

RISK OF ELECTRIC SHOCK '
DO NOT OPEN .

>

AVIS. RISOUE DE CHOC ELECTRIQUE-NE PAS OUVFIIFI

The graphic symbol o1 a lightning flash With an arrow
pornt Within a triangle srgnlfles that there Is dangerous
voltage Within the unit and It poses a hazard to anyone
removmg the cover to gain access to the interior or the
unit Only qualified service personnel should make
any such attempt.

The oraohic symbol of an exclamation point Within an
equilateral triangle warns a user at the demos that it Is
necessary to reler to the instruction manual and its
warnings for proper operation oi the unit

Do not place this unit on an unstable cart, stand, tripod.
bracket, or table The unit may fall, causrng serious
injury to a child or adult, and serious damage to the
unit Use only With a cart, stand, tripod, bracket, ortable
recommended by the manulacturer. or sold With the
unit Any mounting of the deVice should follow the man-
utaclurer-s instructions, and should use a mounting ac-
cessory recommended by the manufacturer

®9$

Read all the safety and operating Instructions belore connecting or using
this unit

Retain this notice and the owner's manual for future reference
All warnings on the unit and in its operating instructions should be adheredto

All operating and use instructions should be lollowed

Do not use this unit near water, for example. near a bathtub. washbowl.
kitchen Sink. laundry tub. In a wet basement. or near a swrmming pool

The unit should be installed so that Its location or posrtion does not interfere
With Its proper ventilation l-or example. It should not be situated on a bed,
sofa, rug. or Similar surface that may block the ventilation Openings. or
placed in a built-in Installation, such as bookcase or cabinet, that may
Impede the flow of air through Its ventilation openings

The unit should be Situated away from heat sources such as radiators. heat
registers. stoves, or otherdewces (including amplifiers) that produce heat

The unit should be connected to a power-supply outlet only 01 the voltage
and frequency marked on its rear panel

The power-supply card should be routed so that it Is not likely to be walked
on or pinched. espeCIally near the plug, convenience receptacles, or where
the cord exits lrom the unit

Clean unit only as recommended In Its Instruction manual

The power-supply cord of the unit should be unplugged from the wall outlet
when it is to be unused tor a long period 01 time

Care should be taken so that objects do not fall, and liquids are not spilled,
into the enclosure through any openings

This unit should be seNlced by qualified seNloe personnel when
The power cord or the plug has been damaged. or

Obiects have lallen, or liquid has been spilled, Into the unit, or
The unit has been exposed to rain, or liquids of any kind, oi
The unit does not appear to operate normally, or exhibits a
marked change In performance, or

The devtce has been dropped, or the enclosure damaged

"1 0003)

DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ATTENTION

POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN PROLONG/\TEUR, UNE PRISE
DE COURANT 0U UNE AUTRE SORTIE DE COURANT, SAUF SI LES
LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AU<
CUNE PARTIE A DECOUVERT

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG
WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UN-
LESS THE BLADES CAN BE FULLY lNSEFiTED TO PREVENT BLADE
EXPOSURE

CAUTION
POWER LINES
Any outdoor antenna must be located away from all power lines.

OUTDOOR ANTENNA GROUNDING

ll an outside antenna IO oonnaotod to your tunor or tunarrpreamplifier, be
sure the antenna system Is grounded so as to proVIde some protection
against voltage surges and built-up static charges. Section 810 of the
National Electrical Code. ANSI/NFPA No, 70-1984. provides intormation with
respect to proper grounding o! the mast and supporting structure, grounding
of the lead-In wire to an antenna discharge unit, size oi grounding
conductors, location at antenna discharge unit, connection to grounding
electrodes. and requirements lor the grounding electrode
a Use No.10 AWG (5.3 mm-) copper, N08 AWG (6,4 mm-) aluminum,
No.17 AWG (1 0 mm!) copper-clad steel or bronze Wire. or larger. as a
ground wire.

17. Secure antenna lead in and ground wire: to house wrth stand 0"

insulators spaced lrom 4-6 feet (1 22-1 83 m) apart.

o. Mount antenna discharge unit as close as pOSSIbIe to where lead-in
enters house.

d. Use jumper Wire not smaller than No.6 AWG (13.3 mm-) copper, or the
equrvalent, when a separate antenna-grounding electrode is used. See NEC
Section 310-21 (i).

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL OODE INSTRUCTIONS
CONTAINED IN ARTICLE 610 - RADIO AND TELEVISION EQUIPMENT

POWER LINES

\
GROUND CLAMP \

STANDOTT
INSULATORS. b

MAST

SERVICE ANTENNA
ENTRANCE LEAD-IN WIRE
EQUIPMENT

ANTENNA
DI$HARGE
UNIT, c

TO EXTERNAL ANTENNA
mutt... s n: RAnIn mam
POWER sEthcE caou~omc
ELECTRODE system

(8 9 "Reno! metal water pipe)

GROUND WIRE. a.b

GROUND CLAMPS
BONDING JUMPER. d
OPTIONAL ANTENNA GROUNDING

ELECTRODE DRIVEN B FEET (2 44 M) INTO

THE EARTH IF REQUIRED BY LOCAL
cones sea NEC SECTION810-21 ll-)

NOTE TO CATV SYSTEM INSTALLER

This reminder is promoted to call the CATV system Installer's attention to
Article 520-22 of the National Electrical Code that prowdes gwdelines for
proper grounding and. in particular, specifies that tho cable ground shall be
connected to the grounding system of the building. as close to the pomt ol
cable entry as practical
