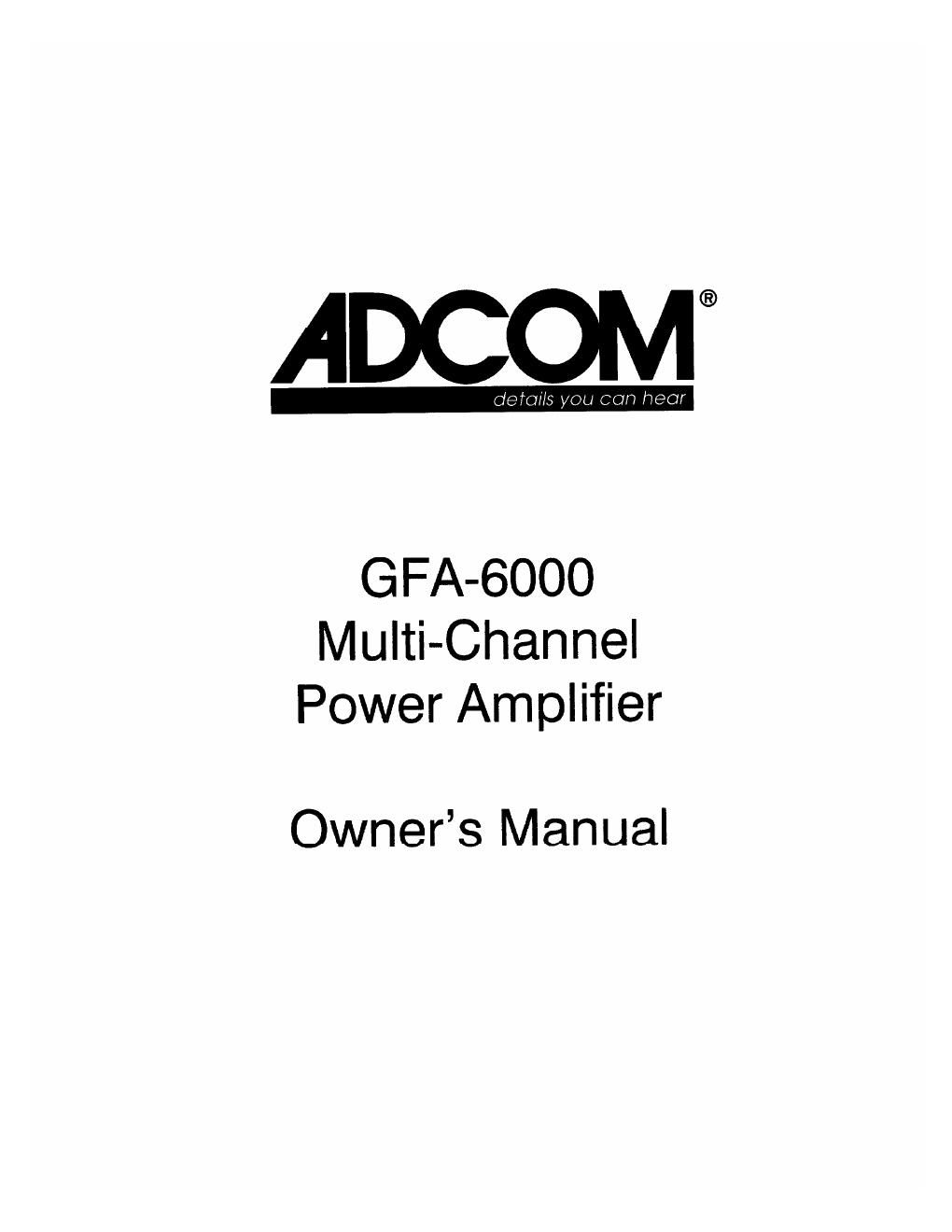

GFA-6000
Multi-Channel
Power Amplifier

Owner-s Manual

Page 2

THE FOLLOWING PRECAUTIONS AND SAFETY INSTRUCTIONS
ARE REQUIREMENTS OF UL AND CSA SAFETY REGULATIONS

Warning: To reduce the risk of fire or electric shock, do not expose
this unit to rain or moisture.

RISK OF ELECTRIC SHOCK '
DO NOT OPEN .

>

AVIS RISOUE DE CHOC ELECTRIOUE-NE PAS OUVRIR

The graphic symbol at a lightning flash With an arrow
pelnt Within a mangle signltles that there is dangerous
voltage Within the unit and it poses a hazard to anyone
removmg the cover io gain access to the interior of the
unit Only qualified service personnel should make
any such attempt.

The graphic symbol ol an exclamation paint Within an
equilateral mangle warns a user at the device that it is
necessary to reler to the instruction manual and Its
warnings tor proper operation at the unit

Do not place this unit on an unstable cart, stand, tripod,
bracket, or table The unit may fall, causmg serious
inlury to a child or adult, and serious damage to the
unit Use only With a can. stand. tripod, bracket, or table
recommended by the manufacturer, or sold With the
unit Any mounting of the devroe should lollow the man-
ufacturer-s instructions, and should use a mounting ac~
cessory recommended by the manufacturer

@EE

Head all the salary and operating instructions before connecting or usmg
this unit

Fletain this notice and the owner-s manual lor future relerence
All warnings on the unit and in its operating instructions should be adhered to
All operating and use instructions should be followed

Do not use this unit near water, for example, near a bathtub. washbowl,
kitchen sink, laundry tub. in a wet basement, or near a SWImmlng pool

The unit should be installed so that its location or position does not intertere
wnn IIS proper ventilation For example. It should not be Situaieo on a bed.
sofa, rug, or Similar surlace that may block the ventilation openings, or
placed in a built-in installation, such as bookcase or cabinet, that may
impede the llow ol air through its ventilation openings

The unit should be Situated away from heat sources such as radiators. heat
registers. stoves, orother devrces (including amplifiers) that produce heat

The unit should be connected to a power-supply outlet only of the voltage
and frequency marked on its rear panel

The power-supply card should be routed so that it is not likely to be walked
on or pinched, espeCIaIly near the plug, convenience receptacles. or where
the curd exits haul the uilll

Clean unit only as recommended in its instruction manual

The nanr-siipply mm at the umi should he unplugged hunt the wall outlet
when it is to be unused for a long period of time

Care should be taken sothat ODJECIS do not tall, and liquids are not spilled.
into the enclosure through any openings

This unit should be sewlced by quelilled sewice personnel when

A The power cord or the plug has been damaged, or

B Objects have Iallen, or liquid has been spilled, into the unit, or

C The unit has been exposed to rain, or liquids all any kind, or

D The unit does not appear to operate normally. or exhibits a
marked change in perlormance, or

E The dance has been dropped. or the enclosure damaged

DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF.
REFER SERVICING T0 QUALIFIED SERVICE PERSONNEL.

ATTENTION

POUR PREVENIFI LES cHocs ELECTRIQUES NE PAS UTILISEFI
CETTE FICHE POLARISEE AVEC UN PROLONGATEUR, UNE PRISE
DE COURANT ou UNE AUTFtE .SORT'F- DE COURANT, SAUF Sl LES
LAMES PEUVENT ETRE INSEFtEES A FOND SANS EN LAISSER AU-
CUNE PARTIE A DECOUVERT

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG
WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UN-
LESS THE BLADES CAN BE FULLY INSEnTED TO PnEVENT BLADE
EXPOSURE

CAUTION
POWER LINES
Any outdoor antenna must be located away trom all power lines.

OUTDOOR ANTENNA GROUNDING

It on outside antenna is connected to your tuner or tuner preamplifier, be
sure the antenna system Is grounded so as to prowde some protection
against voltage surges and built-up static charges. Section 610 of the
National Electrical Code, ANSI/NFPA No. 70-1984, provides intormation with
respectto proper grounding oi the mast and supponing structure. grounding
of the lead-in wire to an antenna discharge unit. size 01 grounding
conductors, location of antenna discharge unit. connection to grounding
electrodes. and requirements lor the grounding electrode.

a Use No.10 AWG (5.3 mm') copper. No.8 AWG (8.4 mm) aluminum.
No.17 AWG (1.0 mm-) copper-clad steel or bronze wire. or larger. as a
ground wire.

b Secure antenna leadrln and ground wire: to house with standro"
insulators spaced trom 4-6 test (1 22-133 m) apart.

0. Mount antenna discharge unit as close as possible to where lead-in
enters house.

d. Use Jumper wire not smaller than No.6 AWG (13 3 mm-) copper, or the
equivalent, when a separate antenna-grounding electrode is used. See NEC
Sectton 810»21 (j).

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
CWTAINED IN ARTICLE 810 - RADIO AND TELEVISION EQUIPMENT

POWER LINES

SERVICE ENTRANCE
. . . STANDOFF
L-Uivuui. lune INSULATORS, b

MAST
u
SERVICE
ENTRANCE
EQUIPMENT

ANTENNA
LEAD-IN WIRE

ANTENNA
DISCHARGE
UNIT, c

To EXTEFNAL ANTENNA
I'EfiuiuALs or male usual-1s:
POWER SERVICE GROUNDING

ELECTRODE SVST EM
(9 o intenol meta water pipe)

GROUND WIRE, ml:

GROUND CLAMPS
BONDING JUMPER d
OPTIONAL AN'TEMIA GROUmING

ELECTRODE DRIVEN 5 FEET (244 M] INTO

1-1le EARTH IF nsoulnsn av LOCAL
cones SEE use SEch 3102! (l)

NOTE TO CATV SYSTEM INSTALLER

This reminder is prowded to call the CATV system installers attention to
Article 820-22 ol the National Electrical Code that provtdes gwdellnes (or
proper grounding and. in particular. specifies that the cable ground shall be
connected to the grounding system 01 the building, as close to the point at
cable entry as practical
