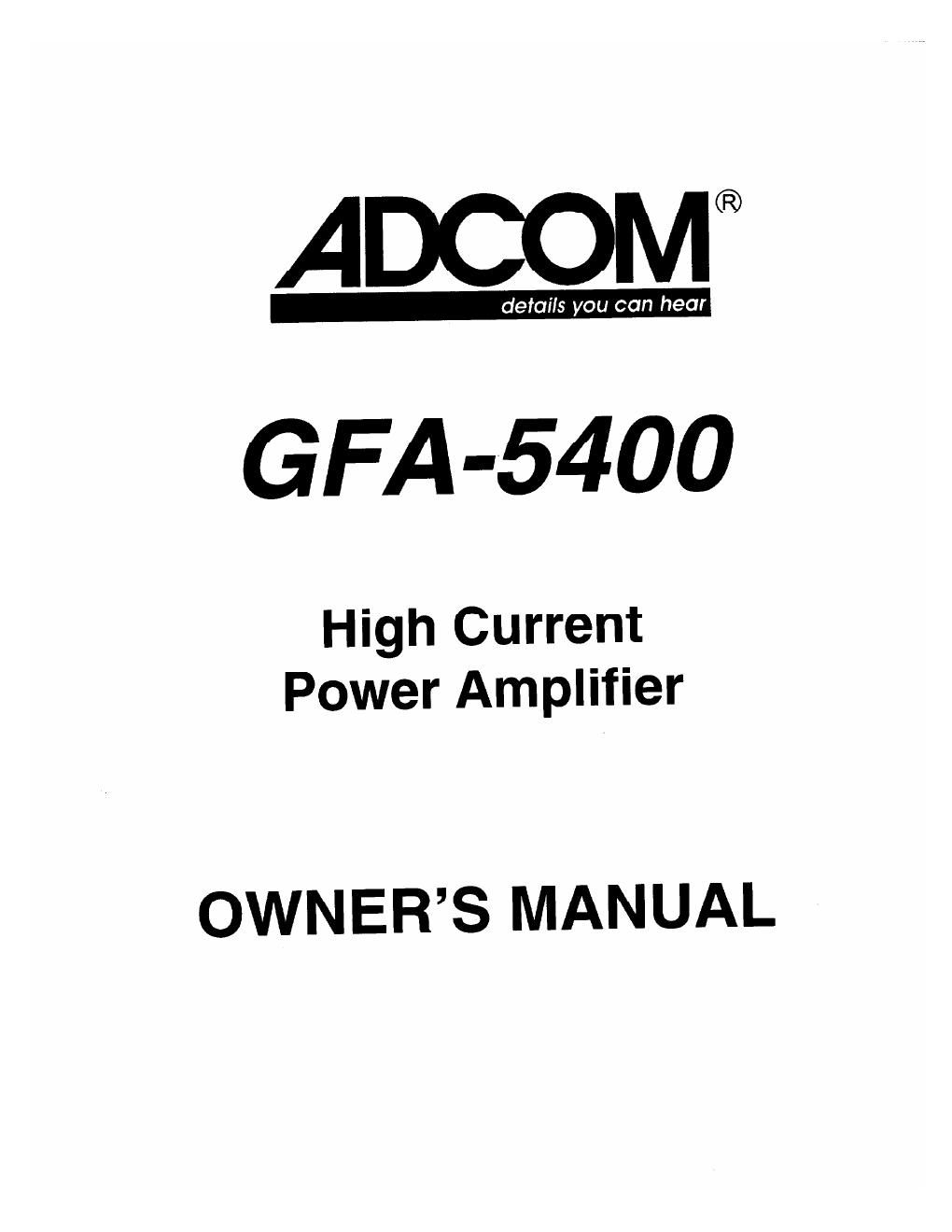

This is the 8 pages manual for adcom gfa 5400 owners manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to email@example.com.
THE FOLLOWING PRECAUTIONS AND SAFETY INSTRUCTIONS
ARE REQUIREMENTS OF UL AND CSA SAFETY REGULATIONS
Warning: To reduce the risk of fire or electrlc shock, do not expose
this unit to rain or moisture.
RISK OF ELECTRIC SHOCK '
DO NOT OPEN .
AVIS: FIISOUE DE CHOC ELECTRIQUENE PAS OUVRIR.
The graphic symbol of a lightning ﬂash with an arrow
pomt Within a triangle signifies that there Is dangerous
voltage wrthin the unit and It poses a hazard to anyone
removtng the cover to gain access to the interior of the
unlt.0nly qualiﬁed service personnel should matte
any such attempt.
Thg graphic symbol or an exclamation point within an
equliateral mangle warns a user oi the devrce that it is
necessary to refer to the instruction manual and Its
warnings lor proper operation of the unit
Do not place this unit on an unstable cart. stand. tripod.
bracket. or table. The unit may lall. causing serious
Injury to a child or adult. and serious damage to the
unit Use only With a can. stand, tripod. bracket. or table
recommended hy the manufacturer, or said With the
unit. Any mounting oi the device should follow the man-
ufacturer's instructions. and should use a mounting ac-
cessory recommended by the manufacturer.
Read all the safety and operating instructions before connecting or USIng
Retain this notice and the owner's manual lor future reference.
All warnings on the unit and in its operating instructions should be adhered to
All operating and use instructions should be tollowed.
Do not use this unit near water: for example. near a bathtub, washbowl.
kitchen sink. laundry tub, in a wet basement, or near a swtmmtng pool.
The unit should be installed so that Its location or position does not Interfere
with its proper ventilation For example. it should not be situated on a bed,
sofa, rug. or similar surtace that may block the ventilation openings; or
placed in a built-in Installation. such as bookcase or cabinet. that may
impede the llow of air through its ventilation openings.
The unit should be Situated away from heat sources such as radiators, heat
registers, stoves, or other devtces (including amplltters) that produce heat.
The unit should be connected to a power-supply outlet only of the voltage
and frequency marked on its rear panel.
The power-supply cord should be routed so that it is not likely to be walked
on or pinched, espectally near the plug. convenience receptacles. or where
the cord exrts from the unit.
Clean unit only as recommended In IIS instruction manual
The powersupply cord of the unit should be unplugged ltottt IIIE wall outlet
when it Is to be unused for a long period of time.
Care should be taken so that objects do not tall. and liquids are not spilled.
into the enclosure through any opening:
This unit should be serviced by qualified service personnel when:
The power cord or the plug has been damaged; or
Objects have fallen, or liquid has been spilled. into the unit: Or
The unit has been eAposed to rain, or liquids of any kind, or
The unit does not appear to operate normally, or exhibits a
marked change In pertormance: or
The devrce has been dropped. or the enclosure damaged
DO NOT AI'IEMPT SERVICING OF THIS UNIT YOURSELF.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
POUR PREVENIR LES QHOCS ELECTRIOUES NE PAS UTILISER
CETTE FICHE FOLAFIISEE AVEC UN PFIOLONGATEUR. UNC PRISE
DE COURANT OU UNE AUTRE SORTIE DE COURANT. SAUF SI LES
LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AU-
CUNE PARTIE A DECOUVERT
TO PREVENT ELECTRIC SHOCK DO NOT USE THlS POLARIZED PLUG
WITH AN EXTENSiON CORD, RECEPTACLE OR OTHER OUTLET UNr
LESS THE BLADES CAN BE FULLY INSEHTED TO PREVENT BLADE
Any outdoor antenna must be located away from all power lines.
OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to your tuna ut turret-preamplifier. be
sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges. Section 810 of the
National Electrical Code. ANSI/NFPA No. 70-1984. provides information with
respect to proper grounding ot the mast and supporting structure. grounding
of the lead-in wire to an antenna discharge unit, size at grounding
conductors. location of antenna discharge unlt. connection to grounding
electrodes, and requiremems for the grounding electrode.
a. Use No.10 AWG (5.3 mm) copper. No.8 AWG (8.4 mm) aluminum.
No.17 AWG (1.0 mm) copperclad steel or bronze wire. or larger. as a
0. Secure antenna lead-In and ground wires to house with stand
c. Mount antenna discharge unit as close as possible to where lead-in
d. Use jumper wire not smaller than No.6 AWG (13.3 mm) copper. or the
equivalent. when a separate antenna-grounding electrode is used. See NEC
Section 810-21 (1).
EXAMPLE OF ANTENNA GROUNDWG AS PER NATIONAL ELECTRICAL CODE lNSTRUCTIONS
WTAIED IN ARTICLE SiO - RADIO AND TELEVISION EQUIPMENT
ENTRANCE LEAD-tN WIRE
To EXTERNAL ANTENNA
rut-mm: or harm Human
POWER SERVICE GROUNDING
(o. 0. interior metal water poo)
GROUND WIRE. Lb
oonotne aquen. u
OPTIONAL ANTEW GROUNDING
ELECTRODE DRIVEN I FEET (244 Ml INTO
THE EARTH IF REQUIRED BY LOCAL
CODES SEE NEC SECTION @1021 (ll
NOTE TO CATV SYSTEM INSTALLER
This reminder is provtded to call the CATV system installers attention to
Article 820-22 of the National Electrical Code that provrdes guidelines for
proper grounding and, In particular. specities that the cable ground shall be
connected to the grounding system at the butlding. as close to the potnt oi
cable entry as practical.
