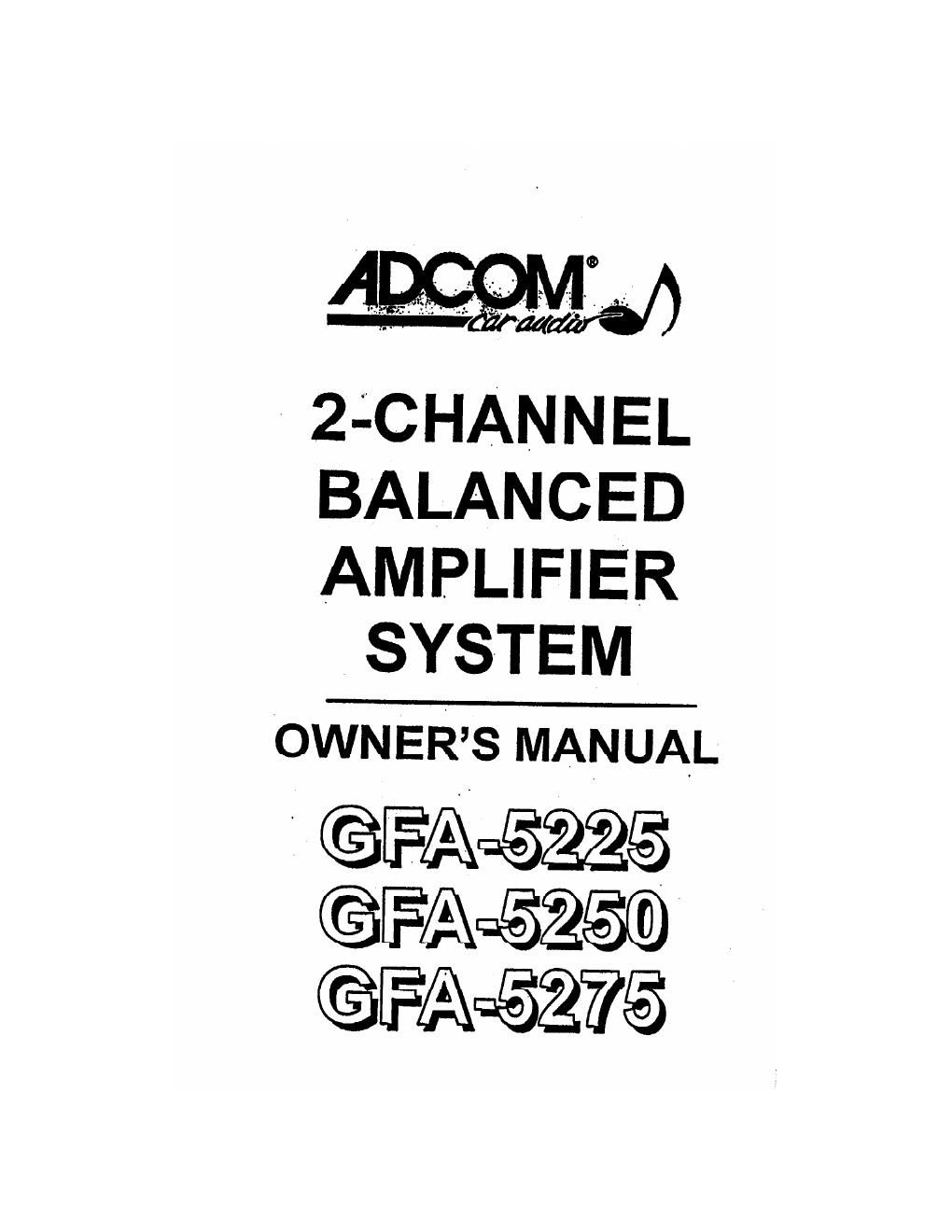

Adcom gfa 5275 owners manual

This is the 16 pages manual for adcom gfa 5275 owners manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 16
left right
adcom gfa 5275 owners manual

Extracted text from adcom gfa 5275 owners manual (Ocr-read)


Page 2

IF YOU READ NOTHING ELSE, .
PLEASE READ THIS PAGE:

@ INSTALLATION ADVISORY: Be sure to connect
the POWER(+) and GROUND(-) conectlyll Amplifiers
that are incorrectly connected are not oovered by the
warranty.

(i) INSTALLATION ADVISORY: it is possible for
clipped strands of wire to enter the amplifier through
the Free-FIow perforated sleeve. Be sure to clip wires
well away from the amplifier to avoid this possibility '

(5) INSTALLATION , ADVISORY: The GFI-5200
Balanced Llne driver needs to be placed as close to
the source unit as possible. The complete -Balanced
Line System- will operate properly ONLY when the
GFI~5200 is Installed correctly.

Q OPERATION ADVISORY: Make sure the two
sensitivity controls on the amplifiers are set fully
clockwise. When matching the output of the source
unit with the input of the amplifier, adjust the level
controls on the GFl-5200 instead of the amplifier.

(9 OPERATION ADVISORY: Even though Adcom
amplifiers are capable of driving very low lmpedances.
it is recommended that the configuration not be lower
than 1,!) stereo, oranMono. This will ensure that you
receive optimum power and control. lowest distortion
and greatest reliability.

(5) OPERATION ADVISORY: If you are using this
amplifier with a GFI-4600 crossover. then please see
the -Connecting the GFI-4600" section on page 8. -
