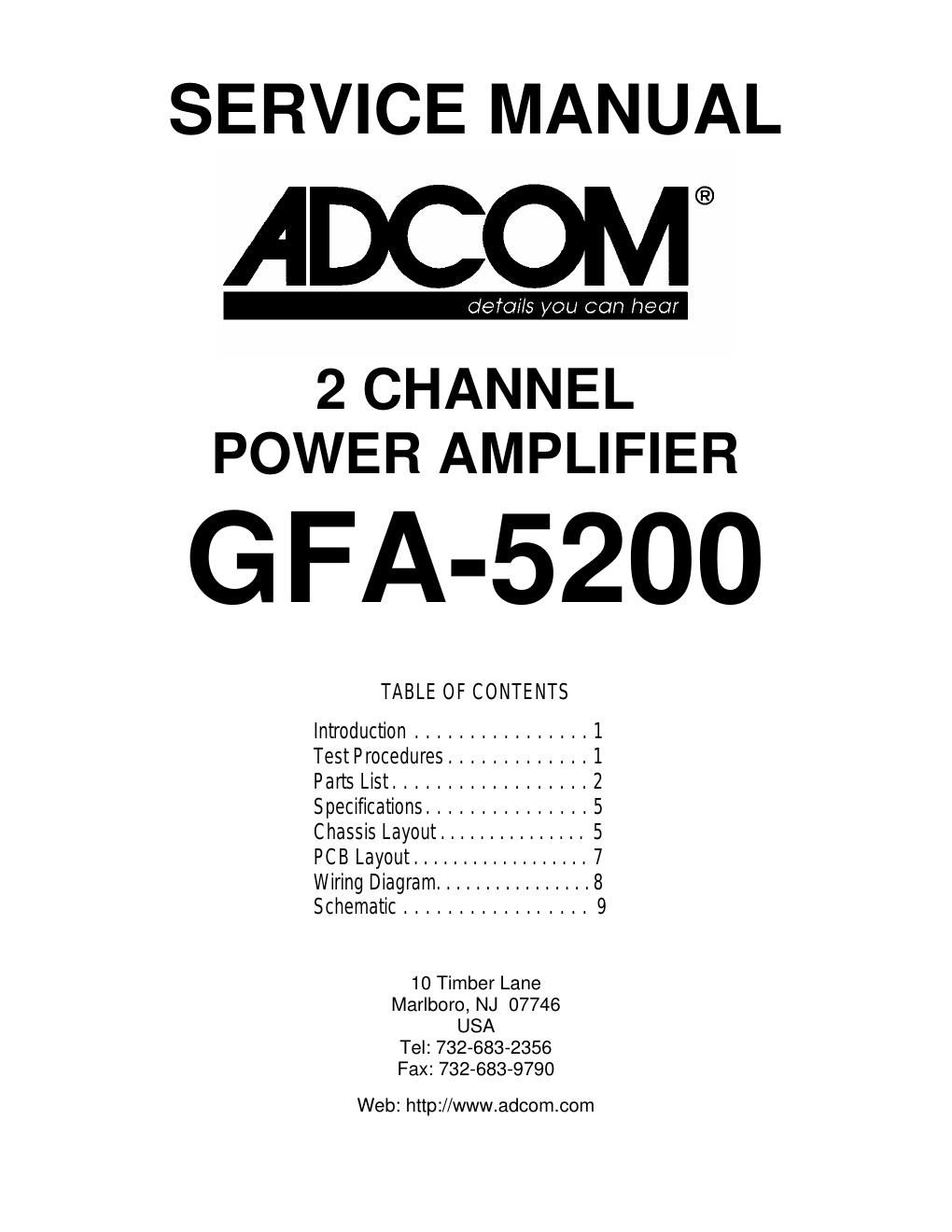

Page 1

SERVICE MANUAL

ADCOM®

details you can hear

2 CHANNEL
POWER AMPLIFIER

GFA-5200

TABLE OF CONTENTS

Introduction ................ 1
Test Procedures ............. 1
Parts List .................. 2
Specifications ............... 5
Chassis Layout ............... 5
PCB Layout .................. 7
Wiring Diagram ................ 8
Schematic ................. 9

1O Timber Lane
Marlboro, NJ 07746
USA
Tel: 732-683-2356
Fax: 732-683-9790

Web: http://www.adcom.com

Page 2

INTRODUCTION

This service manual is intended to assist trained and qualified technical personnel in verifying the
performance of, adjusting, and repairing the ADCOM GFA-5200 amplifier. The procedures described
here are not intended for persons unfamiliar with the appropriate safety and test procedures.

XII WARNING

THERE ARE POTENTIALLY LETHAL VOLTAGES WITHIN THE GFA-5200 AMPLIFIER WHICH WILL
BE ACCESSIBLE ONCE ITS TOP COVER IS REMOVED. Do NOT ATTEMPT FAMILIARIZATION,
INSPECTION, OR ANY PROCEDURE WHATSOEVER UNLESS You HAVE DISCONNECTED THE
GFA-5200 FROM THE WALL AC OUTLET OR OTHER SOURCE CF AC POWER AND THE POWER-
SUPPLY CAPACITORS ARE COMPLETELY DISCHARGED. THESE INSTRUCTIONS ARE
PROVIDED FOR USE ONLY BY COMPETENT TECHNICAL PERSONNEL. DO NOT UNDERTAKE
ANY SERVICE PROCEDURES IN THE GFA-5200 UNLESS YOU ARE TECHNICALLY QUALIFIED
TO DO so.

TEST PROCEDURES

. All tests are performed with a 115V, low-distortion (less than 2% THD), AC-power source, 8-ohm
resistive load (except slew rate), and a signal source of not more than 600 ohms.

An 80kHz low-pass filter is employed during THD distortion measurements.

Signal-to»noise measurements are -A- weighted.

Damping factor is measured by comparing the 1 watt output voltage with and without an 8 ohm load.
Slew rate is measured with an inductive load, and is derived with a dual-time-based oscilloscope
reading the slope of a full power 5kHz square wave. DO NOT OPERATE THE AMPLIFIER AT
FULL-POWER SINE WAVE ABOVE 22kHz OR FULL-POWER SQUARE WAVE ABOVE 5kHz.

IMPORTANT
BEFORE PROCEEDING WITH ADJUSTMENTS, MAKE SURE AMPLIFIER IS AT ROOM
TEMPERATURE.

CORRECT BIAS ADJUSTMENT IS CRITICAL TO THE PERFORMANCE OF THIS AMPLIFIER.
MAXIMUM OUTPUT POWER, MINIMUM THD AND HEAT DISSIPATION ARE AFFECTED BY THE
BIAS SETTING AND MUST BE CORRECT TO MAINTAIN THE SONIC QUALITY AND LONGEVITY
OF THE AMPLIFIER.

BIAS ALIGNMENT

Prior to performing BIAS ALIGNMENT turn unit on and allow to idle with rated output (8 ohm) for
approximately 5 MINUTES before attempting adjustments

Step Coupling Adjust Adjust For
Plus Lead Minus Lead
1 R035 R035 R038 DC Voltmeter
2 R135 R135 R138 reads 20mV
3 L SPKR + L SPKR - R039 DC Voltmeter
4 R SPKR + R SPKR - R139 reads 0mV

GFA-5300 SERVICE PARTS LIST
