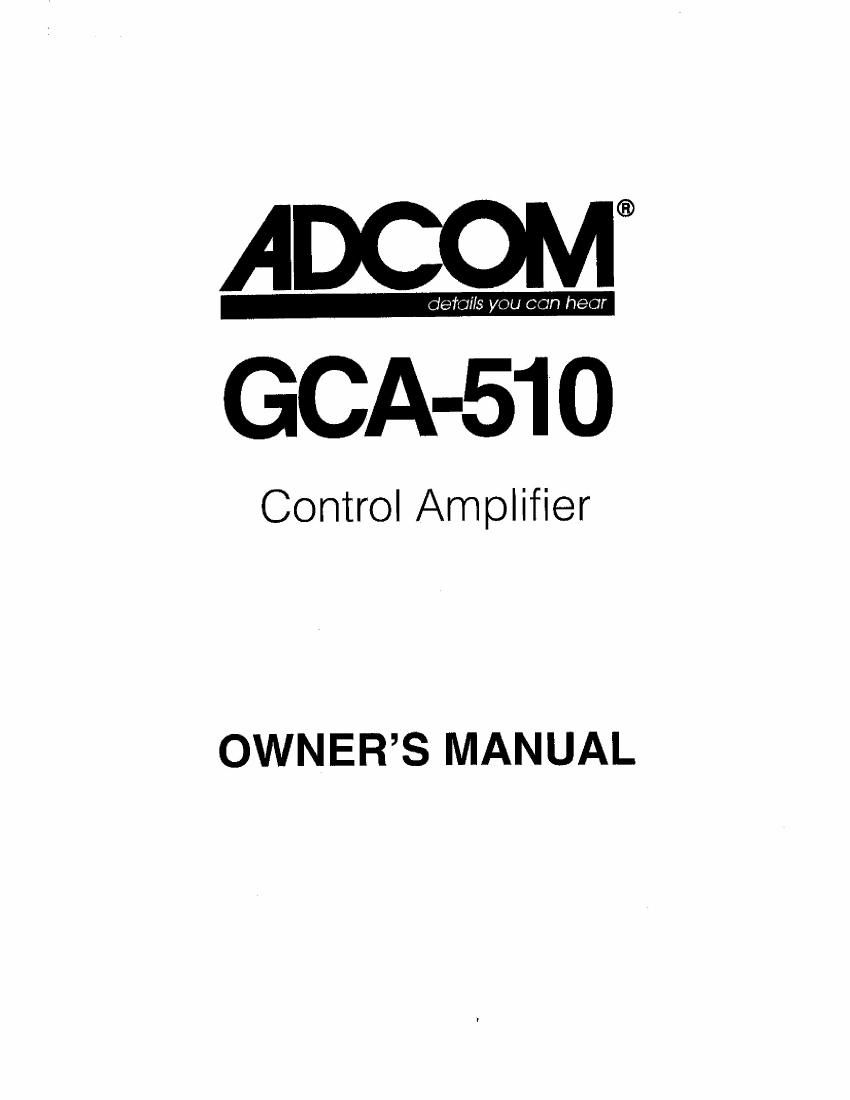

Adcom GCA 510 Owners Manual

Extracted text from Adcom GCA 510 Owners Manual (Ocr-read)


Page 2

THE FOLLOWING PRECAUTIONS AND SAFETY INSTRUCTIONS I
ARE REQUIREMENTS OF UL AND CSA SAFETY REGULATIONS

Warning: To reduce the risk of tire or electric shock, do not expose
this unit to rain or moisture.

RISK or ELECTRIC SHOCK '
Do NOT OPEN .

>

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVFIIFI.

The graphic symbol at a lightning flash with an arrow
point within a triangle signifies thatthere is dangerous
voltage within the unit and it poses a hazard to anyone
removing the cover to gain access to the interim of the
unit.0nly qualified service personnel should make
any such attempt.

The graphic symbol of an exclamation point within an
equilateral triangle warns a user of the device that it is
necessary to refer to the instruction manual and its
warnings for proper operation of the unit,

Do not place this unit on an unstable cart, stand, tripod,
bracket, or table. The unit may fall. causing serious
inlury to a child or adult, and serious damage to the
unit, Use only with a cart, stand. tripod, bracket, or table
recommended by the manufacturer, or sold with the
unit. Any mounting ol the device should tollow the man»
utacturer's instructions, and should use a mounting ac-
cessory recommended by the manufacturer.

@EE

Read ali the safety and operating instructions before connecting or using
this unit.

Retain this notice and the owner-s manual for future relerence
All warnings on the unit and in its operating instructions should be adhered to.
All operating and use instructions should be followed.

Do not use this unit near water; for example, near a bathtuh,_waahbowl.
kitchen sink. laundry tub, in a wet basement. or near a swimming pool.

The unit should be installed so that its location or posnion does not interfere
with its proper ventilation. For example, it should not be situated on a bed,
sofa, rug. or similar surface that may block the ventilation openings: or
placed in a built-in installation, such as bookcase or cabinet, that may
Impede the ilcw oi air through its ventilation openings.

The unit should be situated away from heat sources such as radiators, heat
registers, stoves, orother devices (including amplifiersithat produce heat.

The unit should be connected to a power-supply outlet only of the voltage
and frequency marked on its rear panel,

The power-supply cord should be routed so that It is not likely to be walked
on or pinched, especially near the plug, convenience receptacles. or where
' the cord exits from the unit.

Clean unit only as recommended in its instruction manual.

The power~supply cord of the unit should be unplugged from the wall outlet
when it is to be unused for a long period of time.

Care should be taken so that objects do not fail, and liquids are not spilled,
into the enclosure through any openings.

This unit should be serviced by qualified sen/Ice personnel when:
The power cord or the plug has been damaged; or

Objects have fallen, or liquid has been spilled, into the unit; or
The unit has been exposed to rain, or liquids of any kind: or
The unit does not appear to operate normally, or exhibits a
marked change in performance; or

The device has been dropped, or the enclosure damaged.

["1 .009-?

DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF.
REFER SERVICING T0 QUALIFIED SERVICE PERSONNEL.

ATTENTION

POUR PREVENIR LES cuocs ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN PROLONGATEUFI, UNE PRISE
DE COURANT ou uNE AUTRE sonTiE DE COURANT, SAUF SI LES
LAMEs F'EUVENT ETFIE INSEREES A FOND SANS EN LAISSER AU-
cuNE PARTIE A DECOUVERT.

CAUTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG
WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UN~
LESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.

CAUTION
POWER LINES
Any outdoor antenna must be located away from all power lines.

OUTDOOR ANTENNA GROUNDING

If an outside antenna is connected to your tuner or tuner-preamplifier, be
sure the antenna system is grounded so as to provide some protection
against voltage surges and built-up static charges. Section 810 oi the
National Electrical Code, ANSI/NFPA No. 70-1984, provides intormation with
respect to proper grounding of the mast and supporting structure. grounding
of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.

a. Use No.10 AWG (5.3 mm") copper. No.3 AWG (8,4 mm-) aluminum,
No.17 AWG {1.0 mm-) copper-clad steel or bronze wire, or larger, as a
ground wire.

in. Secure antenna lead-in and ground wires to house with stand-off
insulators spaced from 445 feet (1.224 .83 m) apart.

0. Mount antenna discharge unit as close as possible to where lead-in
enters house.

at. Use jumper wire not smaller than No.6 AWG (13.5 mm-) copper, or the
equivalent, when a separate antenna-grounding electrode is used. See NEC
Section 810-21 (1).

EXAMPLE OF ANTENNA GHOUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
CONTAINED IN ARTICLE BID - RADIO AND TELEVISION EQUIPMENT.

POWER LINES


\

GROUND CLAMP\

SERVICE ENTRANCE

GONDUCTORS STANDOFF

lNSULATOFiS, h

MAST
n

SERVICE

ANTENNA
ENTRMGE LEAD-IN WIRE
EQUIPMENT

ANTENNA
DISCHARGE
UNIT, c

To BtTERNAL ANTENNA
TERMINALS OF RADIO REOEIVER
POWER SERVICE GROUNDING '

ELECTRODE SYSTEM
(9. 9. interior metal water pipe]

GROUND WIRE, a,b

GROUND CLAMPS

BONDING JUMPER, o \

OPTDNAL ANTENNA GROUNUING
ELECTRODE DRIVEN 6 FEET (2.44 M) INTO
THE EARTH IF REQUIRED BY LOCAL
CODES. SEE N-EC SECTION SID-2| (I)

NOTE TO CATV SYSTEM INSTALLER

This reminder is provided to call the CATV system installer-s attention to
Article 320-22 of the National Electrical Code that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be-
connected to the grounding system of the building. as close to the point of
cable entry as practical.
