Adcom ACE 315 Owners Manual

Extracted text from Adcom ACE 315 Owners Manual (Ocr-read)

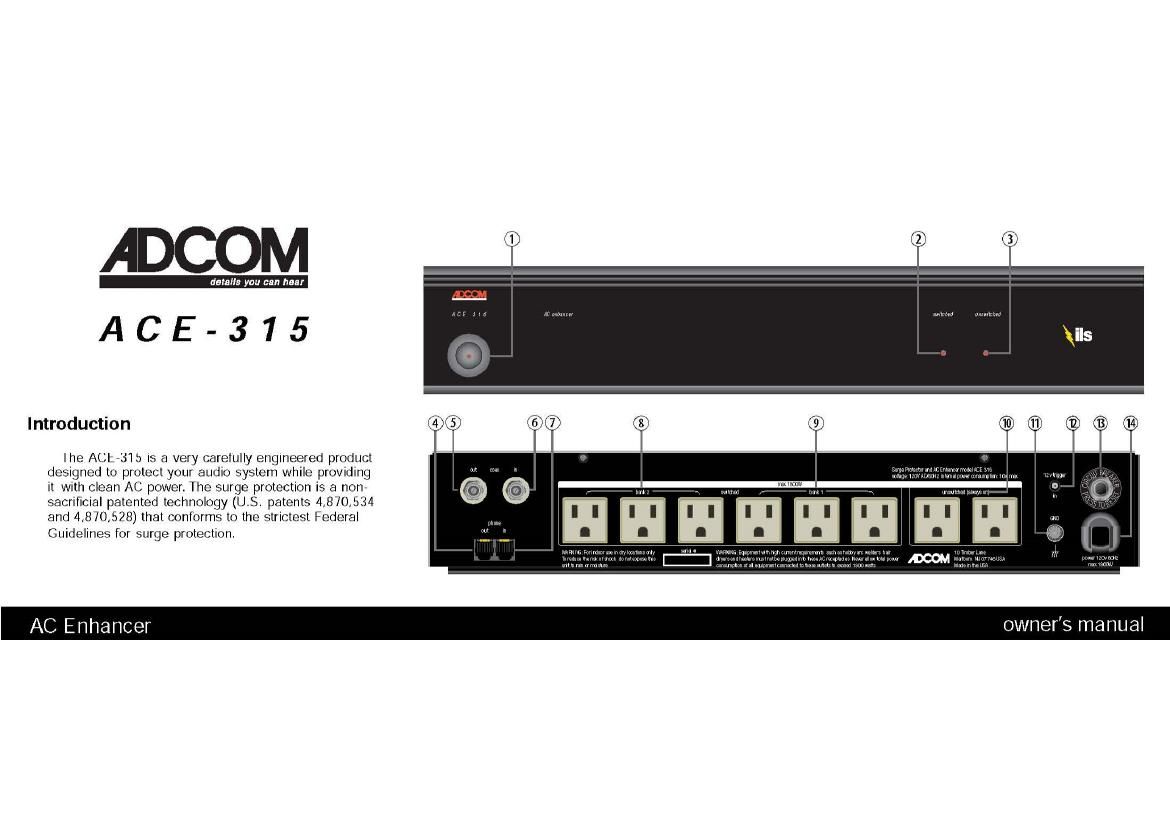

Page 1

ADCOM -˜ °_

damn: you can hur

ACE-315

Introduction

The ACE7315 is a very carefully engineered product
designed to protect your audio system while providing
it with clean AC power. The surge protection is a non
sacrificial patented technology (US. patents 4,870,534
and 4,870,528) that conforms to the strictest Federal
Guidelines for surge protection.

AC Enhancer owner-™s manual

Page 2

Safety Instructions

- Read all instructions and store them for future reference.

- Plug unit into polarized AC outlets only. Contact an
electrician if there is any doubt that the outlet is
properly polarized.

- Install in a properly ventilated location, away from
heaters, heat ducts and other heat producing devices.

- Do not use with high-current devices such as hobby arc
welders, hair dryers, and space heaters. Total power
consumption of connected equipment must not exceed
1800 watts.

- Do not use a unit ifthere are any signs of damage.

- No user serviceable parts inside. Do not attempt
servicing of this unit yourself. Refer servicing to
qualified service personnel.

- All Satellite/DSS, Cable, and Antenna cables must be
grounded in accordance with Section 810 of the
National Electrical Code and ANSI/NFPA No. 70-1984.
Failure to comply with these codes will void all
warranties regarding the ACE-315.

This -œlightning flash With arrowhead" symbol is intended to alert

This exclamation point symbol is Intended to alert the
user to the presence of important operating and
maintenance (servicing) instructions in the literature

the user of the presence of uninsulated -œdangerous voltage-
fi Within the products enclosure that may be of sumcient
magnitude to constitute a nsk of electric shock to persons,

accompanying the appliance.

Symbol explanations
CAUTION

A max or ELECYRIG annex A
Do NOT OPEN

Unpacking

Before each ACE-315 left the factory, it was carefully
inspected for physical imperfections as a routine part of
ADCOM-˜s systematic quality control. This, along with full
operational and mechanical testing, should insure a
product flawless in both appearance and performance.
After you have unpacked the ACE-31 5. inspect it for
physical damage. Save the shipping carton and all
packing materials, as they are intended to minimize the
possibility of transportation damage, should the product
ever need to be shipped again. In the unlikely event
damage has occurred, notify your dealer immediately and
request the name of the carrier so that a written claim to
cover the damage can be initiated.

The right to any claim against a public carrier can be
forfeited if the carrier is not notified promptly in writing and
if the shipping carton and packing materials are not

available for inspection. Save all packing materials until
the claim has been settled.

Installation

For maximum performance and extended product life,
install the ACE-315 in a well ventilated area away from
external heat sources like radiators and heat vents.

For professional installations, the ACE-315 may be
mounted in a standard 19-inch rack using the optional
FEM-3 rack-mount adapters available through ADCOM
dealers.

Connections

Optional: Attach the supplied color-coded AC cord
labels to each AC cord to be installed, Place a label at
each end of the AC cord to easily identify which cord is
connected to each product.

System AC Connections

Begin by connecting products which require full-time
AC power to the rear paneljacks labeled -œunswitched- @.
Connect the remaining AC power cords to the rear panel
-œswitched" AC outlets 0. ®.
