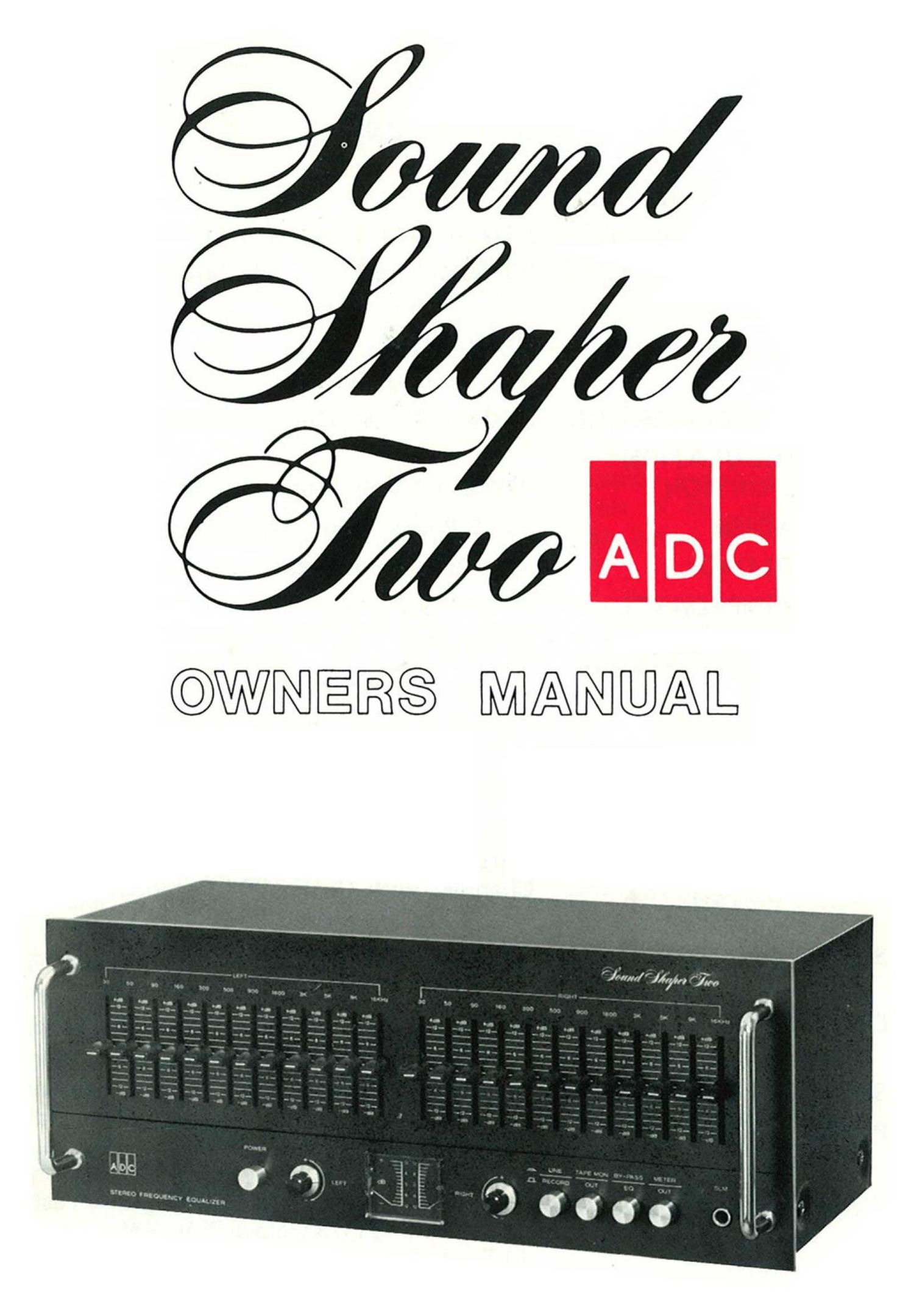

adc soundshaper two owners manual

Extracted text from adc soundshaper two owners manual (Ocr-read)


Page 2

SPECIFICATIONS

CONTROL RANGE i 12 dB Min.
FREQUENCY RESPONSE 5 Hz to 100 KHz i1 dB

CONTROL FREQUENCIES 30, 50, 90, 160, 300, 500, 900, 1600, 3000,
5000, 9000, 16000 Hz

GAIN Unity :l: 1 dB

OUTPUT 9 Volts RMS Min. into 10 KOHM Load
HARMONIC DISTORTION 0.02% at 1 Volt Output (20--20 KHZ)
INTERMODULATION

DISTORTION 0.02% at 1 Volt Output
HUM 8: NOISE 85 dB Below 1 Volt (Input Shorted)
OUTPUT LOAD 10 KOHMS or Greater
OUTPUT IMPEDANCE 10 OHMS at 1 KHz
INPUT IMPEDANCE 75 KOHMS
INPUTS 2 Main, 2 Tape Monitor
OUTPUTS 2 Main, 2 Tape Out
ACCESSORY POWER
OUTLET Unswitched 200 Watts
CONTROLS Power, Line~Record, Monitor, EO-B ypass,

Meter, 24 Frequency Controls (12 Per
Channel) with Center -0- Detent for Set»
ting to Flat Response

SEMICONDUCTORS 12 Transistors, 20 Diodes, 2 Integrated
Circuits (1 C's)

DIMENSIONS 163/8- Wide (416 MM) x 6-3/4- Deep
(172 MM) x 6-1/4- High (159 MM)

SHIPPING WEIGHT 13 L88 (6 K6)

POWER CONSUMPTION 120 VAC 50/60 Hz 15 Watts
Export (220/240 Volts 50/60 Hz 15 Watts)

ACCESSORIES AVAILABLE Sound Level Meter SLM-100 Including Test
Record R-100 (1/3 Octave Pink Noise) and
20 Foot Interconnecting Audio Cabie.

In the space provided beIow record the Serial Number located on the
back of the SOUND SHAPER TWO cabinet.

SOUND SHAPER TWO Stereo Frequency Equalizer MODEL SS-2
SER. NO. _..........._....._ retain this number for future references.
