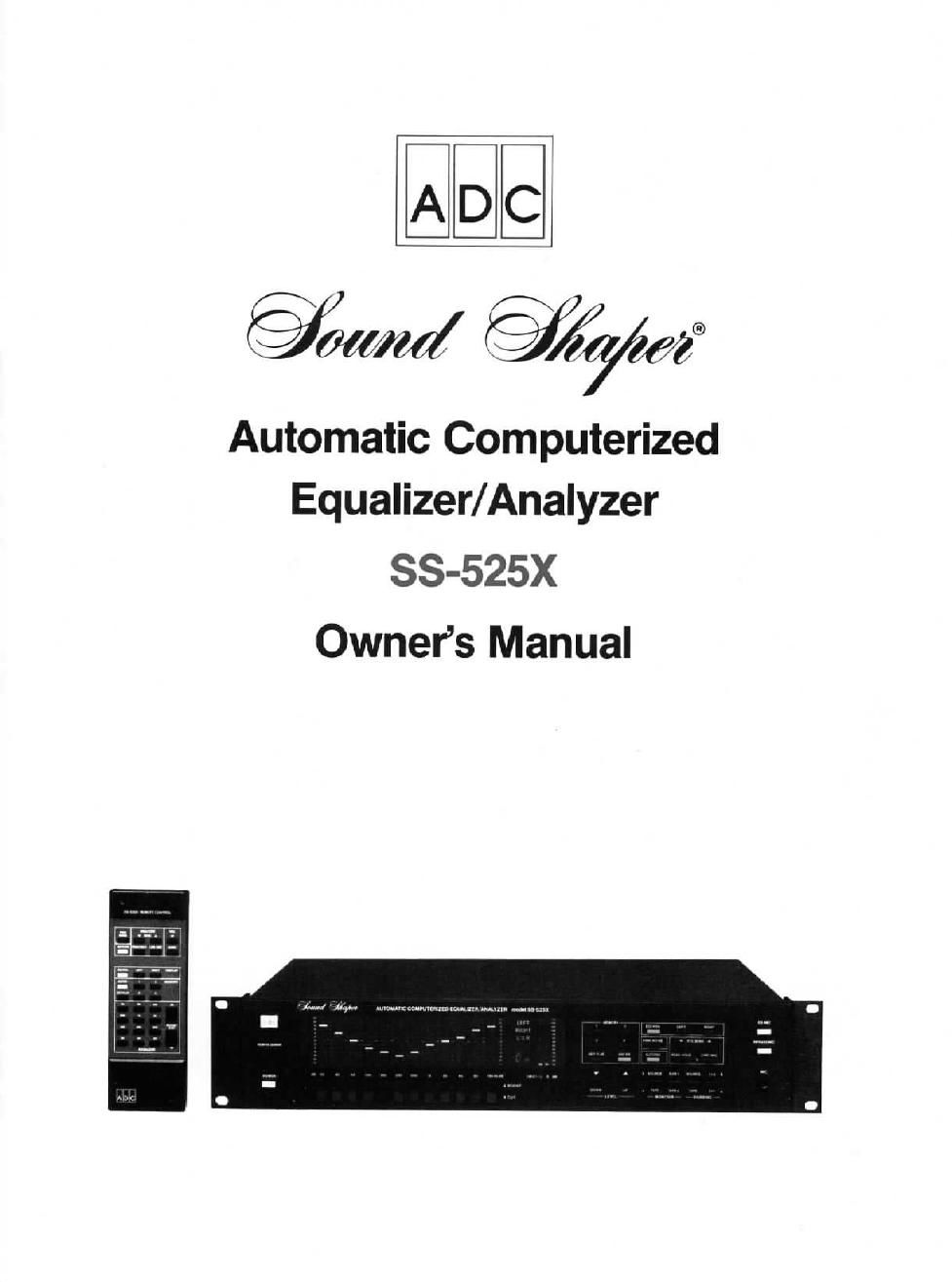

adc soundshaper 525 x owners manual

Extracted text from adc soundshaper 525 x owners manual (Ocr-read)


Page 2

Features

The ADC model SS-SZSX combines a microprocessor-
controiled 12 hand equalizer (EQ). a real-time analyzer
(RTA). a pink-noise generator. an automatic equalizer.
and a sound pressure-level meter into one unit. (And it
comes with a calibrated microphone.)

Twelve rockertype electronic switches control the i12 dB
boost or cut response at each of twelve frequency ranges
The center frequencies are arranged in such a way that
those at 250 Hz and above are exactly one full octave apart
from each other, and below 250 Hz frequencies are only
two«thirds of an octave apart, This arrangement gives you
increased control of critical low frequency response.
making the ss-525x especially useful when used with
today's advanced digital equipment.

The SS-525X's automatic equalizer (AUTO E0) can au-
tomatically produce an E0 curve to flat the sound lor your
speakers with the listener at the microphone's location. It
"hears" pink noise generated by the built-in generatorand
-thinks" about what it is hearing and adjusts the E0 curve
to get what it hears -llat.

The other features of the SS-525X include:

0 Large flourescent display. dominating the front panel,
functions as a frequency equalizer display or as a spec-
trum analyzer display with the resolution 01 2 dB in both
modes.

0 Separate channel output level display calibrated to 1V at
100 dB,

0 LEFT/RIGHT buttons let you choose either the left or
right channel, or a composite 01 both. and view the
selected setting both in the E0 or FITA mode.

0 SET FLAT button quickly makes the equalizer's band
Ilat.

0 Four memory buttons for four custom settings let you
recall a pre-equalized response instantly.

o RTA SENS(itivity) buttons let you adjust the overall
height oi the RTA display.

0 Bidirectional tape dubbing and equalized-response
recording/dubbing.

0 Output LEVEL up/down buttons and an inlrasonic filter.
I Clip-type condenser microphone is attached.

0 Full tunction remote control.

In the space provided below, record the serial number of
your unit. located on the back at the cabinet. The attached
microphone has the same number.

U nit descrIpIIon
AUTOMATIC COMPUTERIZED
EQUALIZER/ANALVZER
Sound Shaper ss-525x

Serial No.

Retain this number Ior Iuture relerence.

CAUTION

- RISK OF ELECTRIC SHOCK
l Do not OPEN -

-CAUTION -

TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This symbol is intended to alert you at
the presence at unmsulated dangerous
voltage within the unit's enclosure that
may be at SuIIlClEI-II magnitude to con-
stitutea risk at electrxcshock to persons

This symbol is intended IO alert you at
the presence ol important operating
and maintenance instructions In the
literature accompanying the unit

WARNING

TO PREVENT FIRE OR SHOCK
HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT

ELECTRIC SHOCK DO NOT USE THE
POLARIZED PLUG WITH AN EX-
TENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.

ATTENTION: POUR PRE-

VENIR LES CHOCS ELECTRIOUES NE
PAS UTILISER LE FICHE POLARISEE
AVEC UN PROLONGA TEUR UNE PRISE
DE COURANT 0U UNE AUTRE SORTIE
DE COURANT. SAUF SI LES LAMES
PEUVENT EI'RE INSEREES A FOND
SANS EN LAISSER AUCUNE PARTIE A
DECOUVERT.
