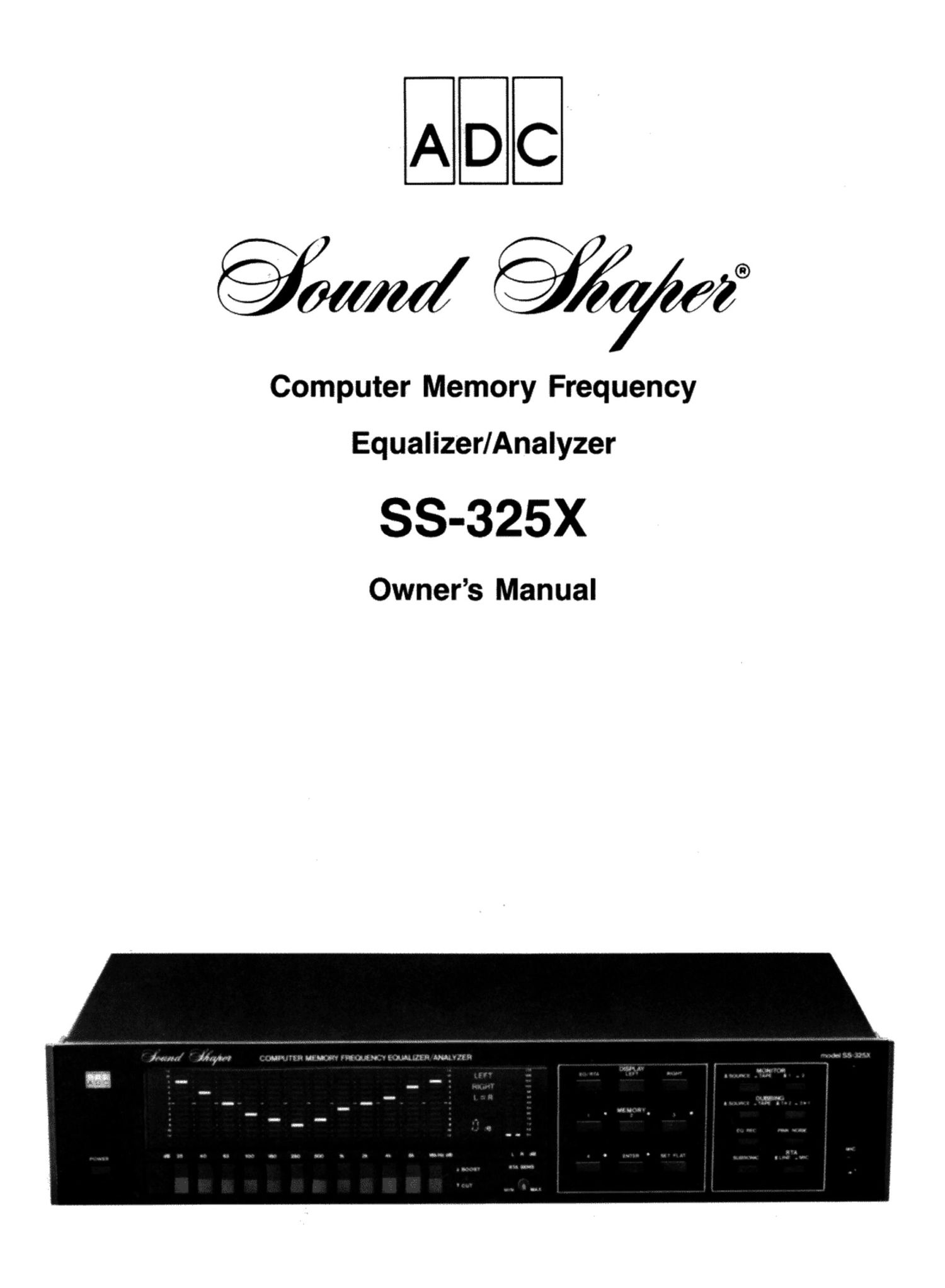

Adc soundshaper 325 x owners manual

This is the 21 pages manual for adc soundshaper 325 x owners manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 21
left right
adc soundshaper 325 x owners manual

Extracted text from adc soundshaper 325 x owners manual (Ocr-read)


Page 2

Features

The ADC model SS-325X combines a microprocessor-
controlled 12 band equalizer (EQ). a real-time analyzer
(RTA). a pink-noise generator. and a sound pressure-level
meter into one unit. (And it comes with a calibrated
microphone.)

Twelve rocker type electronic switches control the +12 dB
boost or cut response at each of twelve frequency ranges.
The center frequencies are arranged in such a way that
those at 250 Hz and above are exactly one full octave apart
from each other. and below 250 Hz frequencies are only
two-thirds of an octave apart. This arrangement gives you
increased control of critical low frequency response, making
the SS-325X especially useful when used with today-™s
advanced digital equipment.

The other features of the SS-325X include:

0 Large flourescent display, dominating the front panel.
functions as a frequency equalizer display or as a spectrum
analyzer display with the resolution of 2 dB in both modes.

0 Separate channel output level display calibrated to 1V at
100 dB.

0 LEFT lRlGHT buttons let you choose either the left or right
channel, or a composite of both, and view the selected setting
both in the E0 or RTA mode.

0 SET FLAT button quickly makes the equalizer's band flat.

0 Four memory buttons for four custom settings let you
recall a pre-equalized response instantly.

o RTA SENS (itivity) control let you adjust the overall height
of the RTA display.

0 Bidirectional tape dubbing and equalized-response record-
ing/dubbing.

0 Using pink-noise generator together with clip-type
condenser microphone attached, you can adjust with the
eye the response of acooustic at the restening room for
the equalizer easily.

In the space provided below, record the serial number of
your unit, located on the back of the cabinet.

Unit description
COMPUTER MEMORY FREQUENCY
EOUALIZERIANALYZER
Sound Shaper ss-325x

Serial No.

Retain this number for future reference.

I RISK OF ELECTRIC SHOCK

DO NOT OPEN I

-CAUTION -

TO REDUCE THE RISK OF
ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

This Symbol IS intended to alert you of
the presence of unin5ulated dangerous
voltage within the unit-˜s encloswe that
may be of Sufficrent magnitude to con-
stitute a risk of eleclric shock to persons

This symbol is intended to alert you of
the presence of important operating
and maintenance instructions in the
literature accompanying the unit

WARNING

TO PREVENT FIRE OR SHOCK
HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT

ELECTRIC SHOCK DO NOT USE THE
POLARIZED PLUG WITH AN EX-
TENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

ATTENTION: POUR PRE-

VENIR LES CHOCS ELECTRIQUES NE
PAS UTILISER LE FICHE POLARISEE
AVEC UN PROLONGA TEUR UNE PRISE
DE COURANT OU UNE AUTRE SORTIE
DE COURANT, SAUF SI LES LAMES
PEUVENT ETRE INSEREES A FOND
SANS EN LAISSER AUCUNE PARTIE A

DECOUVERT.
