Acoustic research PW 100 101 Owners Manual

This is the 8 pages manual for acoustic research PW 100 101 Owners Manual.
Read or download the pdf for free. If you want to contribute, please mail your pdfs to info@audioservicemanuals.com.

Page: 1 / 8
left right

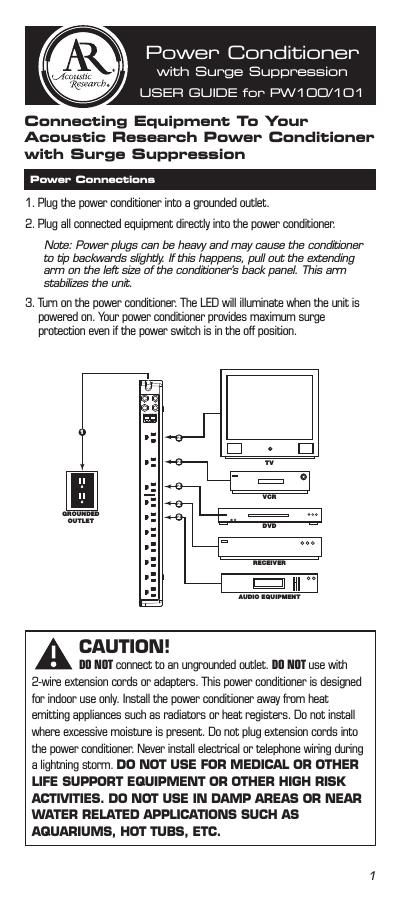

acoustic research PW 100 101 Owners Manual

Extracted text from acoustic research PW 100 101 Owners Manual (Ocr-read)


Page 1

 Indicator Lights - -Protected- indicator-The protected indicator on your power conditioner should be on when the power switch is turned on. If this indicator goes out and the power light is on, it means your power conditioner has sacrificed itself to protect your equipment and should be replaced. - -Grounded- indicator-The grounded indicator on your power conditioner should be on when the power switch is turned on. If the light does not come on when you turn on the power conditioner, a ground wiring problem may exist and you should contact an electrician to properly ground the outlet. Connecting your power conditioner to an improperly grounded outlet will void all Thomson warranties. - -Volts- indicator (available on PW101 only)-The voltage indicator tells you the number of volts coming from the outlet you-ve plugged the power conditioner into. Coax Cable Connections Phone/Fax/Modem 1. Connect the Phone/Fax/ Modem line from your wall outlet to the INPUT jack on the power conditioner. 2. Connect a second phone cord into the OUTPUT jack on the power conditioner. Pass the phone/fax/modem connection through the jacks on your power conditioner as illustrated. Pass the coaxial cable connection through the protected coaxial jacks on your power conditioner. Most TV/VCR/Satellite receiver damage can be prevented if you connect the coaxial cable through the power conditioner. TELEPHONEWALL JACK CONNECT TO DEVICE'S TELEPHONE JACK POWER CORD DEVICE (receiver, computer, etc.) 1 2 3 1. Connect the Cable/Antenna line from your source to the INPUT jack on the power conditioner. 2. Connect the coax cable from the OUTPUT jack of the power conditioner to the device you want to protect. CABLE/ANTENNA OUTLET CONNECT TO DEVICE'S COAX JACK IN OUT TV/VCR/CABLE DEVICE 1 2 3. Connect the other end of the second phone cord cable to the Phone/Fax/Modem jack of the device you want to protect.

Page 2

 Resetting the Power Conditiner after a Power Surge - If the power conditioner does not turn on, it may indicate that the conditioner has experienced a power surge and needs to be reset. To reset the power conditioner, press the reset button on the left side of the conditioner. Limited Lifetime Product Warranty Audiovox Electronics Corporation (the -Company-) warrants to you\ the original retail purchaser of this product that should it, under normal use and co\ nditions, be proven defective in material or workmanship during its lifetime while\ you own it, such defect(s) will be repaired or replaced (at the Company-s option) without charge for parts and repair labor. To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of \ sale), specification of defect(s), transportation prepaid, to the Company at \ the address shown below. Do not return this product to the Retailer. This Warranty does not cover product purchased, serviced or used outside the United States or Canada. This Warranty is not transferable and does not extend to costs incurred for installation, removal or reinstallation of the product. This Warranty does not apply if in the Company-s opinion, the product has been damaged through alteration, improper installation, mishandling, misuse, neglect, or acci\ dent. THE EXTENT OF THE COMPANY-S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY-S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED TO DURATION OF THIS WARRANTY. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product. Some states/provinces do not allow limitations on how long an implied wa\ rranty lasts or the exclusion or limitation of incidental or consequential dama\ ge so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from\ state/province to state/province. CANADA: Call 1-800-323-4815 for location of warranty station serving your area. U.S.A.: Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, NY 11788 - 1-800-645-4994 Limited Connected Equipment Guarantee Your Connected Equipment Guarantee covers the original purchaser for connected equipment damaged by a transient voltage surge/spike (-Occ\ urrence-) while properly connected through this power conditioner for a period of \ five (5) years from the date of purchase (See your package for amounts). Audiovox Electronics Corporation (-Audiovox-) will repair the da\ maged equipment or will reimburse an amount equal to the fair market value of the equipm\ ent or the original purchase price of the equipment, whichever is less, up to t\ he maximum amount set forth for the Connected Equipment Guarantee for this \ power conditioner. The fair market value of the equipment shall be the current value of the equipment specified in the most recent edition of the Orion Blue Book by Orion Research Corporation, Roger Rhors Publisher. The cost, if any, of shipping equipment to and from such repair facility shall be borne solely by the original purchaser. Audiovox reserves the right to inspect the damaged power conditioner and\ the damaged equipment, and the site where damaged occurred. All cost of ship\ ping the damaged power conditioner and the damaged equipment shall be borne solely by the original purchaser.
