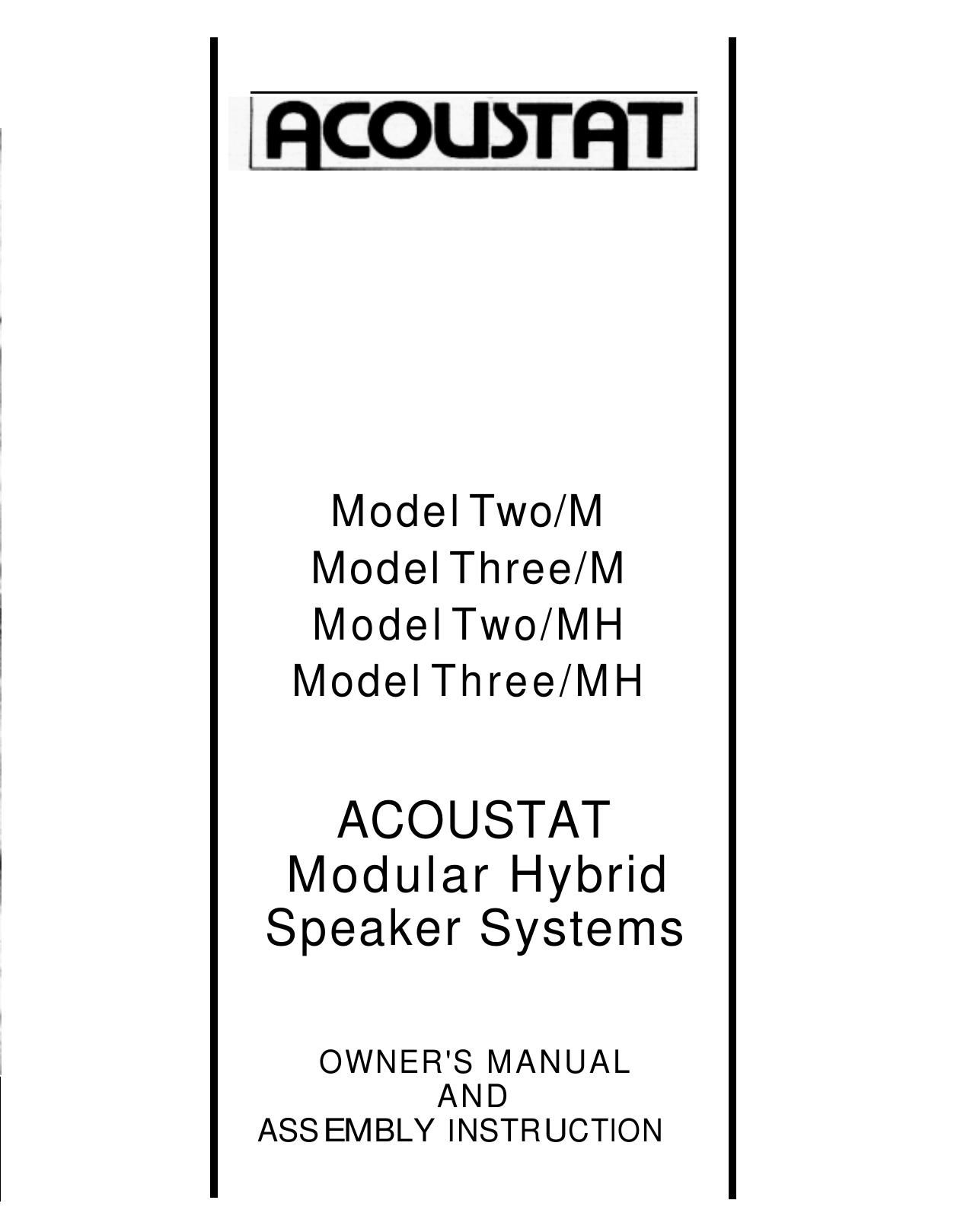

Acoustat Model 3 M Owners Manual

Extracted text from Acoustat Model 3 M Owners Manual (Ocr-read)


Page 1

TABLE OF CONTENTS Introduction ............. ............ Registration Cards.. ........................... .............. Packaging .......... ............................ Fuses For Models Two/M & Three/M , , . . For Models Two/MH & Three/MH. .. ................ ..................... Assembly Instructions For Models Two/M H Three/M ......... For Models Two/MH & Three/MH.. ........... Recommended Set -Up and Speaker Placement ................. ............ 6 ........................................... .6 ............... ........ .6 Placement Within the Room Acoustical Properties of the Walls .......... ................................. 7 Electric Feedback ...................... ............. Removel of Interface for Models Two/M & ThreeIM ................... Specifications For Models Two/M & Three/M .. .. ... 9 For Models Two/MH & Three/MH. .. .. ............ ..9

Page 2

INTRODUCTION Congratulations on your purchase of the worlds finest loudspeaker, the Acoustat Modular Hybrid electrostatic with Magne-Kinetic Interface'. Please review the entlre owner's manual before you begin to assemble your new speakers to assure you of reaching the speaker's full sonic potential. When assembled, placed correctly in the room, and used with the proper el\ ectronics, the Acoustat electrostatic loudspeakers will provide you with years of listening enjoyment. PLEASE NOTE: The speakers require several hours of playing time before their full efficiency can be realized . REGISTRATION CARDS Please complete and return the enclosed purchase registration card within ten days of purchase of your new speakers. This card does not determine your eligibilityfor waranty but will allow Acoustat to inform you of updates and other product news that would be of interest to speaker owners. Any additional information you provide will aid the Acoustat Corporation in continuing to bring music lovers everywhere the finest audio components available today. PAC KAGl I N G SAVE ALL PACKAGING MATERIALS ! Your Acoustat electrostatic loudspeakers are finely crafted pieces of equipment, and must be properly cartoned whenever shipment is necessary. ONLY the original packaging materials will insure safe transport If lost or damaged, replacement packaging materials may be obtained from the Acoustat Corporation at a nominal charge. FUSES Acoustat speakers Models Two/M and Three/M and Models Two/MH and Three/MH utilize slo-blo type fuse(s) in the audio signal path. The ModelsTw/M and Three/M with Magne-Kinetic 121 Interface, and Models Tw/MH and Three/MH with MagneKinetic 131 Interface utilize 3 amp slo-blow fuse. When replacing fuse(s) only those of similar value and type can be used or the warranty may become invalid. ASSEMB LY INSTRUCTIONS For Models Two/M & Three/M PLEASE READ COMPLETELY BEFORE YOU BEGIN TO ASSEMBLE YOUR SPEAKER SYSTEM! 1, Lay the speaker face up on the floor. CAREFULLY and SLOWLY! Dropping the\ speaker could rupture the diaphragm with trapped air. 2. Remove the three screws from the bottom of the speaker system. The screws are 2-1/2" in length, each with a flat washer. Set them aside. 3. Remove oneofthe bases from the base box. Place the base against the b\ ottom of the speaker. such that the front/top(name plate is on thefront -right handcornerof the base) of the base faces up, and the three holes line up with the three holes in the bottom of the speaker. Start all three long screw/washer assemblies (through the base holes) into the speakers frame, DO NOT TIGHTEN 4. Adjust the base so that there arof the base is flush with the rear of th\ e frame. lighten the three screws securely. 1
