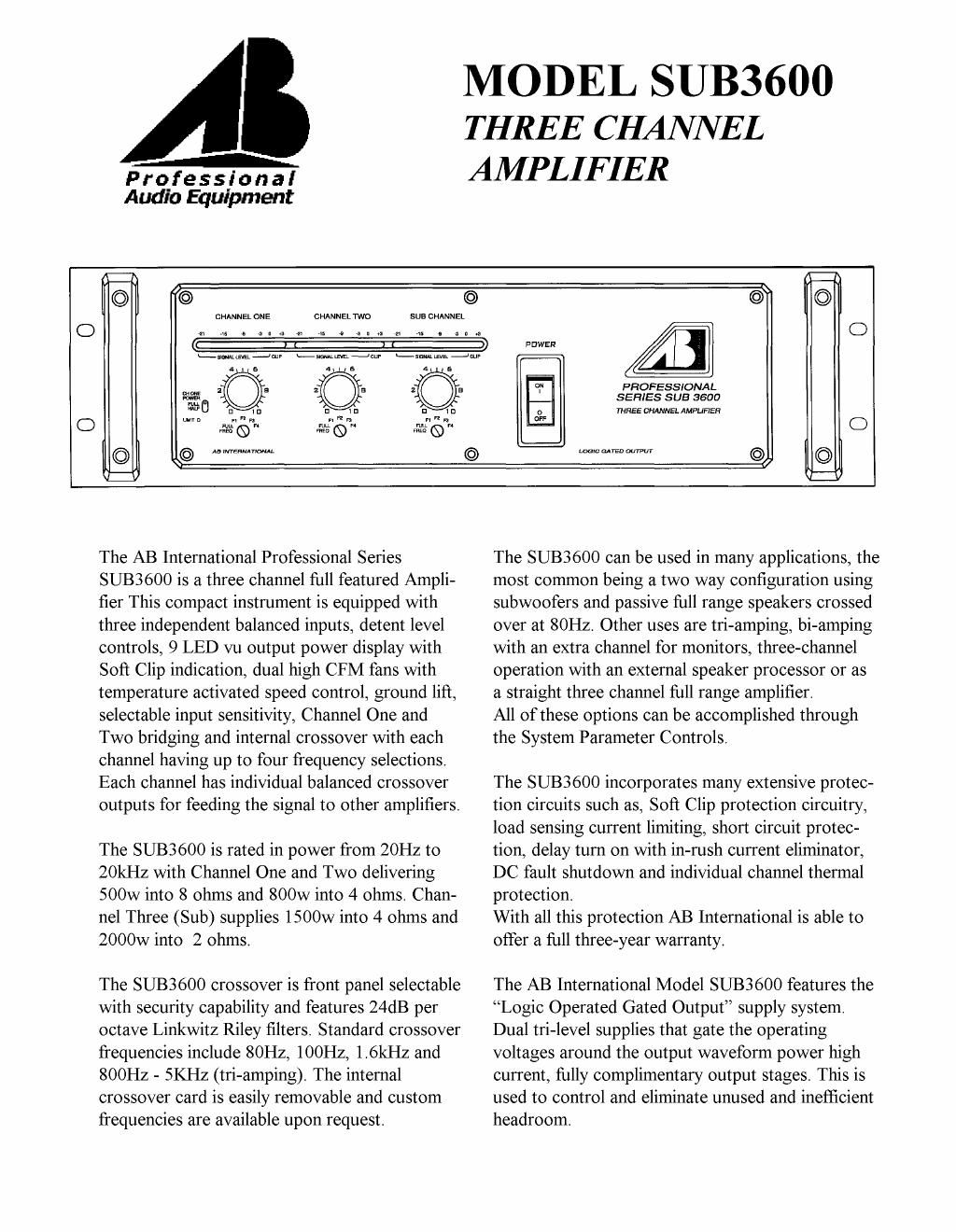

Page 1

A

Professional
AudioEqufiJme-nt

MODEL SUB3600

THREE CHANNEL
AMPLIFIER

O

0-. {-1
i l CHANNEL ONE CHANNEL TWO SUB CHANNEL
(..u.4..a.t.w.t..mat) O
(--mmL-Jmp Dimm-JWV (-Emma-Jul
PROFESSIONAL
-.5 SERIES SUB 3500
El THREEWNNELAMPLIFIER
m n
.., ®~ MQ: n Q», Q
- © | © AIME-mm © Lmlnm'rsaoun-uv © l © -
-- fi-9

The AB International Professional Series
SUB3600 is a three channel fiill featured Ampli-
fier This compact instrument is equipped with
three independent balanced inputs, detent level
controls, 9 LED vu output power display with
Soft Clip indication, dual high CFM fans with
temperature activated speed control, ground lifi,
selectable input sensitivity, Channel One and
Two bridging and internal crossover with each
channel having up to four frequency selections,
Each channel has individual balanced crossover
outputs for feeding the signal to other amplifiers,

The SUB3600 is rated in power from 20Hz to
20kHz with Channel One and Two delivering
500w into 8 ohms and 800w into 4 ohms, Chan-
nel Three (Sub) supplies 1500w into 4 ohms and
2000w into 2 ohms.

The SUB3600 crossover is front panel selectable
with security capability and features 24dB per
octave Linkwitz Riley filters. Standard crossover
frequencies include 80Hz, 100Hz, 1.6kHz and
SOOHZ - SKHz (tri-amping), The internal
crossover card is easily removable and custom
frequencies are available upon request

The SUB3600 can be used in many applications, the
most common being a two way configuration using
subwoofers and passive fiill range speakers crossed
over at 80Hz. Other uses are tri-amping, bi-amping
with an extra channel for monitors, three-channel
operation with an external speaker processor or as
a straight three channel fiill range amplifier

All of these options can be accomplished through
the System Parameter Controls,

The SUB3600 incorporates many extensive protec-
tion circuits such as, Sofi Clip protection circuitry,
load sensing current limiting, short circuit protec-
tion, delay turn on with in-rush current eliminator,
DC fault shutdown and individual channel thermal
protection,

With all this protection AB International is able to
offer a full three-year warranty.

The AB International Model SUB3600 features the
-Logic Operated Gated Output- supply system.
Dual tri-level supplies that gate the operating
voltages around the output waveform power high
current, fully complimentary output stages This is
used to control and eliminate unused and inefficient
headroom

Page 2

AB MODEL SUB3600 SPECIFICATIONS

uurnur

amass
ENI&I

ma:

©

rwn

VHREE /
o )

t©g

Type: Three channel amplifier with a
selectable crossover
Continuous 500w into 8 Ohms Ch 1 & 2
Power Output 800w into 4 Ohms Ch 1 & 2
Per Channel 1050w into 2 Ohms Ch 1 & 2
20Hz to 20Khz: 900w 8 ohms Bridged Ch 1 & 2
1500w 4 ohms Bridged Ch 1 & 2
900w into 8 ohms Ch 3 (Sub)
1500w into 4 ohms Ch 3(Sub)
2000w into 2 ohms Ch 3(Sub)
Frequency
Response: Plus/minus 0.25dB 20-20kHz
Distortion: No more than 0, 1% THD or IM,

Hum & Noise:

Input
Sensitivity:

Input
Connectors:

Output
Connect:

Controls &
Indicators:

Fax (916) 652-9218 * Website http\\abamps.com * e-mail sales@abamps.com

001 to rated output, 20Hz-20kHz
(Typically 0,01%)

0.02 101 dB below rated output
(unweighted, 20kHz bandwidth)

10V RMS for rated output
(selectable) .775V, 10V, 1.5V 1/4-
phone jack (balanced) XLR
(balanced)

5-way binding posts (Speakon-s
optional)

(Front panel) AC mains power
Breaker, power on LED, level
controls, 9 LED vu displays,
frequency selector switches, (Rear
panel) ground lift switch,
stereo/bridged switch Ch 1 & 2,
crossover outputs 1/4- TRS
(balanced),

Damping Factor: 100011 at lkHz

Slew Rate: Closed-loop response greater
than 40V per microsecond

Crosstalk: 80dB

Gain: 33dB Ch 1 & 2, 36dB Ch 3

Mainframe Toroidal transformer

Power 4ea (20,000 MFD), Zea

Supply: (15,000 MFD) capacitors

Turn-0n Delay: 3 sec, solid-state actuated
Power
Requirements: AC Mains- 100-240VAC

50/60Hz@32A/16A
Thermal Thermal sensor activates channel
Protection: shutdown if overheating condition
exists

DC Protection: DC sensor activates channel
shutdown if DC condition exists,
Sofi clip protection

Heatsink and Dual speed fans providing extra

Cooling: power handling utilizing massive
heatsink extrusions 14-gauge cold-
rolled steel with

Construction: 1/4- heavy aluminum front panel

Dimensions: Slimline 5 1/ -height, 19- standard
rack mount width, 16 1/2- depth
overall (less handles)

Weight: 70 lbs (3178 kg)
Shipping
Weight: 75 lbs (34.05 kg)

AB International
4235-F Pacific Street, Rocklin, CA 95677 Phone (916) 652-9214

09/02
