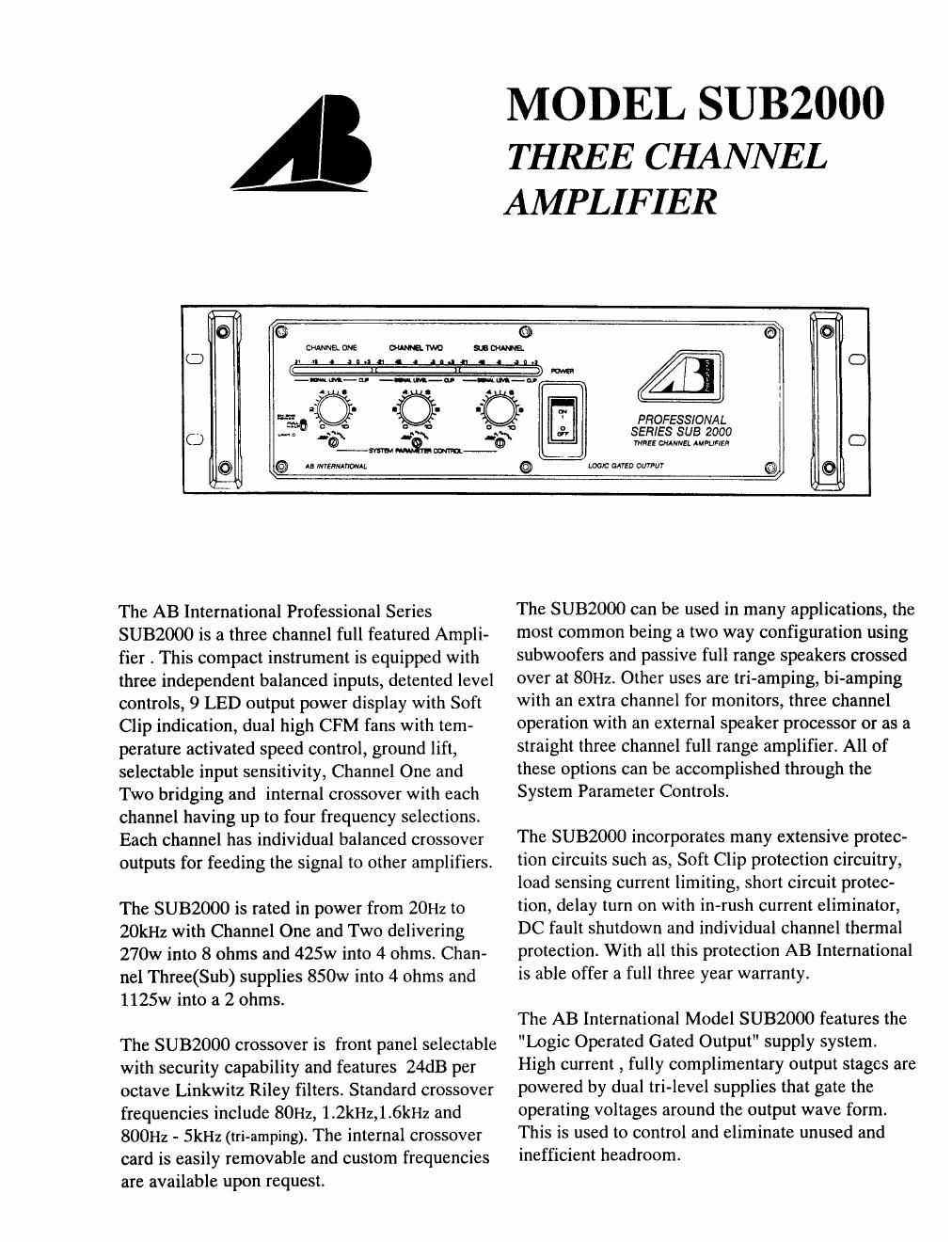

Page 1

A

MODEL SUB2000

THREE CHANNEL
AMPLIFIER

o
{
PROFESSIONA L
SERIES SUB 2000
m... mm. W
A! #411me LOGIC SAVED OUTPUT
o o o

The AB International Professional Series
SUB2000 is a three channel full featured Ampli-
fier . This compact instrument is equipped with
three independent balanced inputs, detented level
controls, 9 LED output power display with Soft
Clip indication, dual high CF M fans with tem-
perature activated speed control, ground lift,
selectable input sensitivity, Channel One and
Two bridging and internal crossover with each
channel having up to four frequency selections.
Each channel has individual balanced crossover
outputs for feeding the signal to other amplifiers.

The SUB2000 is rated in power from 20Hz to
20kHz with Channel One and Two delivering
270w into 8 ohms and 425w into 4 ohms. Chan-
nel Three(Sub) supplies 850w into 4 ohms and
1125w into a 2 ohms.

The SUBZOOO crossover is front panel selectable
with security capability and features 24dB per
octave Linkwitz Riley filters. Standard crossover
frequencies include 80Hz, 1.2kHz,1.6kHz and
800Hz - SkHz (tri-arnping). The internal crossover
card is easily removable and custom frequencies
are available upon request.

The SUBZOOO can be used in many applications, the
most common being a two way configuration using
subwoofers and passive full range speakers crossed
over at 80Hz. Other uses are tri-amping, bi-amping
with an extra channel for monitors, three channel
operation with an external speaker processor or as a
straight three channel full range amplifier. All of
these options can be accomplished through the
System Parameter Controls.

The SUB2000 incorporates many extensive protec-
tion circuits such as, Soft Clip protection circuitry,
load sensing current limiting, short circuit protec-
tion, delay turn on with in-rush current eliminator,
DC fault shutdown and individual channel thermal
protection. With all this protection AB International
is able Offer a full three year warranty.

The AB International Model SUB2000 features the
"Logic Operated Gated Output" supply system.
High current , fully complimentary output stages are
powered by dual tri-level supplies that gate the
operating voltages around the output wave form.
This is used to control and eliminate unused and
inefficient headroom.

Page 2

AB MODEL SUB2000 SPECIFICATIONS

Q Q
$2 $2

Type:

Continuous
Power Output
Per Channel
20Hz to 20Kllz:
All Channels
Driven:

Frequency
Response:
Distortion:

Hum & Noise:

Three channel amplifier with
an selectable crossover

270w into 8 Ohms Ch 1 & 2
425w into 4 Ohms Ch 1 & 2
525w into 2 Ohms Ch 1 & 2
700w 8 ohms Bridge Ch 1 & 2
900w 4 ohms Bridge Ch 1 & 2
525w into 8 ohms Ch 3(Sub)
850w into 4 ohms Ch 3(Sub)
1125W into 2 ohm Ch 3(Sub)

Plus/minus 0.25dB 20-20kHz
No more than 0.1% THD or
IM 0.01 to rated output.

101 dB below rated output
(unweighted, ZOkHz band-
width)

1.0V RMS for rated output

Input Sensitivity: (selectable) ,775V,1.0V,1.5V

1/ " phone jack (balanced)

Input Connectors: XLR (balanced)

5-way binding posts

Output Connect.: (Front panel) AC mains power

Control &
Indicators:

breaker, power on LED, level
controls, 9 LED displays,
frequency selector switches,
(Rear panel) ground lift
switch, stereo/bridged switch
Ch 1 & 2, crossover outputs
1/4" TRS (balanced).

Damping Factor:

Slew Rate:

Crosstalk:
Gain:
Mainframe
Power

Supply:
Turn-On Delay:
Power
Requirements:

Thermal
Protection:

DC Protection:
Heatsink and
Cooling:

Construction:

Dimensions:

Weight:

1000:1 at lkHz

Closed-loop response greater
than 40V per microsecond
80dB

28dB Ch 1& 2, 33dB Ch 3
Toroidal transformer

6EA (20,000 MFD) capacitors

3 sec., solid-state actuated
AC Mains- 100-240VAC
50/60Hz@15A/7.5A

Thermal sensor activates
channel shutdown if overheat-
ing condition exists

DC sensor activates channel
shutdown if DC condition
exists, Soft clip protection
Dual speed fan providing
extra power handling utilizing
massive heatsink extrusions
14-gauge cold-rolled steel with
3/16" heavy aluminum front
panel

Slimline 5 1/ " height, 19"
standard rack mount width,
14" depth overall

(less handles)

42 lbs. (18.61kg)

AB INTERNATIONAL ELECTRONICS INC

PH: (9-¯) 783-7800 e-mail: sales@abamps.com
[830-6 Vernon St., PO Box 1 [05, Roseville, CA 95678 FAX: (916)784-1050 http;www.abamps.com
