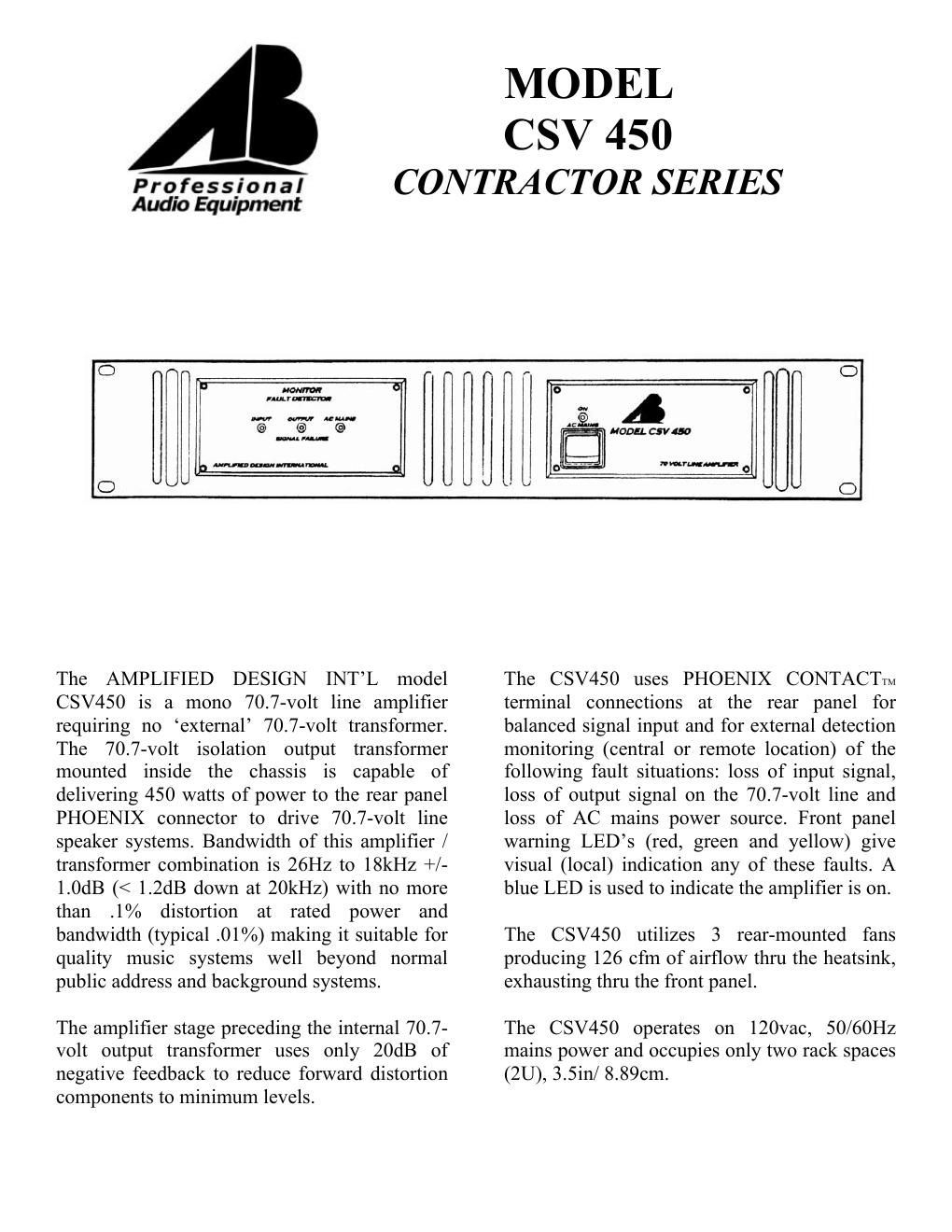

Contractor Series CSV 450
Specifications
Type:
Gain:
Power Output:
Frequency
Response:
Distortion:
Hum & No ise:
Input
Sensitivity:
Turn on
Delay:
Input
Connectors:
One Channel
32dB @ 1.5vrm s input
36dB @ 1.0vrm s input
38dB @ .775vrm s input
450 Watts @ 11 Ohm s
26Hz-18kHz +/- 1.0dB
(25Hz-20kHz +/- 1.2dB)
No m ore than .1% 30Hz-
18kHz (.01% ty pical)
-110dB
Selectable (.775,1.0,1.5vrm s)
1 second
PHOENIX CONTACT TM
Output
Connectors:
Indicators:
Power
Requirement:
Cooling:
Dimensions:
Weight:
PHOENIX CONTACT TM
(Front) Input signal loss, Output
signal loss, AC m ains loss
(Fault) LEDs and AC m ains
(power) LED. (Rear) Rem ote
fault dry contact output thru
PHOENIX connector.
120vac 50/60Hz 10 am p
3x42 cfm rear m ount fans
3-1/2H (8.89 cm ), 19W (48.3
cm ), 15 (38.1 cm ) behind panel,
16-3/8 (41.6 cm ) overall
41 lbs (18.53 kg)
Architects and Engineers Specifications
The m ono am plifier shall be capable of m eeting th e following criteria: power output to 70.7-volt lines, 450
watts. The am plifier shall have rear panel term inal strip connections for balanced inputs and isolated
transform er output. The am plifier shall have rear pane l term inal strip connections f or rem ote or central
monitoring and detection of input signal loss, output 70.7-volt line loss\
, and AC m ains power loss.
The am plifier shall have the following front panel contro ls and LED indicators: power rocker switch with blue
ON LED, fault LEDs for loss of i nput signal (green), loss of output signal (yellow) and loss of AC m\
ains
power (red) (to rem ain on for no less than 20 m inutes after loss of power).
The am plifier shall be a 2-rack space (2U) instrum ent.
The am plifier shall be the Am plified Design Intl m odel CSV 450.
Am plified Design International (m fr of AB In tl products) 1830-6 Vernon St. Roseville, CA 95678
Phone (916) 783-7800 Fax (916) 784-1050 Web Site: www.abamps.com E-Mail: sales@abamps.com
