ab international 6300 a brochure

Extracted text from ab international 6300 a brochure (Ocr-read)

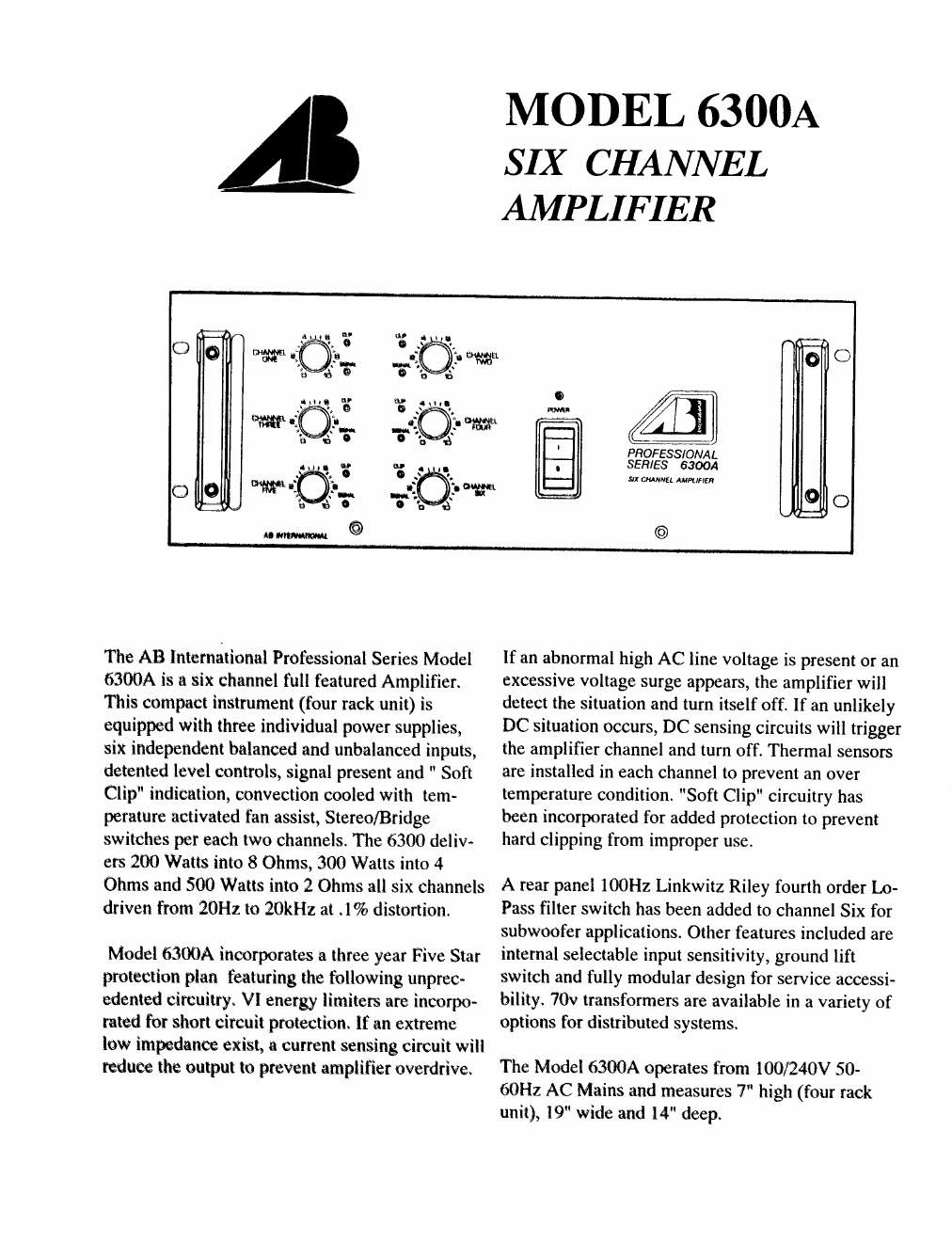

Page 1

A!

MODEL 6300A

SIX CHANNEL
AMPLIFIER

PROFESSIONAL
SERIES 6300/1

SIX Damn AMPLWER

©

The AB International ProfeSSional Series Model
6300A is a six channel full featured Amplifier.
This compact instrument (four rack unit) is
equipped with three individual power supplies,
six independent balanced and unbalanced inputs,
detented level controls, signal present and " Soft
Clip" indication, convection cooled with tem-
perature activated fan assist, Stereo/Bridge
switches per each two channels. The 6300 deliv-
ers 200 Watts into 8 Ohms, 300 Watts into 4
Ohms and 500 Watts into 2 Ohms all six channels
driven from 20Hz to 20kHz at .l% distortion.

Model 6300A incorporates a three year Five Star
protection plan featuring the following unprec~
edented circuitry. VI energy limiters are incorpo-
rated for short circuit protection. if an extreme
low impedance exist, a current sensing circuit will
reduce the output to prevent amplifier overdrive

If an abnormal high AC line voltage is present or an
excessive voltage surge appears, the amplifier will
detect the situation and turn itself off. If an unlikely
DC situation occurs, DC sensing circuits will trigger
the amplifier channel and turn off. Thermal sensors
are installed in each channel to prevent an over
temperature condition. "Soft Clip" circuitry has
been incorporated for added protection to prevent
hard clipping from improper use.

A rear panel 100Hz Linkwitz Riley fourth order Lo-
Pass filter switch has been added to channel Six for
subwoofer applications. Other features included are
internal selectable input sensitivity, ground lift
switch and fully modular design for service accessi-
bility. 70v transformers are available in a variety of
options for distributed systems.

The Model 6300A operates from 1001240V SO-
GOHz AC Mains and measures 7" high (four rack
unit), 19" wide and 14" deep.

Page 2

AB MODEL 6300A SPECIFICATIONS

TYPE:

Continuous
Power Output
Per Channel
20m to 20KHz:

Frequency
Response:
Distortion:

Hum & Noise:

Input Sensitivity:

Input Connectors:

Output Connect.:

Controls &
Indicators:

Six channel amplifier

200w @ 8 Ohms

300w @ 4 Ohms

500w @ 2 Ohms

550w @ 8 Ohm Bridged
900w @ 4 Ohms Bridged

Damping Factor:

Slew Rate:

Crosstalk:
Gain:
Mainframe
Power

70v Operation (Call for specs.) Supply:

Plus/minus 0.25dB 20-20kHz

No more than 0.1% THD or
IM, 0.01 to rated output, 20Hz
to 20kHz (typically 0.01%)
101 dB below rated
output (unweighted, ZOkHz
bandwidth)

1.0V RMS for rated output
(selectable) .775V,1.0V,1.5V
1/4" phone jack (balanced)
XLR (balanced)

S-way binding posts

(Front panel) AC mains power
Breaker, power on LEDy level
controls,signal/clip LEDs,
(Rear panel) ground lift
switch, stereo/bridged
switches per each two chan-
nels, Low Pass filter Ch Six.

Turn-0n Delay:
Power
Requirements:
Thermal
Protection:

DC Protection:
Heatsink and
Cooling:

Construction:

Dimensions:

Weight:

500:1 at IkHZ

Closed-loop response greater
than 40V per microsecond
-80dB

30.5dB

Toroidal transformer, 3
seperate power supplies
6EA (15kuf) capacitors

3 sec., solid-state actuated
AC Mains- 100-240VAC
50/60Hz@15A/7.5A
Thermal sensor activates
channel shutdown if an over-
heating condition exists

DC sensor activates channel
shutdown if DC condition
exists, Soft clip protection
Convection cooling utilizing
massive heatsink extrusions
with fan assist.

14-gauge cold-rolled steel Will
3/16" heavy aluminum front
panel

Slimline 7" height, 19" stan-
dard rack mount width,

14" depth overall

(less handles)

45 lbs. (20.51 kg)

AB INTERNATIONAL ELECTRONICS INC
1830-6 Vernon St., PO Box 05, Roseville, CA 95678 FAX: (916)784-1050 http;www.abamps.com

PH: (9) 783-7800 e-mail: sales@abampstcom
