F

l

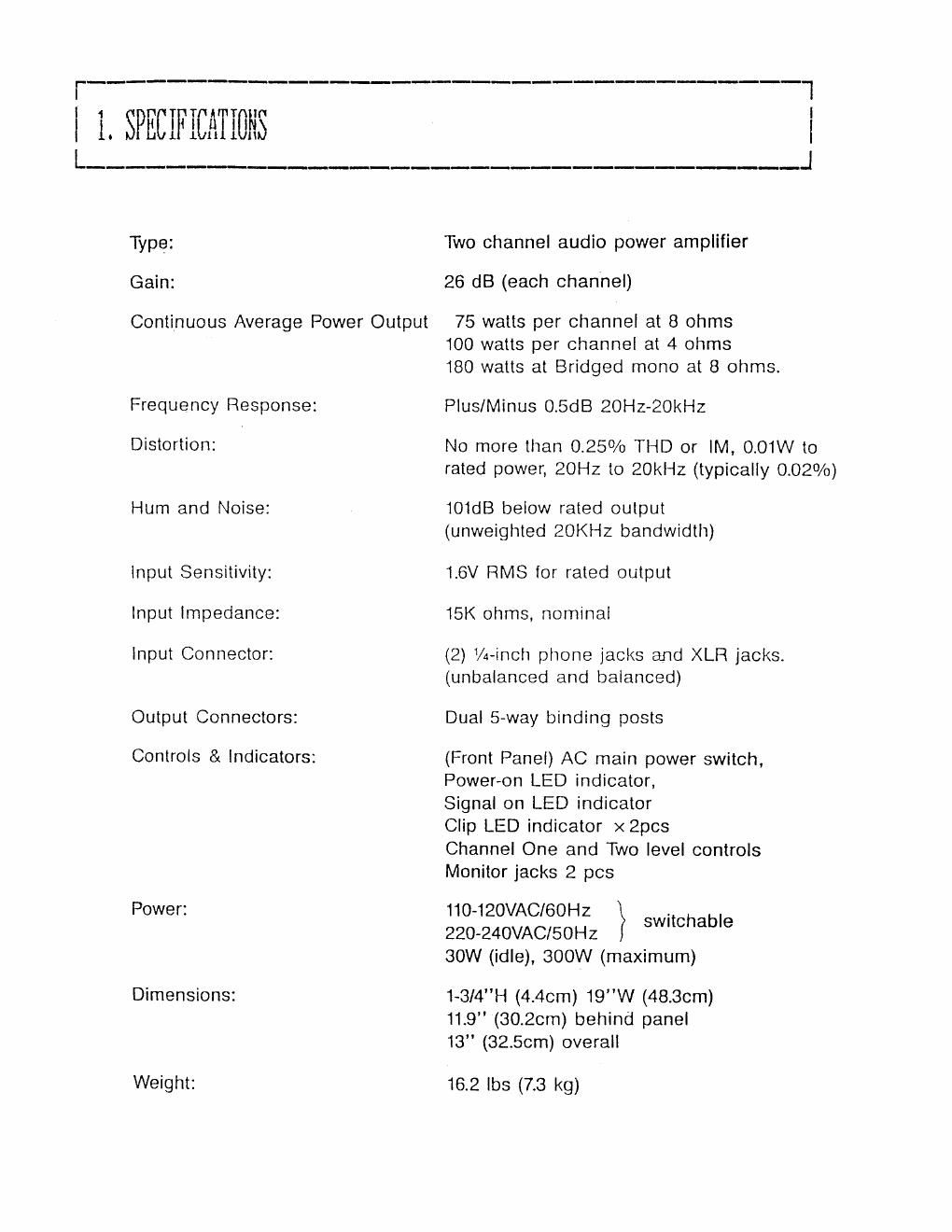

i. SPECIFECATiOIIS

L__._.l

Type:
Gain:

Continuous Average Power Output

Frequency Response:

Distortion:

Hum and Noise:

Input Sensitivity:
Input impedance:

Input Connector:

Output Connectors:

Controls & Indicators:

Power:

Dimensions:

Weight:

Two channel audio power amplifier
26 dB (each channel)

75 watts per channel at 8 ohms
100 watts per channel at 4 ohms
180 watts at Bridged mono at 8 ohms.

Plus/Minus 0.5dB 20Hz-20kHz

No more than 0.25% THD or IM, 0.01W to
rated power, 20Hz to 20kHz (typically 0.02%)

101dB below rated output
(unweighted ZOKHZ bandwidth)

1.6V RMS for rated output
15K ohms, nominal

(2) 1/4-inch phone jacks and XLR jacks.
(unbalanced and balanced)

Dual 5-way binding posts

(Front Panel) AC main power switch,
Power-0n LED indicator,

Signal on LED indicator

Clip LED indicator x2pcs

Channel One and Two level controls
Monitor jacks 2 pcs

110-120VAC/60Hz .
220-24OVAC/50Hz i SW'tChab'e
30W (idle), 300W (maximum)

1-3/4"H (4.40m) 19-W (48.30m)
11.9" (30.20m) behind panel
13" (32.50m) overall

16.2 lbs (7.3 kg)

Page 2

r
l 2. OPERATING THE AB 200
[

-FRONT PANEL-

- nouxmuu
mutt zoo

-REAR PANEL-
_\Q
--1916,- o o o o 3 Jo :-E-Th
_ - - q; 6 as m
-- 0:3- - 2 .3 .3263
an c1) c1)
FRONT: 1. POWER SWITCH 2. POWER IND [CATING LED
3. HEADPHONE MONITOR JACKS 4. LEVEL CONTROIS
5. CLIP INDICATORS 8. ON INDICATORS

REARz 7. UNBALANCED INPUT CONNECTIONS 8. BALANCED INPUT CONNECTIONS
9. NORM/MONO SELECTOR SWITCH 10. GROUND/LIFT SWITCH
11. OUTPUT CONNECTIONS
