ab international 200 brochure

Extracted text from ab international 200 brochure (Ocr-read)

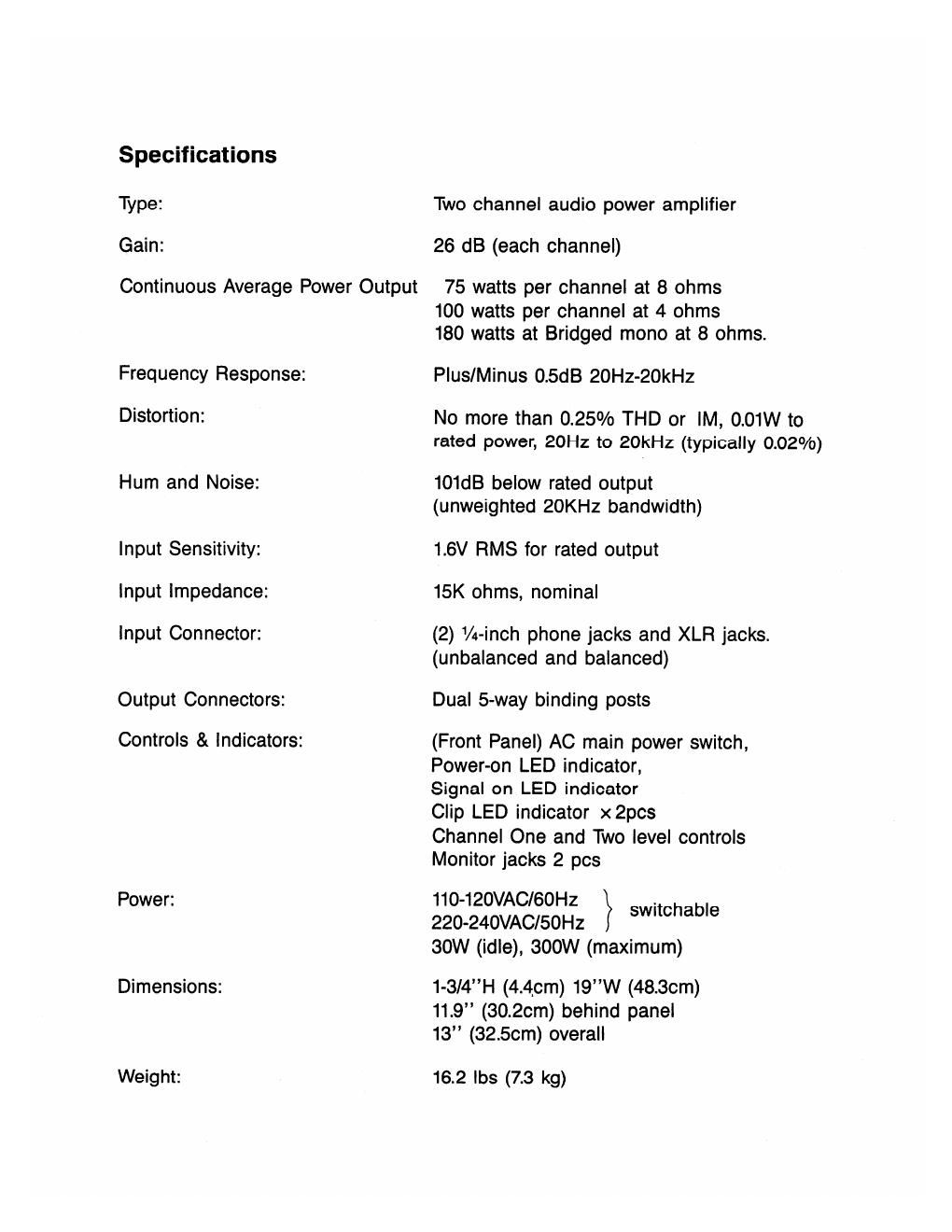

Page 1




Continuous Average Power Output

Frequency Response:


Hum and Noise:

Input Sensitivity:
Input Impedance:

Input Connector:

Output Connectors:

Controls & Indicators:




Two channel audio power amplifier
26 dB (each channel)

75 watts per channel at 8 ohms
100 watts per channel at 4 ohms
180 watts at Bridged mono at 8 ohms.

Plus/Minus 0.5dB 20Hz-20kHz

No more than 0.25% THD or IM, 0.01W to
rated power, 20Hz to 20kHz (typically 0.02%)

101dB below rated output
(unweighted 20KHz bandwidth)

1.6V RMS for rated output
15K ohms, nominal

(2) 1/.:-inch phone jacks and XLR jacks.
(unbalanced and balanced)

Dual 5-way binding posts

(Front Panel) AC main power switch,
Power-on LED indicator,

Signal on LED indicator

Clip LED indicator x2pcs

Channel One and Two level controls
Monitor jacks 2 pcs

110-120VAC/60Hz .
220-240VAC/50Hz } sw't°-ab'e
30W (idle), 300W (maximum)

1-3/4-H (4.40m) 19-W (48.3cm)
11.9- (30.20m) behind panel
13- (32.5cm) overall

16.2 lbs (7.3 kg)
