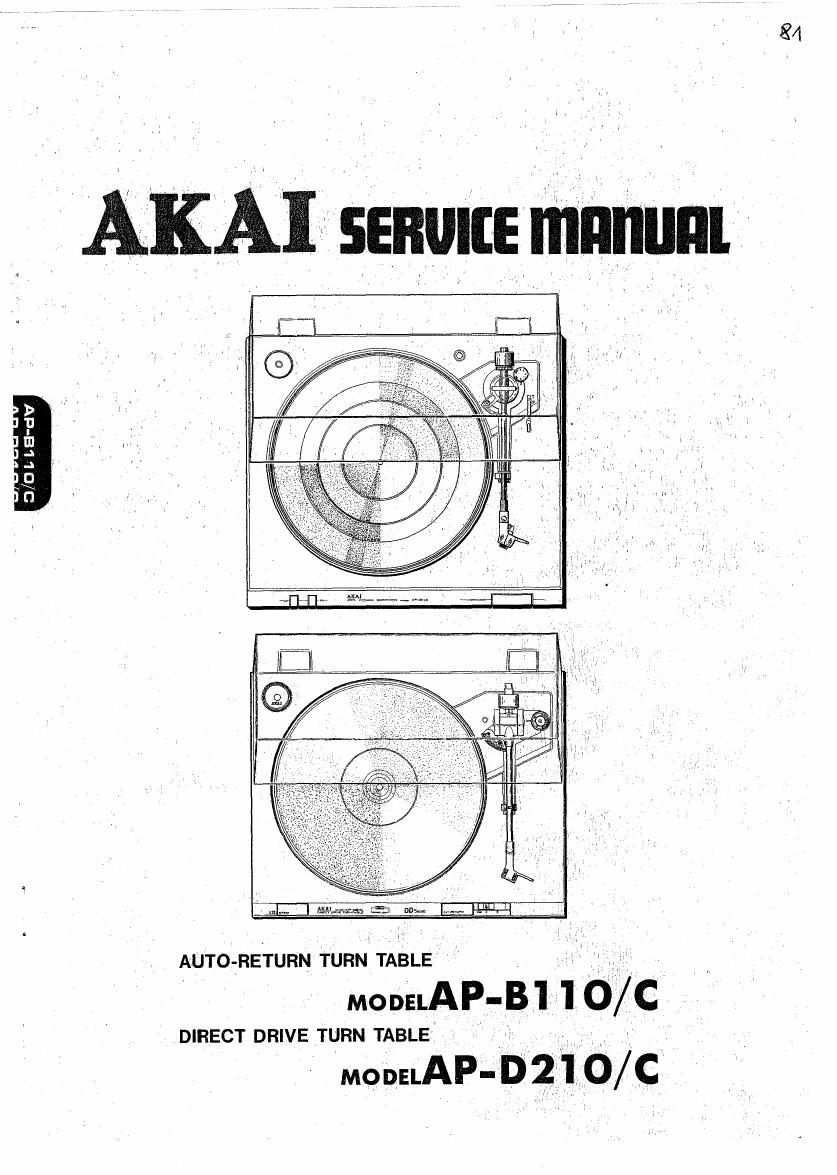

Akai AP B110 Service Manual

Extracted text from Akai AP B110 Service Manual (Ocr-read)


Page 2

SECTION 1
SECTION 2

AP-Bl 10/C

AP-DZIO/C

AUTO-RETURN TURN TABLE

MODELAP-Bllo/c
DIRECT DRIVE TURN TABLE
MODELAP-Dzlo/c
THIS MANUAL IS APPLICABLE TO BOTH SILVER AND BLACK PANEL MODELS
MODEL AP-Bl 10/C SERVICE MANUAL ..................... 3
MODEL AP-D210/C SERVICE MANUAL ..................... 13
PARTS LIST ........................................... 29

SECTION 3
SECTION 4

SCHEMATIC DIAGRAM .................................. 38

Page 8

AP-BllO/C

POWER SWITCH

RETURN ARM

OPERATION ARM

SPINDLE METAL

OTOR

REJECT SPRING

CUT/ RETURN
SW'TC s§&%ET%R

Fig. 2 Principal Parts Location (Bottom View)

Page 10

VI. ORDINARY ADJUSTMENT

AP-BllO/C

Fig. 5 Stylus Pressure Adjustment

1. STYLUS PRESSURE ADJUSTMENT
(Refer to Fig. 5)

. Connect the Power Cord.

. Turn the ANTISKATING Adjuster to 0.

. Set the Cueing lever to 1 .

. Unlock the Tone Arm and bring it towards the

Platter.
* Remove the Stylus Guard being careful not to
damage the Stylus.

5. With the Tone Arm held midway between the
Tone Arm Rest and the rim of the Platter, adjust
the Main Weight until the Tone Ann is in perfect
horizontal balance.

6. Without moving the Main Weight, rotate the .
Stylus Pressure Scale Ring only to match the 0
mark with the mark on the weight shaft.

7. Lock the Tone Arm is place and rotate the Main
Weight counterclockwise, as viewed from. the
front (the Stylus Pressure Scale Ring will move
with it), until the desired Stylus Pressure Scale in-
dication is at the mark on the shaft.

The range of adjustment is from 0 to 3 grams.

* For AP-BllOC only: The recommended Stylus
Pressure for the cartridge supplied, PC-8S, is 2
grams. -

8. Set the ANT ISKATING adjuster to the cone
spending Stylus Pressure. .

AWNH
