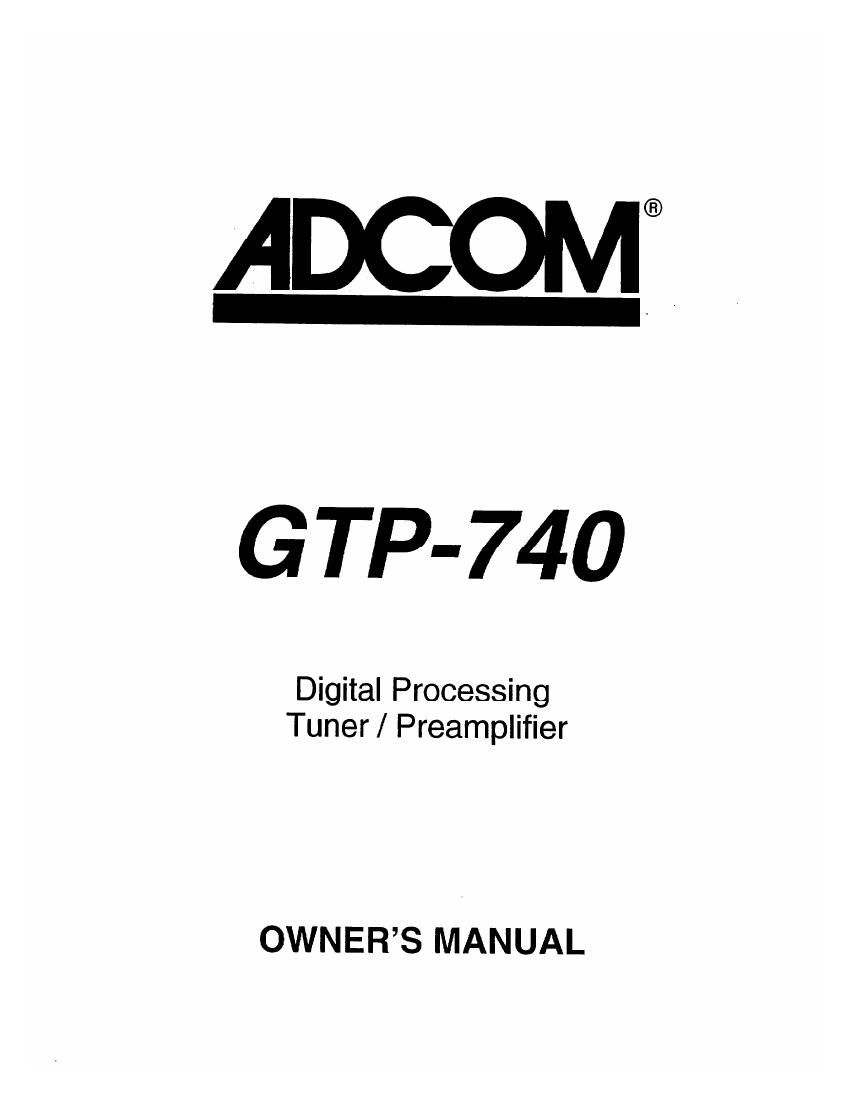

ADCOM®

G TP-740

Digital Processing
Tuner/ Preamplifier

OWNERS MANUAL

Page 2

This page should be picked up
from any Adcom manual second
page (inside front cover)

Page 21

1.3

30

51
52
53

55

The Remote Control

Source selectors
main
DVD
~VCR
tuner
v. aux Mdeo auxiliary)
CD
d. RF (digital RF) - digital LD
d. aux (digital auxiliary)
Power
Input selectors
Volume UplDown
Tuning UplDown
Guide
Menu
< (left arrow)
Up arrow/Pause
> (right arrow)
Down arrow/Stop
Select/Play
Direct access keypad
(1" through '1 0" and +10)
snm
FMIAM
Stereo
Smd (surround)
Enter
d. (dynamic) range
dialog
Level trim
Rear UplDown
Center UplDown
Sub UplDown
Bal. chk (balance check)
Dim
M1. M2. M3. M4 (Macro keys)
Room 2
Backlight
Mute

dialog roar center sub dim

®ffiO®®®O

4mg

The ADCOM universal remote controller is preset
to operate most GTP-74o functions (MAIN device
mode). GTP-740 AMIFM tuner functions (TUNER
device mode) and GOD-700I750 CD functions (CD
device mode.)

20

Page 32

3.1

3.2

What You Will Need

1) Decide which video format (composite or S-Video) you will use. After you've made that choice, follow
the instructions in the box titled Composite or S-Video in Section 1.2 to make sure your GTP-740 is
set properly.

2) Connect your monitor to the appropriate monitor output" on the GTP-740. Turn your monitor on,
verify that it is receiving a signal by pressing the remote controllers menu" button. Once you see the
on-screen menu's main screen. you're ready.

3) Make sure you have a sound level meter handy if you have access or wish to purchase one.

Although you can calibrate the GTP-740 surprisingly well using your ears alone.we
strongly suggest a sound level meter for greater accuracy. The Radio Shack meter
(catalog # 332050) is both Inexpensive and reasonably precise. Other sound level
meters offering improved accuracy and flexibility are available. In general. we find
meters with digital readouts less satisfactory for calibration work as the continuous
scale of an analog readout gives a more useful picture of sound level variations.

SETUP Screen (Main menu screen)

In composite video made, all menu screens will show white copy against a blue
background. The highlighted choice will show black letters agalnst a fight gray
rectangle.

you've selected S-Video made, all screens will show white copy against a dark
gray background. Highlighted choices show as black copy against a light gray
rectangle.

After youve connected your monitor to the GTP-740 and turned both units on. press the remote
controllers menu button once. The following screen will appear:

SETUP

1 INPUT SETTINGS

2 CHANNEL DELAYS
3 SPEAKER SIZE

4 CHANNEL BALANCE
5 EXIT

This screen is the first step in configuring your GTP-740 to best serve your needs. It provides quick
access to all other menu choices.

Input settings should be highlighted. It it is not, use the remote controllers UplDown arrow buttons to
move the cursor to INPUT SETTINGS and press the remotes Select button.

31
