Zenith p 60w26 np 00ka service manual
This is the 32 pages manual for zenith p 60w26 np 00ka service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from zenith p 60w26 np 00ka service manual (Ocr-read)

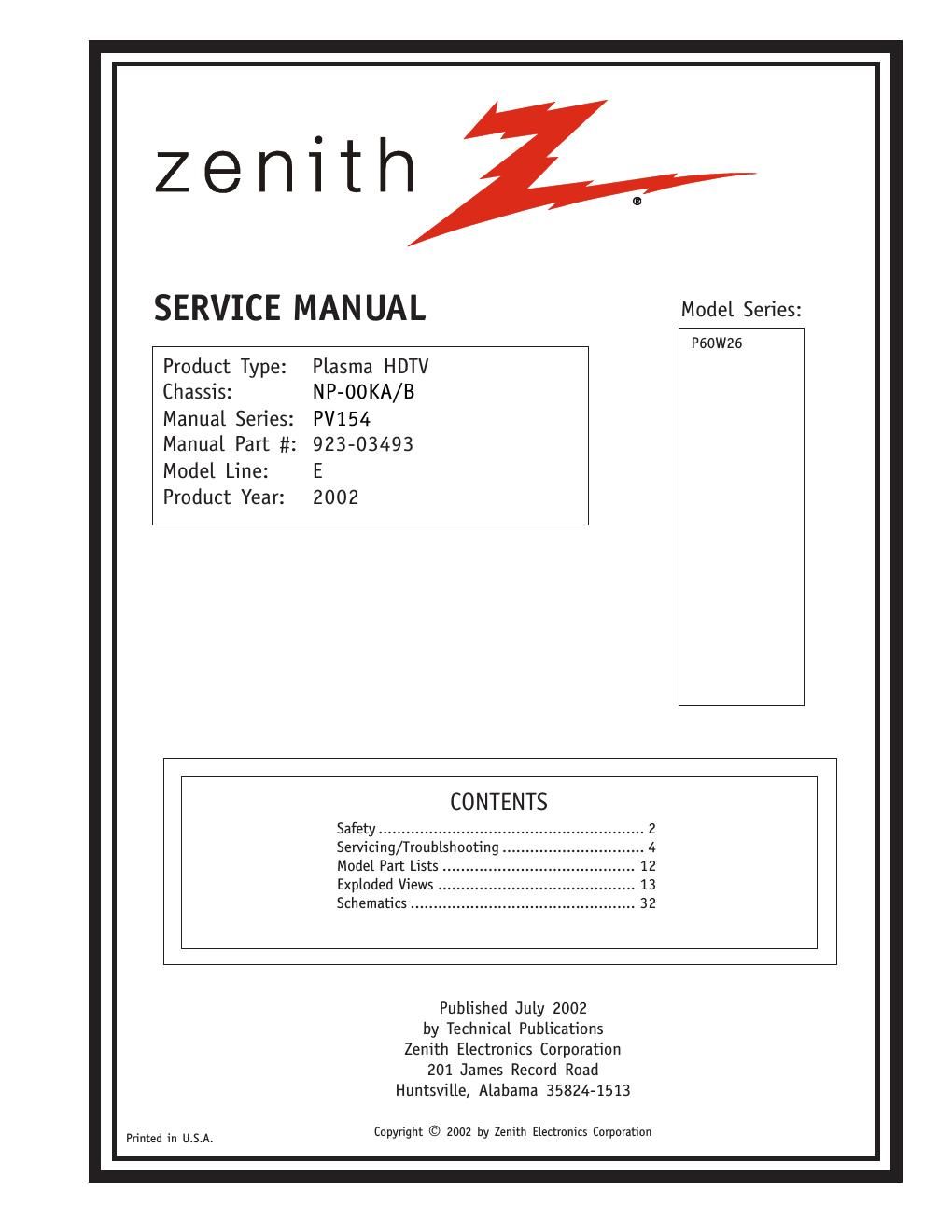

Page 1
PV154 - 923-03493 2 P60W26 - SAFETY PRODUCT SAFETY IMPORTANT SAFETY NOTICE This manual was prepared for use only by properly trained audio-visual service technicians. When servicing this product, under no circumstances should the original design be modified or altered without permission from Zenith Electronics Corporation. All components should be replaced only with types identical to those in the original circuit and their physical location, wiring and lead dress must conform to original layout upon completion of repairs. Special components are also used to prevent x-radiation, shock and fire hazard. These components are indicated by the letter x included in their component designators and are required to maintain safe performance. No deviations are allowed without prior approval by Zenith Electronics Corporation. Circuit diagrams may occasionally differ from the actual circuit used. This way, implementation of the latest safety and performance improvement changes into the set is not delayed until the new service literature is printed. CAUTION: Do not attempt to modify this product in any way. Never perform customized installations without manufacturers approval. Unauthorized modifications will not only void the warranty, but may lead to property damage or user injury. Service work should be performed only after you are thoroughly familiar with these safety checks and servicing guidelines. GRAPHIC SYMBOLS The exclamation point within an equilateral triangle is intended to alert the service personnel to important safety information in the service literature. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the service personnel to the presence of noninsulated dangerous voltage that may be of sufficient magnitude to constitute a risk of electric shock. The pictorial representation of a fuse and its rating within an equilateral triangle is intended to convey to the service personnel the following fuse replacement caution notice: CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND RATING AS MARKED NEAR EACH FUSE. SERVICE INFORMATIONWhile servicing, use an isolation transformer for protection from AC line shock. After the original service problem has been corrected, make a check of the following: FIRE AND SHOCK HAZARD1 . Be sure that all components are positioned to avoid a possibility of adjacent component shorts. This is especially important on items trans- ported to and from the repair shop. 2 . Verify that all protective devices such as insulators, barriers, covers, shields, strain reliefs, power supply cords, and other hardware have been reinstalled per the original design. Be sure that the safety purpose of the polarized line plug has not been defeated. 3. Soldering must be inspected to discover possible cold solder joints, solder splashes, or sharp solder points. Be certain to remove all loose foreign particles. 4 . Check for physical evidence of damage or deterioration to parts and components, for frayed leads or damaged insulation (including the AC cord), and replace if necessary. 5 . No lead or component should touch a receiving tube or a resistor rated at 1 watt or more. Lead tension around protruding metal surfaces must be avoided. 6 . After reassembly of the set, always perform an AC leakage test on all exposed metallic parts of the cabinet (the channel selector knobs, antenna terminals, handle and screws) to be sure that set is safe to operate without danger of electrical shock. DO NOT USE A LINE ISOLATION TRANS- FORMER DURING THIS TEST. Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the following manner: Connect a 1500 ohm, 10 watt resistor, paralleled by a .15 mfd 150V AC type capacitor between a known good earth ground water pipe, conduit, etc.) and the exposed metallic parts, one at a time. Measure the AC voltage across the combination of 1500 ohm resistor and .15 mfd capacitor. Reverse the AC plug by using a non-polarized adaptor and repeat AC voltage measurements for each ex- posed metallic part. Voltage measured must not exceed 0.75 volts RMS. This corresponds to 0.5 milliamp AC. Any value exceeding this limit constitutes a potential shock hazard and must be corrected immediately. TIPS ON PROPER INSTALLATION1 . Never install any receiver in a closed-in recess, cubbyhole, or closely fitting shelf space over, or close to, a heat duct, or in the path of heated air flow. 2 . Avoid conditions of high humidity such as: outdoor patio installations where dew is a factor, near steam radiators where steam leakage is a factor, etc. 3 . Avoid placement where draperies may obstruct venting. The customer should also avoid the use of decorative scarves or other coverings that might obstruct ventilation. 4 . Wall- and shelf-mounted installations using a commercial mounting kit must follow the factory-approved mounting instructions. A product mounted to a shelf or platform must retain its original feet (or the equivalent thickness in spacers) to provide adequate air flow across the bottom. Bolts or screws used for fasteners must not touch any parts or wiring. Perform leakage tests on customized installations. 5 . Caution customers against mounting a product on a sloping shelf or in a tilted position, unless the receiver is properly secured. 6 . A product on a roll-about cart should be stable in its mounting to the cart. Caution the customer on the hazards of trying to roll a cart with small casters across thresholds or deep pile carpets. 7 . Caution customers against using a cart or stand that has not been listed by Underwriters Laboratories, Inc. for use with its specific model of television receiver or generically approved for use with TVs of the same or larger screen size. 8 . Caution customers against using extension cords. Explain that a forest of extensions, sprouting from a single outlet, can lead to disastrous consequences to home and family.
Page 2
PV154 - 923-03493 3 P60W26 - SERVICING IMPORTANT SAFETY NOTICE .................................. 2 TABLE OF CONTENTS............................................ 3 GENERAL INFO................................................... 5 FEATURES ..................................................... 5 SPECIFICATIONS ............................................. 5 FRONT.......................................................... 7 BACK........................................................... 7 REMOTE CONTROL........................................... 8 INSTALLATION................................................ 9 CONNECTING A COMPUTER................................ 9 USER MENUS ................................................... 10 APC (AUTO PICTURE CONTROL) ....................... 10 DRP (DIGITAL REALITY PICTURE) .................... 10 PICTURE SETTINGS ....................................... 10 MENU LANGUAGE SETUP ................................ 10 SLEEP TIMER ............................................... 10 STILL FUNCTION ........................................... 10 SCREEN....................................................... 11 TRANSPARENCY............................................. 11 SET ID ........................................................ 11 COLOR TEMPERATURE.................................... 11 DASP (DIGITAL AUTO SOUND PROCESSING) ........ 11 AVL (AUTO VOLUME LEVELER) ......................... 11 ADJUSTING SOUND....................................... 11 PICTURE FORMAT ......................................... 12 ADJUSTMENT INSTRUCTIONS............................... 13 POWER PCB ASSY VOLTAGE ADJUSTMENT ........... 13 ADJUSTMENT WHITE BALANCE......................... 13 SERVICE MENU ............................................. 15 TROUBLE SHOOTING NO VIDEO ........................ 16 TROUBLE SHOOTING NO POWER ....................... 16 TROUBLE SHOOTING ABNORMAL PICTURE .......... 17 TROUBLE SHOOTING NO SOUNDS ...................... 17 MODEL PARTS .................................................. 18 P60W26..................................................... 18 DIAGRAMS...................................................... 19 EXPLODED VIEW........................................... 19 POWER BLOCK DIAGRAM ................................ 20 VSC BLOCK DIAGRAM ..................................... 21 SCHEMATICS.................................................... 22 INTERCONNECT............................................. 22 CIRUIT....................................................... 23 CIRUIT....................................................... 24 CIRUIT....................................................... 25 CIRUIT....................................................... 26 MAIN & POWER PCB LAYOUT ........................... 27 SMPS PCB LAYOUT ........................................ 28 OTHER PCB LAYOUTS ..................................... 29 TABLE OF CONTENTS
