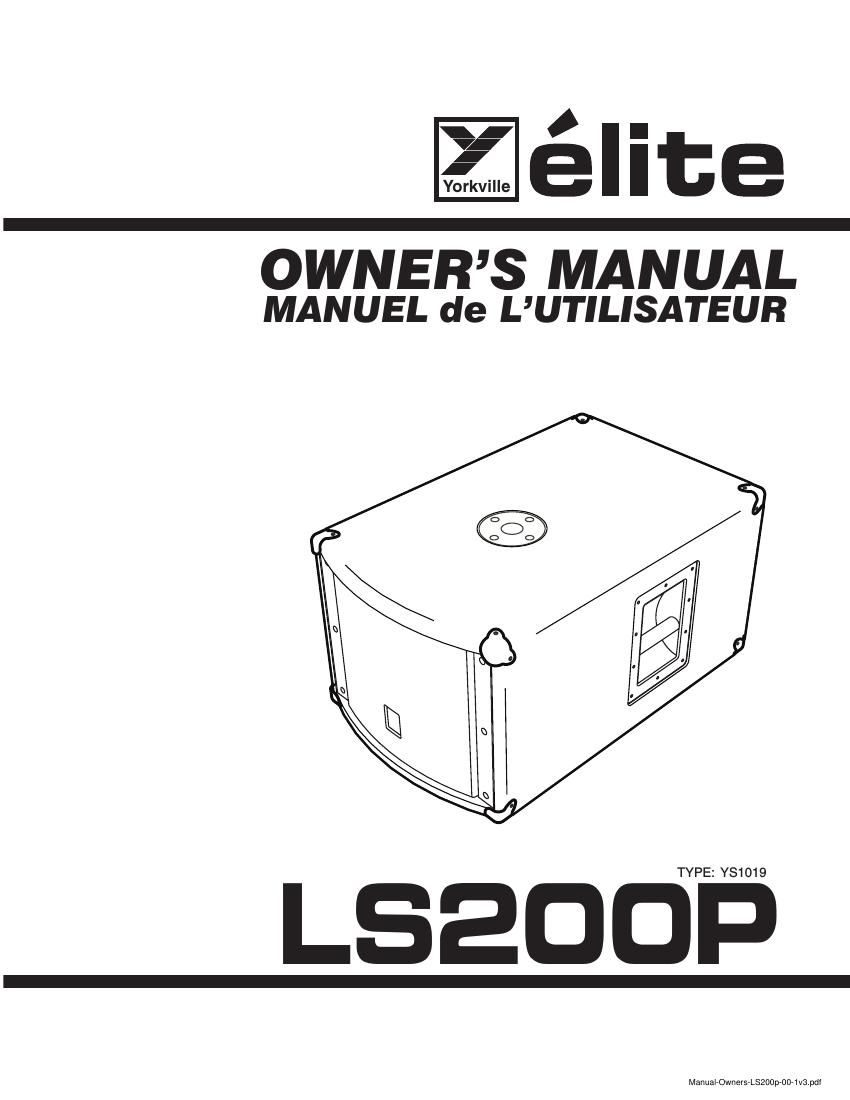

yorkville ls 200 p owners manual

Extracted text from yorkville ls 200 p owners manual (Ocr-read)


Page 1

IMPOR TANT SAFETY INSTR UCTIONS safety-4v3.eps - Oct. 26/05 CA UTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NO T REMO VE CO VER (OR BA CK). NO USER SER VICEABLE PA RTS INSIDE. REFER SER VICING TO QU ALIFIED SER VICE PERSONNEL. INSTR UCTIONS PER TA INING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJUR Y TO PERSONS Read Instructions The Owner s Manualshould be read and understood bef ore operation of y our unit. Please , sa ve these instr uc- tions f or future ref erence . Pa ck agin g Keep the bo x and pac kaging mater ials, in case the unit needs to be retur ned f or ser vice . Wa rning When using electr ic products , basic precautions should alw ays be f ollo wed, including the f ollo wing: Po wer Sour ce s Your unit should be connected to a po wer source only of the v oltage specified in the o wners manual or as mar ked on the unit. This unit has a polar ized plug. Do not use with an e xtension cord or receptacle unless the plug can be fully inser ted. Precautions should be tak en so that the grounding scheme on the unit is not def eated. Hazar ds Do not place this product on an unstab le car t, stand, tr ipod, bra cket or table. The product ma y fall, causing ser ious personal injur y and ser ious damage to the product. Use only with car t, stand, tr ipod, bra cket, or table recommended by the manuf acturer or sold with the product. Follow the manuf acturer s instr uctions when installing the product and use mounting accessor ies recommended by the manuf acturer . The apparatus should not be e xposed to dr ipping or splashing w ater ; no objects filled with liquids should be placed on the apparatus . Terminals mar ked with the lightning bolt are hazardous li ve; the exter nal wir ing connected to these ter minals require installation by an instr ucted person or the use of ready made leads or cords . Ensure that proper v entilation is pro vided around the appliance . No nak ed flame sources , such as lighted candles , should be placed on the apparatus . Po wer Cor d The AC supply cord should be routed so that it is unlik ely that it will be damaged. If the AC supply cord is damaged DO NO T OPERA TE THE UNIT . ServiceThe unit should be ser viced only by qualified ser vice personnel. A VIS: AFIN DE REDUIRE LES RISQUE DE CHOC ELECTRIQUE,NENLEVEZ P AS LE COUVER T (OU LE P ANNEA U ARRIERE) NE CONTIENT AU CUNE PIECE REP ARABLE P AR LUTILISA TEUR. CONSU LT EZ UN TECHNICIEN QU ALIFIE POUR L ENTRETIENT INSTR UCTIONS RELA TIVES AU RISQUE DE FEU , CHOC ÉLECTRIQUE, OU BLESSURES AU X PERSONNES Ve uillez Lire le Manuel Il contient des inf ormations qui de vraient êtres compr ises avant lopération de v otre appareil. Conser vez S.V.P. ces instr uctions pour consultations ultér ieures . Emballage Conser vez la boite au cas ou lappareil de vait être retour ner pour réparation. Attention : Lors de lutilisation de produits électr ique , assurez- vous dadhérer à des précautions de bases incluant celle qui suiv ent: AlimentationLappareil ne doit être branché quà une source dalime\ ntation correspondant au v oltage spécifié dans le manuel ou tel quindiqué sur lappareil . Cet appareil est équipé dune pr ise dalimentation polar isée . Ne pas utiliser cet appareil avec un cordon de raccordement à moins quil soit possib le dinsérer complètement les trois lames . Des précautions doiv ent êtres pr ises afin de viter que le système de mise à la terre de lappareil ne soit désengagé. RisqueNe pas placer cet appareil sur un char iot, un suppor t, un trépied ou une table instab les. Lappareil pourrait tomber et b lesser quelquun ou subir des dommages impor tants . Utiliser seulement un chariot, un suppor t, un trépied ou une ta ble recommandés par le f abr icant ou v endus avec le produit . Suivre les instructions du f abr icant pour installer lappareil et utiliser les accessoires recommandés par le f abr icant. Il con vient de ne pas placer sur lappareil de sources de flammes nues, telles que des bougies allumées . Lappeil ne doit pas être e xposé à des égouttements deau ou des éclaboussures et quaucun objet rempli de liquide tel que des v ases ne doit être placé sur lappareil . Assurez que lappareil est f our ni de la propre v entilation. Les dispositifs marqués dune symbole déclair sont des par ties dangereuses au toucher et que les câb lages e xtér ieurs connectés à ces dispositifs de connection e xtér ieure doiv ent être eff ectivés par un opérateur formé ou en utilisant des cordons déjà préparés . Cor don dAlimentatio n Évitez dendommager le cordon dalimentation. NUTILISEZ P AS LAPP AREIL si le cordon dalimentation est endommagé. ServiceConsultez un technicien qualifié pour lentretien de v otre appareil .

Page 2

 IntroductionThe LS200P powered subwoofer incorporates a 200 Watt amplifier. It can be used to enhance the bottom end (bass) of a full-range speaker system and increase the overall output of the system. The inputs to the subwoofer can accept a single source either from a speaker/amplifier output or a line level output from a pre-amp or mixer. The LS200P also has a built in limiter and thermal protection that make this product smooth and robust at high power levels. The internal limiter and the internal protection are factory set to maximize performance. LS200P Yorkville DESIGNED & MANUFACTURED BY YORKVILLE SOUND - TORONTO, CANADA POWER SUBWOOFERLEVEL POWERON IN P U T PARALLELTHRU INPUTGROUND INPUT LEVELUNGROUNDEDGROUNDED SPEAKERLINE Yorkville 230V 50Hz1.1A 120V 60Hz2.2A CAUTION: REPLACE WITH SAME TYPE FUSE AND RA TING ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE ET CALIBRE T 1,25A L +3 -3 -6 +10 +25 +20 dB 0 1 2 3 4 5 6 1. Power Switch 2. VolumeSet the volume control to a desired level as music is being played through the unit. A setting of 0 dB on the SUBWOOFER LEVEL control is the correct starting point when setting up a sound system. From there the sound can be adjusted for best sound. The 0 dB mark refers to the setting that will give full power when the line input is used and the input signal is at a level of +4 dBV. This also is the setting to give a sensitivity of 2.83 Vrms (1 watt 8-ohms) for 100 dB spl when set for speaker level input. With a typical full range companion speaker this will give flat response. In either line or speaker operation it will usually be desireable to set the control at +3 to +6 to give some bass boost at low power levels. At levels approaching full power the built-in limiter will automatically reduce the gain to prevent over powering the subwoofer. Operation with settings significantly above +12 may clip the circuitry in the subwoofer reducing the dynamics of the music. Setting the subwoofer gain above +12 is only appropiate at low operating levels. 3. Ground Lift If a hum, or buzz is detected from the subwoofer, try setting the switch to the GND LIFT position (OUT position). The switch should otherwise be left in the GND (IN position). 4. Input Level Switch Speaker Normally, the input to the subwoofer is from a full-range speaker cabinet, or amplifier output. (See figure 2.0) Line In this case, the input to the subwoofer is from a line level source such as a mixer. 5. Input JacksThe two inputs are balanced 1/4 inch parallel jacks and can be connected as shown in figures 2 and 3, on the following page. Please note that there is no effect to the performance of the full-range speaker if it is used to supply a music signal to the LS200P. 6. Power ON LED
