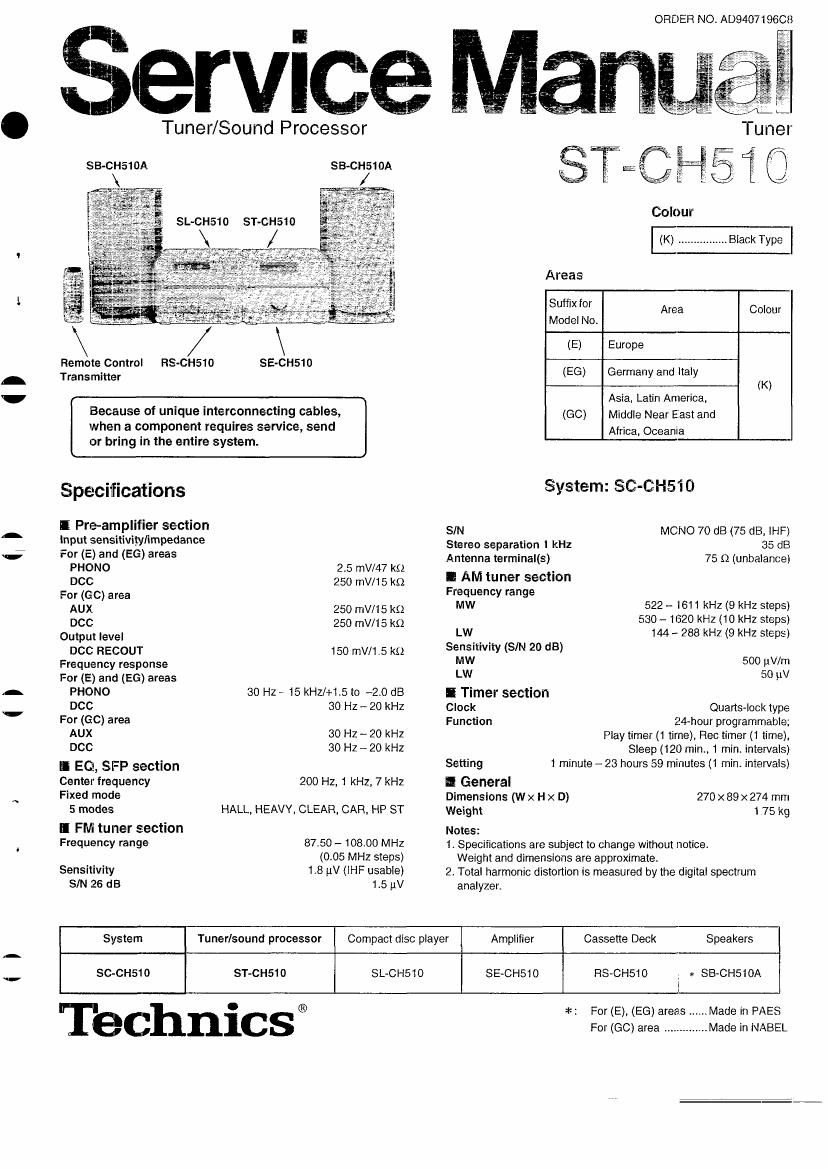

Technics STCH 510 Service Manual

This is the 14 pages manual for Technics STCH 510 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 14
Technics STCH 510 Service Manual

Extracted text from Technics STCH 510 Service Manual (Ocr-read)


Page 2

sT-CH51U

l Contents

0 Location of Controls
I Setting the Time ......
0 Operation Check and

Main Component Replacement Procedures 3, 4
0 Schematic Diagram ................ 5~16
0 Printed Circuit Board Diagram . 17~20

NOTE:

- Wiring Connection Diagram
OBlock Diagram

0 Power Supply with Tuner ST~CH510 .
O FunCtion of IC Terminals.
0 Replacement Parts List
o Cabinet Parts Location.

Refer to the service manual for Model No. SE-CH510 (ORDER No. AD9407197C8) for information on Accessories",

"Stacking the Components, Connections and Packaging.

player).

This unit (tuner/sound processor ST-CH510) is equipped with a self-diagnostic function.
For details of the self-diagnostic function, refer to the service manual (ORDER No. AD940719162) for SL-CH510 (CD

I Location of Controls

© Auto preset button

(29 Remote control signal sensor

@ Display section

@ Source input select button

© FM button

Tuner indicator

® LWIMW select button

Flat button

© EQ SPACE mode select button

KARAOKE mode select button

63 V.bass button

® Tuning/select button and indica-
tors

® Clock/timer button

Record timer button

(9 Play timer button

® Set button and indicator

(To be continued)

I Setting the Time

This is a 24-hours display clock.
These instructions explain how to set the
timer for 16:25 (4:25 pm.) on Wednesday.

1 Switch on the power.

2 ® Press CLOCK/TIMER to show
CLOCK.
Within 8 seconds
® Press SET.

3 a) Press <1 SELECT or SELECT
D to select the day.
® Press SET.

4 @ Press <1 SELECT or SELECT
D to select the hour.
® Press SET.
5 (D Press <1 SELECT or SELECT
D to select the minutes.
(2) Press SET to finish setting
the time.

The display will return to the previous
display after about 2 seconds.

is @@ @oooo

When SUN 0:00" flashes I!

it flashes when you connect the AC power
supply cord for the first time or ii there has
been a power failure.

If this happens, reset the time.

if the minutes setting has gone

wrong:

1. Press CLOCK/TIMER.

2. Press 85' 3 times.

3. Press the minutes, and then press SET.

To display the Clock again:

Press CLOCK/TIMER.

The clock display will appear for about
8 seconds.

i i I
