Technics SLXP 190 Service Manual

Extracted text from Technics SLXP 190 Service Manual (Ocr-read)

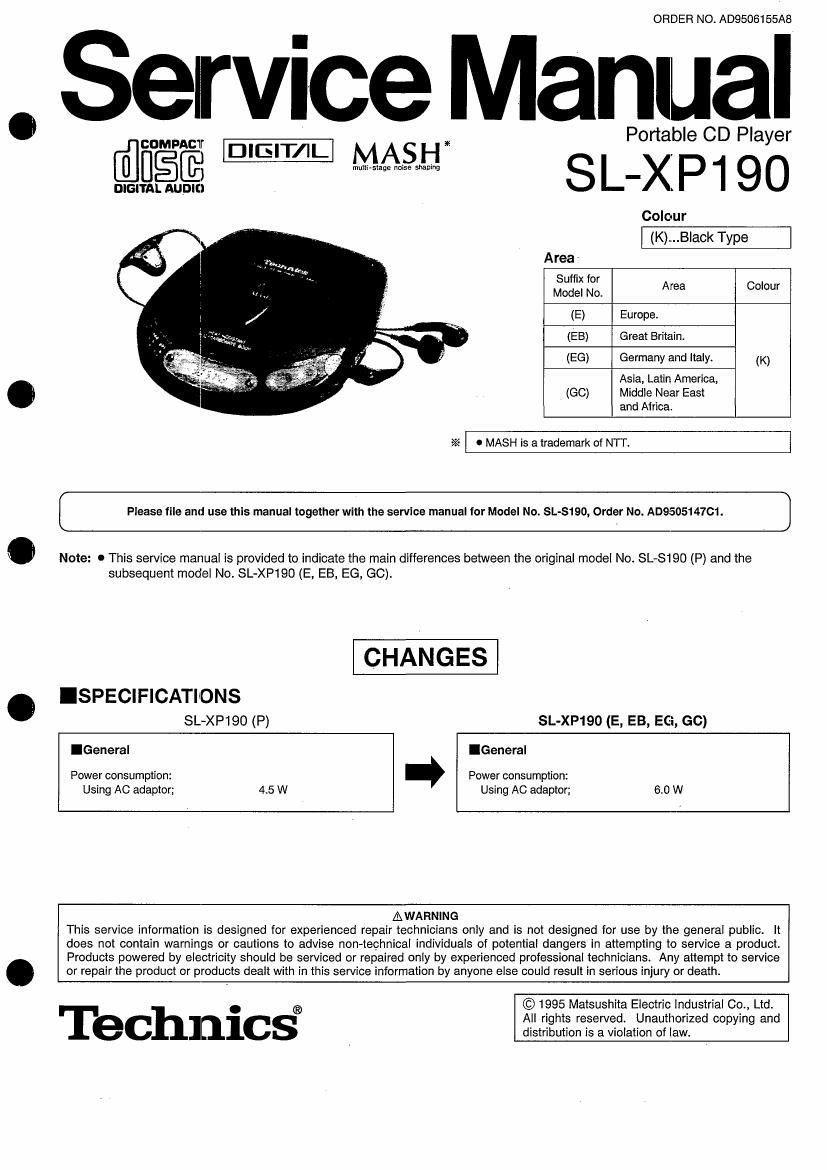

Page 1

@COMM@ m MASH

mulli slag: noise shaving

DIGITUIL AUDICD

X

ORDER NO AD9506155A8

Service Manual

Portable CD Player

SI.- XP19O

Colour
Area '
3313;): Lo;- Area Colour
(E) Europe.

(EB) Great Britain.

(EG) Germany and Italy. (K)
Asia, Latin America,

(60) Middle Near East
and Africa.

- MASH is a trademark of NTT. i

{ Please file and use this manual together with the service manual for Model No. SL-S190, Order No. AD950514761. J

. Note: I This service manual is provided to indicate the main differences between the original model No. SL-S190 (P) and the

subsequent model No. SL-XP190 (E, EB, EG, GC).

CHANGES

. ISPECIFICATIONS
SL-XP190 (P)

SL-XP190 (E, EB, EGi, Go)

IGeneral

Power consumption:

Usrng AC adaptor; 4.5 W

IGeneral

Power consumption:
Using AC adapter;

6.0 W

AWARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service

Technics®

© 1995 Matsushita Electric industrial 00., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SL-XP190

.PRECAUTION OF LASER DIODE

CAUTION:

Act-ITUNG:

This product utilizes a laser diode with the unit turned on, invisible laser radiation is emitted from the pickup lens.
Wave length: 800 nm
Maximum output radiation power from pickup: 100uWNDE

Laser radiation from the pickup lens is safety level, but be sure the followings:

1. Do not disassemble the optical pickup unit, since radiation from exposed laser diode is dangerous. _
2. Do not adjust the variable resistor on the pickup unit. it was already adjusted.

3. Do not look at the focus lens using optical instruments.

4. Recommend not to look at pickup lens for a long time.

Dieses Produkt enthalt eine Laserdiode. lm eingeschalteten Zustand wird unsichtbare Laserstrahlung von der
Lasereinheit abgestrahlt.

Wellenlange: 800 nm
Maximale Strahlungesleistung der Lasereinheit: 100pW/VDE

Die Strahlung an der Lasereinheit ist ungefahrlich, wenn tolgende Punkie beachtet werden:

1. Die Lasereinheit nicht zerlegen, da die Strahlung an der freigelegten Laserdiode gefahrlich ist.
2. Den werkseltig justierten Einstellregler der Lasereinheit nicht verstellen.

3. Mom mit optischen lnstrumenten in die Fokussierlines blicken.

4. Nicht iJber langere Zeit in die Fokussierlines blicken.

ADVARSEL: I dette a apparat anvendes laser.

CAUTION!

THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

RQLSOO77-2

CLASS I
LASER PRODUCT imitlxztisxm

laselsiuilylle
Mi kaim siieesan.

Auvmzuusvuun umsmfiuuc Emma: (is -
. . . ynlig
veu mums. m srxxmricusar- laserslrilnins nar Henna
BRVDE'I'IE [I] lIflE AF IMHO! I al upnld MI!
manna unstrmst ma 51mm m"... a ""0"-
Betrakla e5 mien,

anvznsgu Usvnlig
umr-m; mu uMm when will limsm'i"? "5' "2"
Mnkmggqullnelun ml interlock Mural was: on sxkkzrhedglu
sicimhmmnieggm Avmn nmicr [x- hm "we
rimm- um km POSHRE in new manning In: nralcn
5mm min-i ROLSDO77-2

(Bottom Side)

Page 7

I POWER SUPPLY PREPARATIONS

Using the rechargeable batteries

Make sure that the rechargeable batteries
have been recharged before use.

Recharging procedure:

1 Place the rechargeable batteries
inside the unit.
(No batteries other than RP-BP60
/SH

it the battery compartment lid becomes dis-
engaged, position it horizontally and press it
back into position.

2 Connect the AC adaptor.
DC IN jack (DC IN 4.5 v (9.94))


Back panel
of the unit
AC adaptor

It takes about 3 hours to fully recharge the
batteries.

IACCESSORIEES

AC adaptor
(RFEA4056-1W) ............... 1 pct

Rechangeable batteries ......

(RP-BPGOPYS)

.. 2pcs.

3 Upon completion of the recharg-
ing, disconnect the AC adaptor
from the DC lN jack and power
outlet.

Removing the batteries
Push the batteries upward in the direction of
the arrow to remove them.

a;

OThe batteries can be used for about
10 months (300 times) it they are used
every day.

They will need to be replaced if the dura-
tion of their operation drops drastically.

OYou can operate the unit with the AC adap-
tor while recharging the batteries, but it will
lengthen the recharging time.

URecharglng should be performed at 0°C-
40°C (32°F-104°F).

OWhiIe recharging. the AC adaptor and re
chargeable batteries may get warm. This is
normal.

Using the dry cell batteries
(not included)

Disconnect the AC adaptor and then install
two AA size (LRG) alkaline batteries.

The batteries are inserted and removed
_in the same way as for the rechargeable
batteries.

Using the AC adaptor

Connect the AC adaptor supplied.

Refer to the section on Using the rechar-
geable batteries" tor details on the con-
nections.

Stereo headphones
(FtP-HTtOBDPYS) .............. 1 pc.

SL-S190

Using the car adaptor
(not included)

CAUTION:

Use only car adaptor, Model: SH-CDCQ
manufactured by Matsushita Electric
Industrial Co., Ltd.

Be sure to obtain the car adaptor
(SH-CD09), available as an optional acces-
sory.

The batteries can be recharged inside the
car using the car adaptor,

Battery indicator

Battery indicator

It starts flashing when the batteries have run
down. After a short while the power is auto-
matically cut off.

(The amount of time the unit will continue to
play after the indicator has started flashing
differs slightly, depending on the type of bat-
teries used.)

Type of .

battery Action
Recharge- Recharge the batteries
able again
batteries
Dry cell Replace with new
batteries batteries.

(The battery indicator may not flash if re-
chargeable batteries, other than those des-
ignated by Panasonic. are used.)

Wired remote controller ........ 1 pc.
(EURHJBSO-2)

Battery Carrying Case .......... 1 pc.
(RFKNLS370-K)
