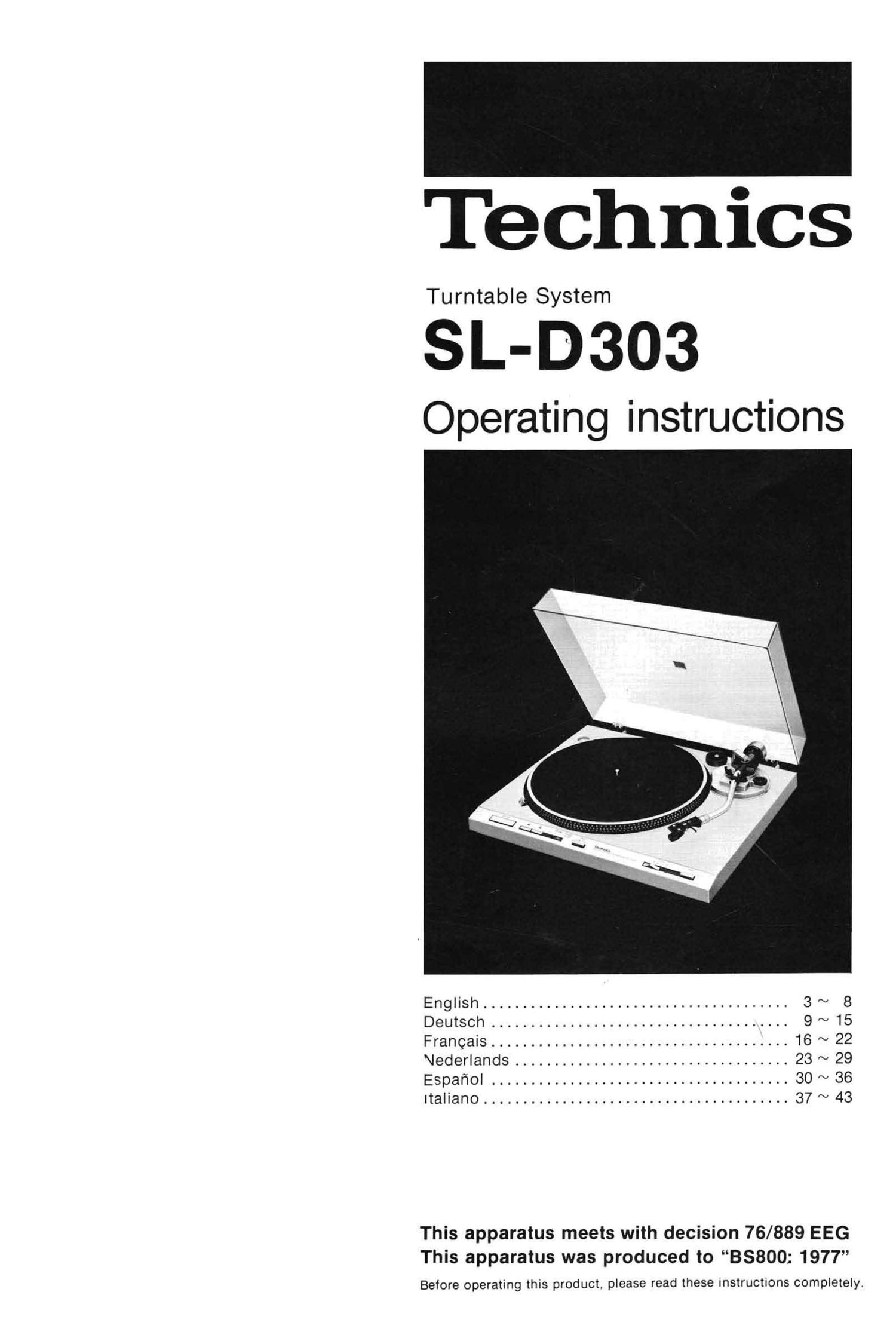

Page 1

Technics

Turntable System

SL-D303

Operating instructions

English ....................................... 3 ~ 8
Deutsch ...................................... 9 ~ 15
Francais ...................................... 16 ~ 22
\lederlands ................................... 23 ~ 29
Espafiol ...................................... 30 ~ 36
Italiano ....................................... 37 N 43

This apparatus meets with decision 76/889 EEG
This apparatus was produced to 38800: 1977

Before operating this product. please read these instructions completely.

Page 2

Parts identification

Hinge

Headshell stand

Turntable base

Turntable mat

Record size sensor

Turntable platter

Strobe-illuminator/
pilot lamp

Start/stop switch

Speed selectors

45-rpm adaptor

Counterweig ht

Weight ring

Anti-skating control

Arm rest

Arm clamp

Tonearm

Locking sleeve

Headshell/cartridge

Power switch
(off 1. on ..)

Pitch control

Cueing control

Repeat switch
(off .1 on ;)

Caution for safe use of this apparatus
(For UNITED KINGDOM)

Caution

o This apparatus is double insulated. safety earth not

required.

Important

oThe wires in this mains

lead are coloured

accordance with the following code:

Blue:
Brown:

Neutral
Live

in

As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug.
proceed as follows.

The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or
coloured BLACK. The wire which is coloured BROWN
must be connected to the terminal which is marked with
the letter L or coloured REC.

This equipment should be disconnected from the
mains when not in use.

Warning: To prevent fire or shock hazard,
do not expose this appliance to rain or moisture.

_1_
