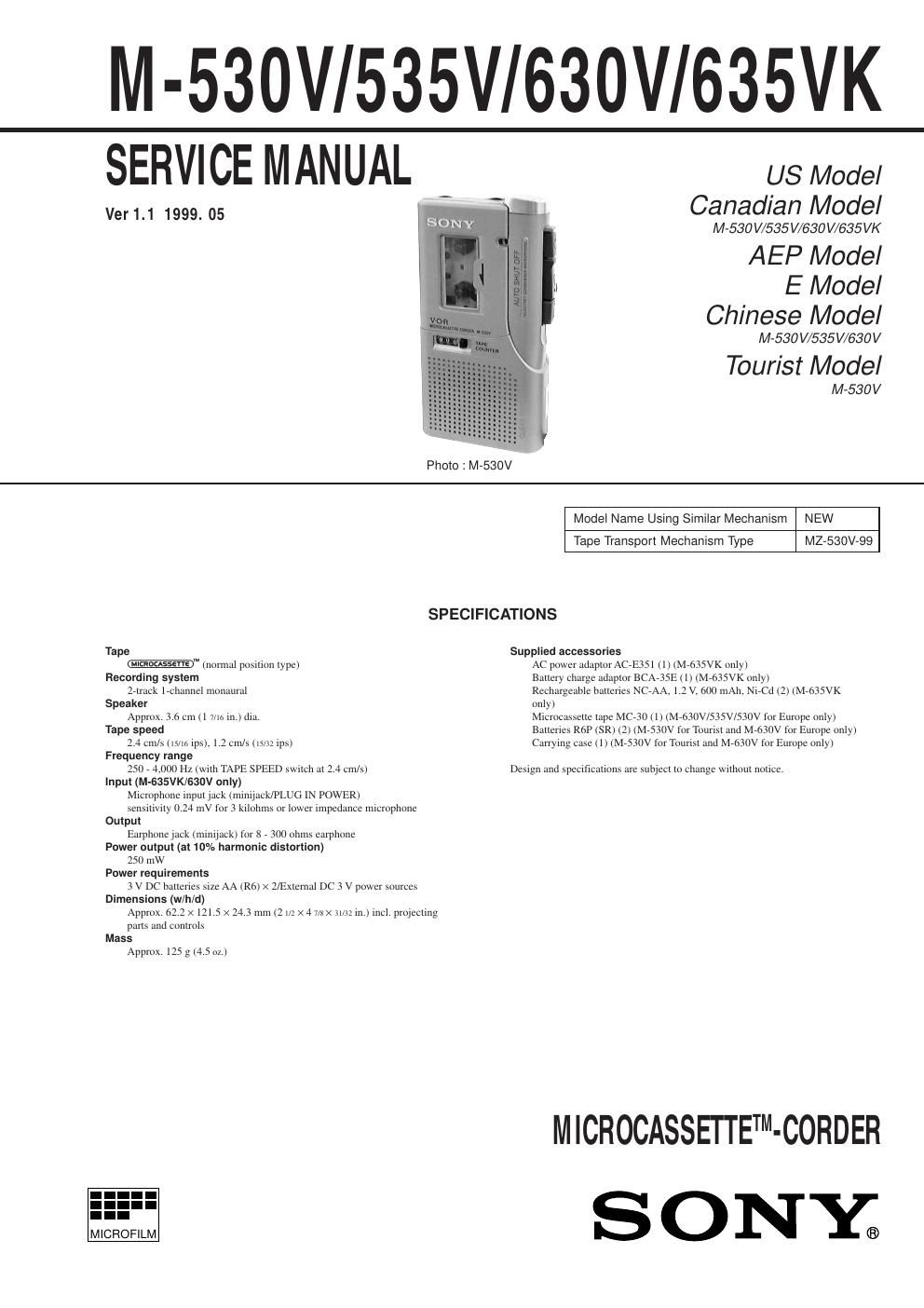

Sony m 530 v service manual
This is the 18 pages manual for sony m 530 v service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony m 530 v service manual (Ocr-read)
Page 1
Ð 2 Ð TABLE OF CONTENTS Flexible Circuit Board Repairing ·Keep the temperature of the soldering iron around 270ûC during repairing. ·Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ·Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement ·Never reuse a disconnected chip component. ·Notice that the minus side of a tantalum capacitor may be dam- aged by heat. 1. GENERAL.................................................................... 3 2. DISASSEMBLY 2-1. Lid Assy, Cassette ............................................................... 4 2-2. Lid, Battery Case ................................................................ 5 2-3. Cabinet (Rear) Assy ............................................................ 5 2-4. Main Board ......................................................................... 6 2-5. Mechanism Deck ................................................................. 6 2-6. LED Unit ............................................................................. 7 2-7. Head, Ceramic (HRPE901) ................................................. 7 3. MECHANICAL ADJUSTMENTS.............................. 8 4. ELECTRICAL ADJUSTMENTS............................... 8 5. DIAGRAMS 5-1. Block Diagram .................................................................. 11 5-2. Printed Wiring Board ........................................................ 13 5-3. Schematic Diagram ........................................................... 15 6. EXPLODED VIEWS 6-1. Cabinet Section ................................................................. 17 6-2. Mechanism Deck Section .................................................. 19 7. ELECTRICAL PARTS LIST..................................... 20 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ!! LES COMPOSANTS IDENTIFIƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéCES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPLƒMENTS PUBLIƒS PAR SONY.
Page 2
Ð 3 Ð SECTION 1 GENERAL This section is extracted from instruction manual.
