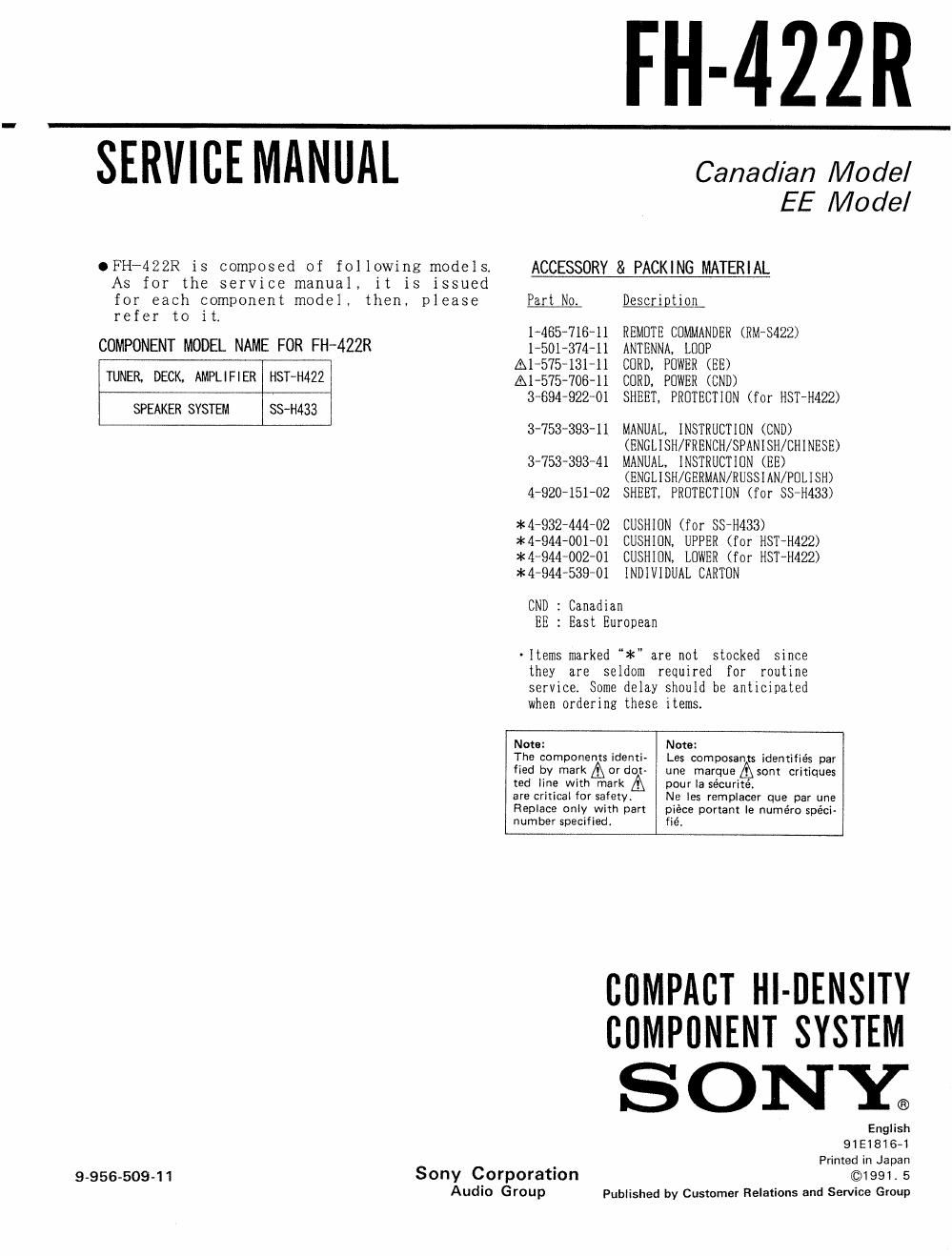

FH-422R
SERVICE MANUAL
OFH-422R is composed of following models
As for the service manual, it is issued
for each component mode], then, please
refer to it
COMPONENT MODEL NAME FOR FH-422R
TUNER DECK, AMPLIFIER HST-H422
SPEAKER SYSTEM SS-H433
Canadian Model
EE Model
ACCESSORY 8c PACKING MATERIAL
Em
l-465-716nll
l-501~374-Il
131-575-131-11
A:l-575-706~ll
3-694-922-01
3-753393-11
3-753~393-41
4~920~151-02
*4-932-444'02
*4-944-001-01
>1: 4~944-002-01
* 4-944-539-01
Descriptionfi
REMOTE COMMANDER (RM~S422)
ANTENNA, LOOP
CORD, POWER (EB)
CORD, POWER (CND)
SHEET, PROTECTION (for HST-H422)
MANUAL, INSTRUCTION (CND)
(ENGLISH/FRENCH/SPANISH/CHINESE)
MANUAL, INSTRUCTION (BE)
(ENGLISH/GERMAN/RUSSIAN/POLISH)
SHEET, PROTECTION (for SS-H433)
CUSHION (for SS-H433)
CUSHION. UPPER (for HSTvH422)
CUSHION, LOWER (for HST-H422)
INDIVIDUAL CARTON
CND : Canadian
EE : East European
ltems marked
*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items
Note: Note:
The components identi» Les composams identifies par
fied by mark or dob une marque Asont critiques
ted line with mark pourla sécurité.
are crirical for safety. Ne les remplacer que par une
Replace only with part piece porram Ie numéro spéci-
number specified. fiéi
COMPACT HI-DENSITY
COMPONENT SYSTEM
SONY,
