sony fh 404 service manual 2

Extracted text from sony fh 404 service manual 2 (Ocr-read)

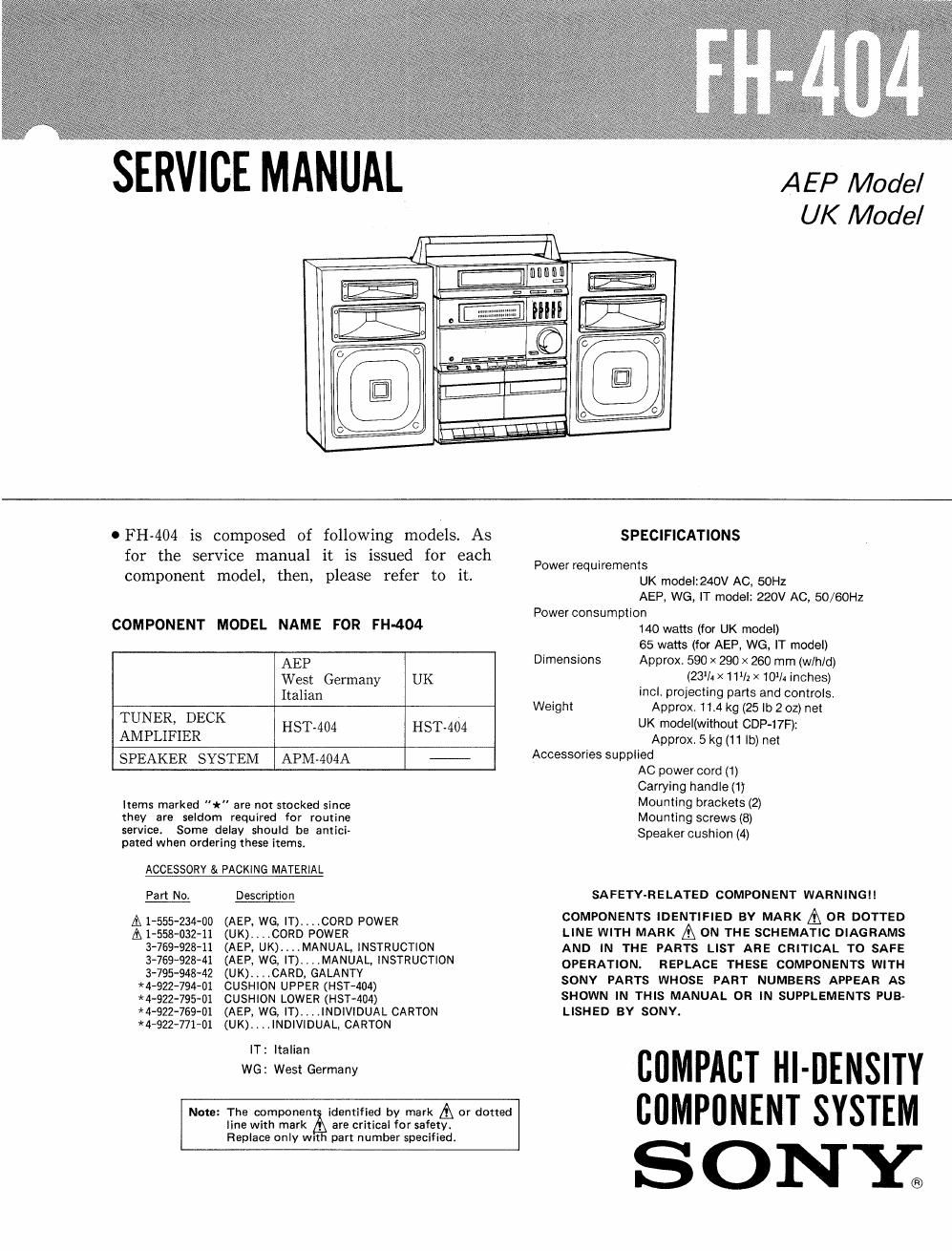

Page 1

SERVICE MANUAL

AEP Model
UK Model

0FH-404 is composed of following models. As
for the service manual it is issued for each
component model, then, please refer to it.

COMPONENT MODEL NAME FOR FH-404

AEP
West Germany UK
Italian
TUNER, DECK
AMPLIFIER HST-404 HST-404
SPEAKER SYSTEM APM»404A -

Items marked ~k" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

ACCESSORY & PACKING MATERIAL

Part No.

A 1-555-234-00
A 1-558-032-11
3-769-928-11
3-769-928-41
3-795-948-42
*4-922-794-01
*4-922-795-01
*4-922-759-01
*4-922471-01

Description

(AEP, WG, IT). ,,.CORD POWER

(UK). . . ,CORD POWER

(AEP, UK)....MANUAL. INSTRUCTION
(AEP, WG, IT). . . .MANUAL, INSTRUCTION
(UK). . . .CARD, GALANTY

CUSHION UPPER (HST-404)

CUSHION LOWER (HST-404)

(AEP, WG, IT). . . .INDIVIDUAL CARTON
(UK). ...|ND|V|DUAL, CARTON

IT: Italian
WG: West Germany

Note:

line with mark are critical for safety.

The componenAidentified by mark A or dotted
Replace only wrt part number specified.

SPECIFICATIONS

Power requirements
UK model:240V AC, 50Hz
AEP, WG, IT model: 220V AC, 50/60Hz
Power consumption
140 watts (for UK model)
65 watts (for AEP, WG, IT model)
Dimensions Approx. 590 x 290 x 260 mm (w/h/d)
(231/4 >< 11l2 >< 101/4 inches)
incl. projecting pans and controls.
Weighl Approx. 11.4 kg (25 lb 2 02) net
UK model(without GDP-17F):
Approx. 5 kg (11 lb) net
Accessories supplied
AC power cord (1)
Carrying handle (1)
Mounting brackets (2)
Mounting screws (8)
Speaker cushion (4)

SAFETY-RELATED COMPONENT WARNING! l

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.

BflMPABT HI-DENSITY
COMPONENT SYSTEM

SONY;

Page 2

FH-404

EXPLODED VIEW
NOTE:

No.

mamm-

The mechanical parts with no reference
number in the exploded views are not
supplied.

The construction parts of an assembled
part are indicated with a collation num-
ber in the remark columnt

ltems marked it" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

APM-404A
(UK I OPTIONAL)

Part No. Description
4-920>120>Dl PLATE (A) SIDE

7-685447-19 SCREW +KTP 3X10 TYPE? SLIT

X-4919-660-l SCREW ASSY, SIDE PLATE
2249-402-21 HANDLE
4-910-361-11 HOLDER, HANDLE

9-953-185-21

Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set

Color Indication of Appearance Parts

Example:

(RED) ...KNOB, BALANCE (WHITE)
T

T

Parts Color

Cabinets Color


Remark No. Part No.

4-902-942-03 SPRING, LEAF

Description

6
7 4-884-805-21 SHAFT

8 4-884-081-11 NUT, PLATE
9

4-884-803-12 PUSH, BUTTOW

Sony Corporation
Audio Group

Rema 1k

English
88C0455-1
Printed in Japan
© 1983. 3

_2_ Published by A/V Engineering Service Dept.
