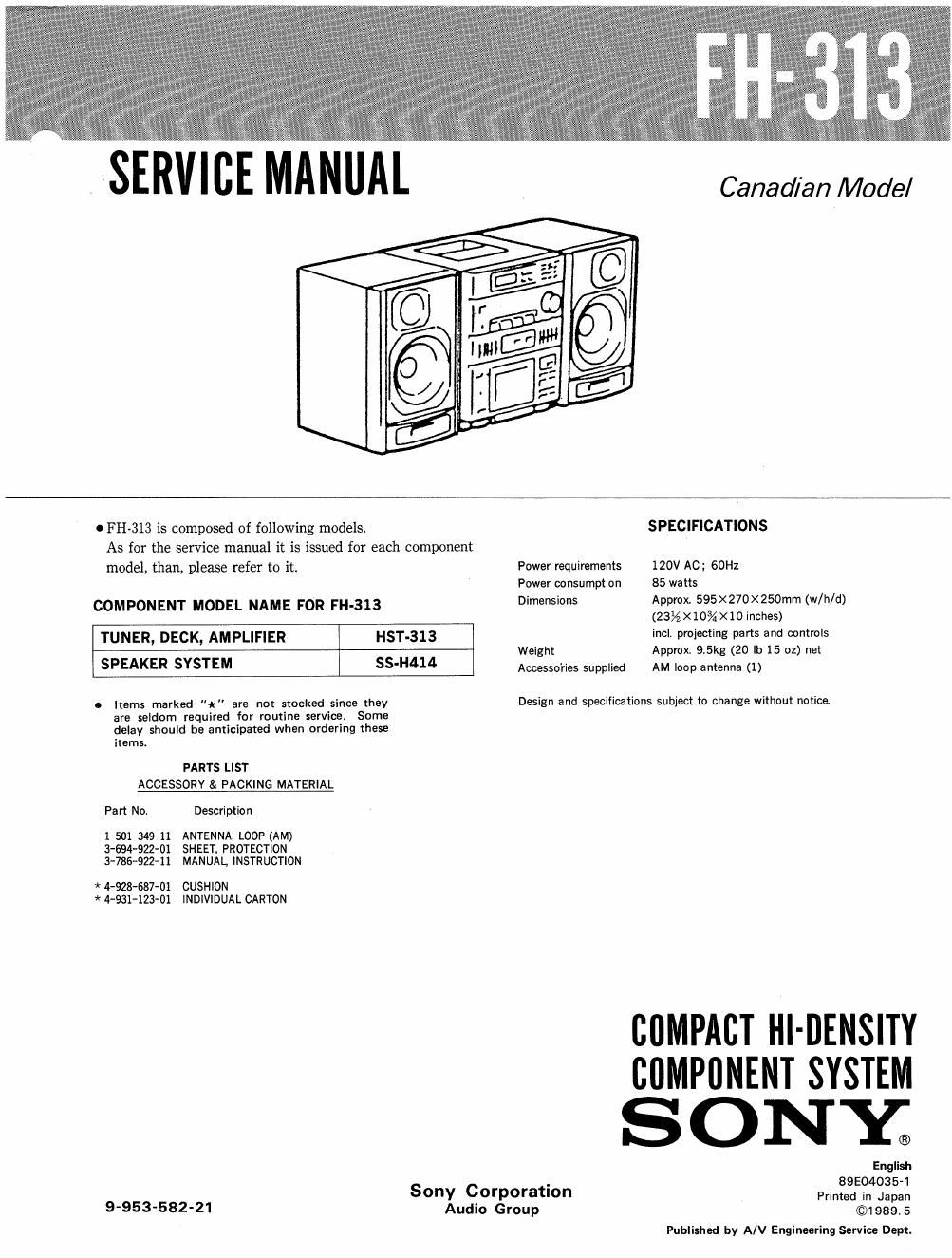

SERVICE MANUAL
Canadian Model
O FH-313 is composed of following models.
As for the service manual it is issued for each component
model, than, please refer to it.
Power requirements
Power consumption
COMPONENT MODEL NAME FOR FH-313 Dime"5i°s
TUNER, DECK, AMPLIFIER HST-313 w h
eig !
SPEAKER SYSTEM SS-H414 Accessories supplied
0 Items marked "~k" are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
PARTS LIST
ACCESSORY & PACKING MATERIAL
Part No.
1-501-349-11
3-694-922-01
3-786e922-11
* 4-928-687-01
* 4931-123-01
Mice
ANTENNA, LOOP (AM)
SHEET, PROTECTION
MANUAL INSTRUCTION
CUSHION
INDIVIDUAL CARTON
SPECIFICATIONS
120V AC; 60Hz
85 watts
Approx. 595x270><250mm (w/h/d)
(23% X10% X10 inches)
incl. projecting parts and controls
Approx, 9.5kg (20 lb 15 02) net
AM loop antenna (1)
Design and specifications subject to change without notice.
Sony Corporation
9-953-582-21
Audio Group
CUMPACT HI-DENSITY
BUMPIINENT SYSTEM
SON!
English
89EO4035-1
Printed in Japan
©1 989. 5
Published by A/V Engineering Service Dept.
