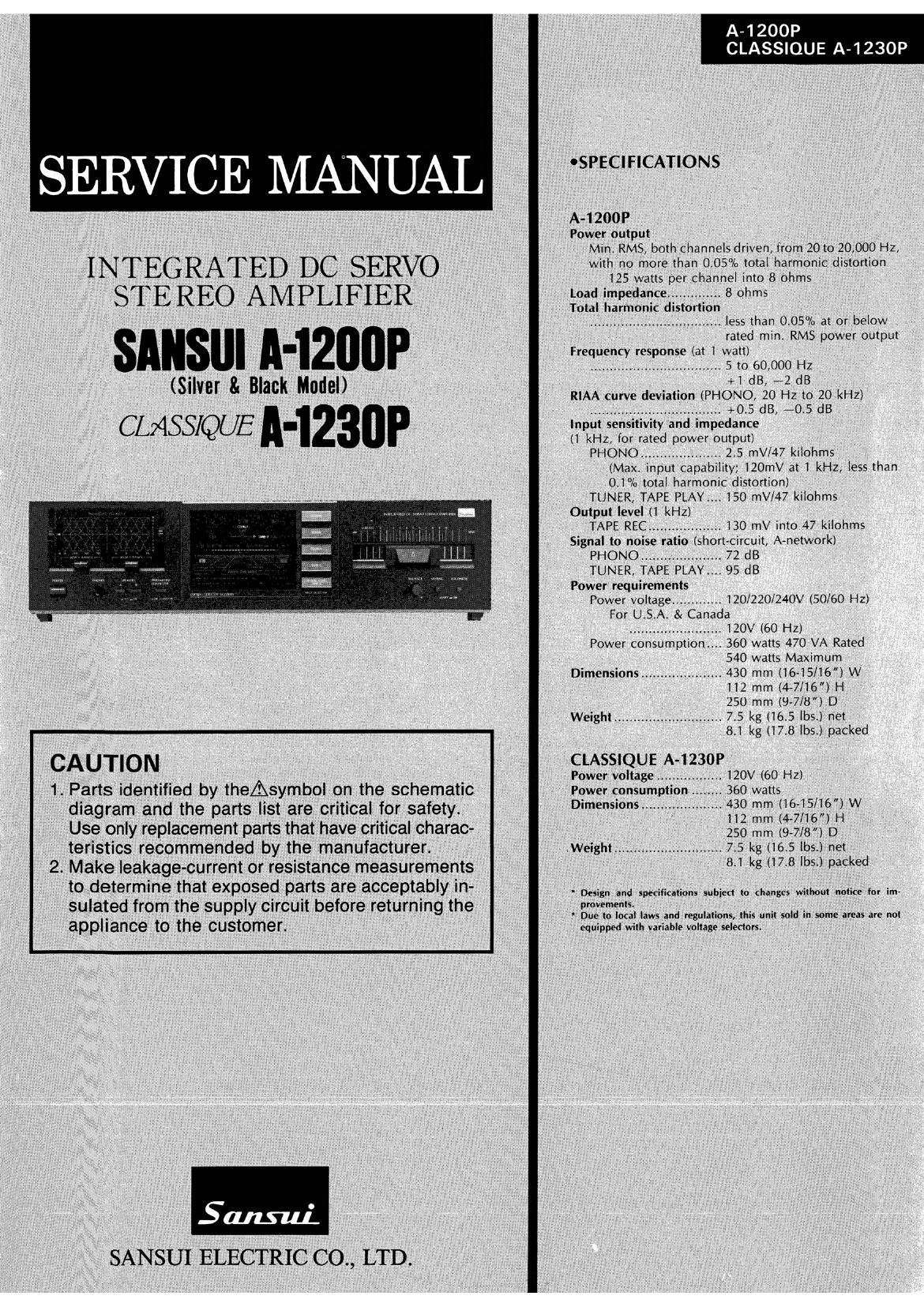

Sansui A 1200 P Service Manual

This is the 12 pages manual for Sansui A 1200 P Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 12
Sansui A 1200 P Service Manual

Extracted text from Sansui A 1200 P Service Manual (Ocr-read)


Page 2

A-1200P
CLASSIOUE A-1230P

1. The symbols, UL, CSA, SA, BS, UK, EU, AS, XX and

CAUTION

XX-V on the parts list and the schematic diagram
mean followings respectively.

UL ............................... Manufactured for USA market.
(Underwriters Laboratories approved model.)

CSA ............................ Manufactured for Canadian market.

SA ............................... Manufactured for South African market.

BS, UK ........................ Manufactured for United Kingdom market.

EU .............................. Manufactured for European market.

AS ............................... Manufactured for Australian market.

XX ........... Standard Version with Inner Voltage
Selector.

XX-V Standard Version with Outer Voltage
Selector.

NON MARK ................ Common Parts.

2. Some printed circuit boards are not supplied as the assembled.
To separate these in this service manual, the stock Nos are not in-
dicated at the ends of the board names. However, the individual parts
on the circuit boards are provided by orders.

3. Since some of capacitors and resistors are omitted from parts lists
in this service manual, refer to the Common Parts List for capacitors
& resistors, which was issued on February 1983.

4. Abbreviations in this service manual are as follows.

* °Abbreviations List ,

C.R. : Carbon Resistor E.B.L. : Low Leak Bi-Polar
S.R. : Solid Resistor Electrolytic Capacitor
Ce.R. : Cement Resistor Ta.C. : Tantalum Capacitor
M.R. : Metal Film Resistor F.C. : Film Capacitor
F.R. : Fusing Resistor M.P. : Metalized Paper Capacitor
N.I.R. : Non-Inflammable Resistor F.C. : Polystyrene Capacitor
A.R. : Array Resistor 6.0. 2 Gimmic Capacitor
C,C. : Ceramic Capacitor A.C. : Array Capacitor
C.T. : Ceramic Capacitor, VB. 2 Variable Resistor
Temperature Compensation S.V.R. : Semi Variable Resistor
E.C. : Electrolytic Capacitor SW. : Switch
E.L. : Low Leak Electrolytic Chip R. : Chip Resistor
Capacitor Chip C. : Chip Capacitor
E.B. : Bi-Polar Electrolytic
Capacitor
