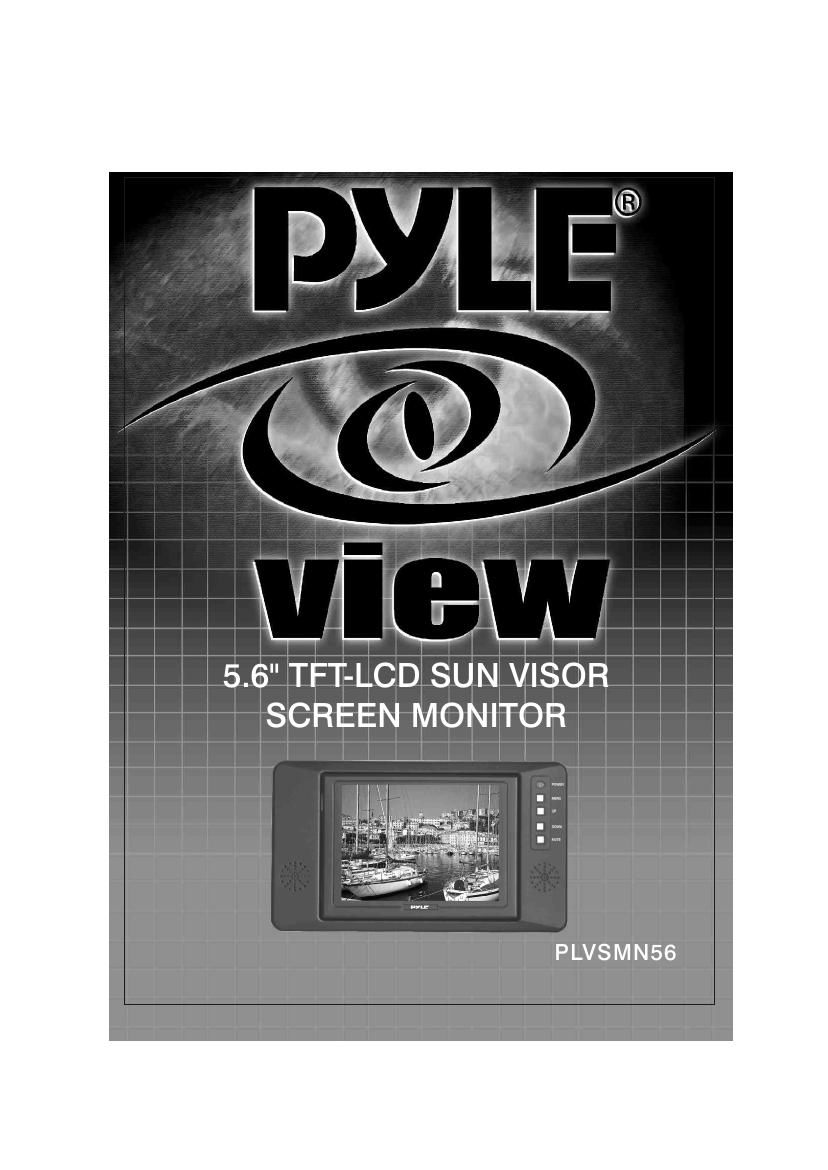

pyle plvsmn 56 owners manual

Extracted text from pyle plvsmn 56 owners manual (Ocr-read)


Page 1

1. SPECIFICATION * VIDEO - SCREEN SIZE --------------- 5.6" DIAGONAL - RESOLUTION -----------960(H) x 234(V) - COLOR CONFIGURATION ----- RGB Stripe - DOT PITCH -------------- 0.500(H) x 0.500(V)* ELECTRICAL- VIDEO INPUT ------------ 1 Vp-p, 75ohms- POWER CONSUMPTION ------- DC12V 7W MAX.- AUDIO OUTPUT POWER--------1W(MAX) - VIEWING ANGLE -------------- 70 (H) x 40 (V)2. FUNCTION KEYS AT FRONT PANEL:1SPEAKER MANUUP POWER DOWNMUTE- COLOR SYSTEM ------------- NTSC - BRIGHTNESS----------200 CD/M2

Page 2

Function Descriptions: * Power : Press the "POWER" button from the main unit to turn on the monitor. * * Mute: Shut off sound. OSD Menu: Main Menu Press the "MENU" from the main unit to pop up the functions. Each mode will process by turns, you may use. / together to increase or decrease parameters as well. * Menu: Press the MENU from the main unit to pop up the OSD functions by turns. Up/Down: Press UP or DOWN directly is to adjust volume. Using MENU button together can adjust the other functions.CONTRAST COLOR BRIGHTNESS TINT Default No Yes2
