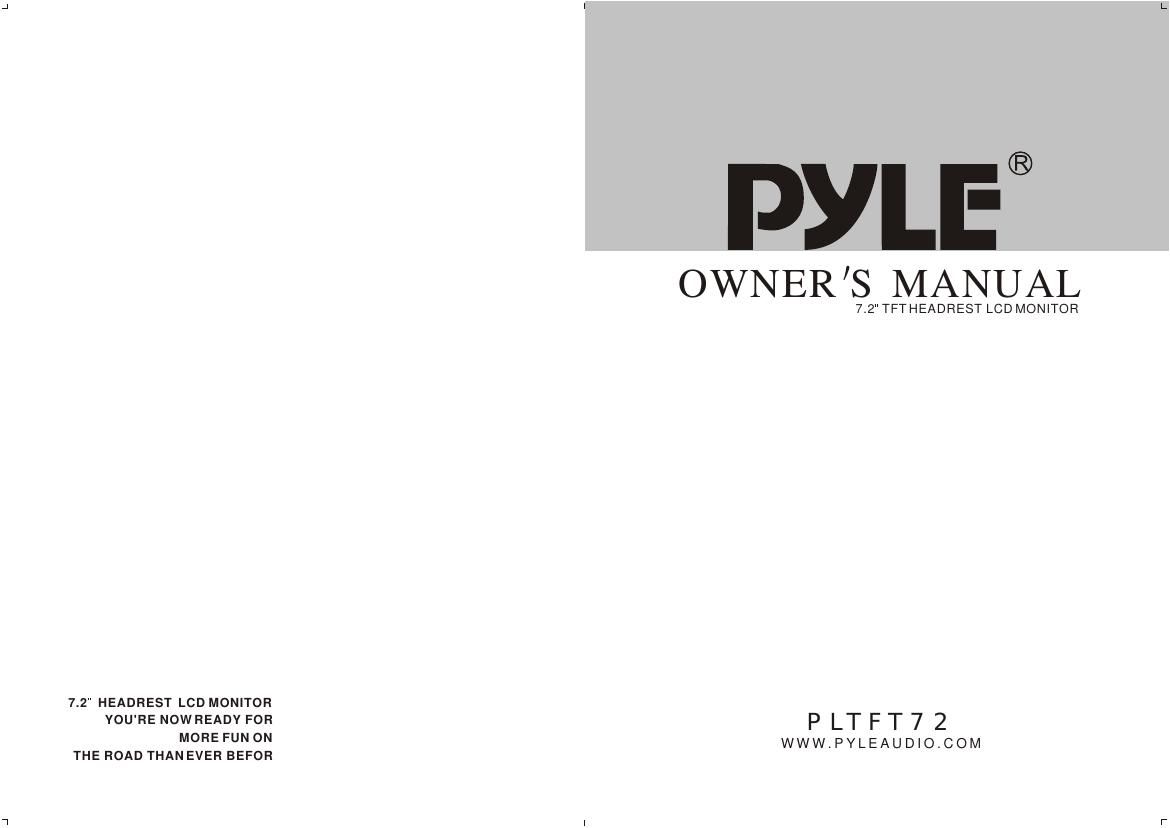

Pyle pltft 72 owners manual
This is the 2 pages manual for pyle pltft 72 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pyle pltft 72 owners manual (Ocr-read)
Page 1
7.2 HEADREST NTS LCD MONITOR OSDADJUSTMENT 1. Press the POWER ON/OFF button on the monitor or remote unit to turn on the power. a.Touch power switch on the monitor to select video/audio inputs. b.Press power switch on the monitor 2 second to turn off the monitor 2. Press MENU button on the monitor or remote unit to active the OSD function show on the LCD screen and press again to select the adjustment item as below. BRIGHTNESS CONTRAST COLOR VOLUME 3. Press UP/DOWN button on the monitor or remote unit to increase or decrease the value of the adjustment functions for optimum viewing. REMOTE CONTROL UNIT POWER on/off FEATURES ON SCREEN DISPLAY CONTROL ON SCREEN DISPLAY CONTROL WIDE SCREEN LCD PANEL 4. WIRE CONNECTION Red wire: + ve Black wire: - ve Violet wire: none Yellow RCA Jack: Video1 In Yellow RCA Jack: Vudio2 In Red RCA Jack: AUDIO 5. ACCESSORIES EXTENSION MINIDIN CABLE 1PC REMOTE CONTROL UNIT 1 PC VIDEO CABLE 1 PC HEADREST SHROUD 6.LCD MONITOR REMOTE CONTROLDISPLAY 7.2 WIDE SCREEN LCD BACK LIGHT BUILT IN CCFT DOT FORMAT 960X234 VIDEO INPUT LEVEL COMPOSITE 1.0V P-P/75 OHMS VIDEO INPUT SYSTEMSN TSC A UTOS WITCHING POWER SOURCEDC 12V +/- 15% POWER CONSUMPTION 700Ma (max ) /10w (max) OPERATION TEMPERATURE -20 Celcius to + 75 Celcius STORAGE TEMPERATURE -30 Celcius to + 85 Celcius DIMENSIONS 215 (W) x153 (H) x38 (D) mm NET WEIGHT 0.8 KGSSPECIFICATIONS:Power on /offColor Contrast VolumeBrightnessSelectMuteVideo1 /video2OSD POWER MENU + EARPHONE JACK
