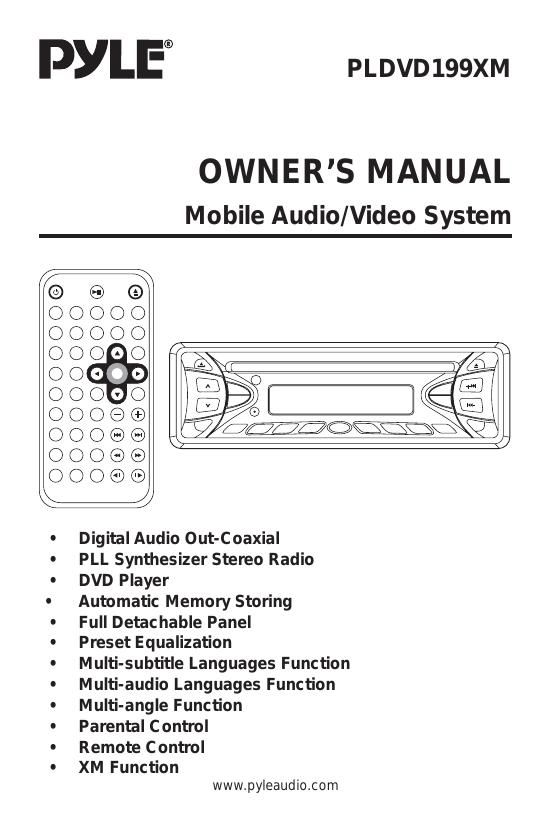

pyle pldvd 199 xm owners manual

Extracted text from pyle pldvd 199 xm owners manual (Ocr-read)


Page 1

2 Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. - A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders. - L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video. - Supplied remote handles multi-function software (multi-language audio-track/subtitle, multi-angle, multi- story, etc.), plus all basic functions. USE THIS PRODUCT SAFELY When Driving Keep the volume level low enough to be aware of road and traffic conditions. When Car Washing Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage. When Parked Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback. Use the Proper Power Supply This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car). Protect the Disc Mechanism Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.Use Authorized Service Centres Do not attempt to disassemble or adjust this precision product. Please refer to the Service Centre list included with this product for service assistance. For Installation The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚. FEATURES

Page 2

3 CONTENTS Safety Information ........................................................................................4 Disc Notes .....................................................................................................5 Installation .....................................................................................................6 Using the Detachable Front Panel .............................................................9 Wiring Connection ......................................................................................10 Location and Function of Keys ..................................................................11 The Player ....................................................................................................11 Remote Control.............................................................................................12 Remote Control ...........................................................................................14 Preparing the Remote Control ......................................................................14 Loading/Ejecting a disc..............................................................................14 Loading a disc ..............................................................................................14 Ejecting a disc...............................................................................................14 Operation .....................................................................................................15 Basic Operation ............................................................................................15 Radio Operation............................................................................................16 XM Operation ................................................................................................16 Disc (DVD/VCD/CD/MP3) Operation ............................................................17 AV IN Operation ............................................................................................22 Setup ...........................................................................................................23 Initial Setup ...................................................................................................23 General Setup ...............................................................................................23 Speaker Setup ..............................................................................................25 Audio Setup ..................................................................................................25 Preferences Setup ........................................................................................26 Defaults Table ...............................................................................................29 Trouble Shooting .........................................................................................30 Specifications..............................................................................................31
