Otari mx 5050 b mk3 brochure

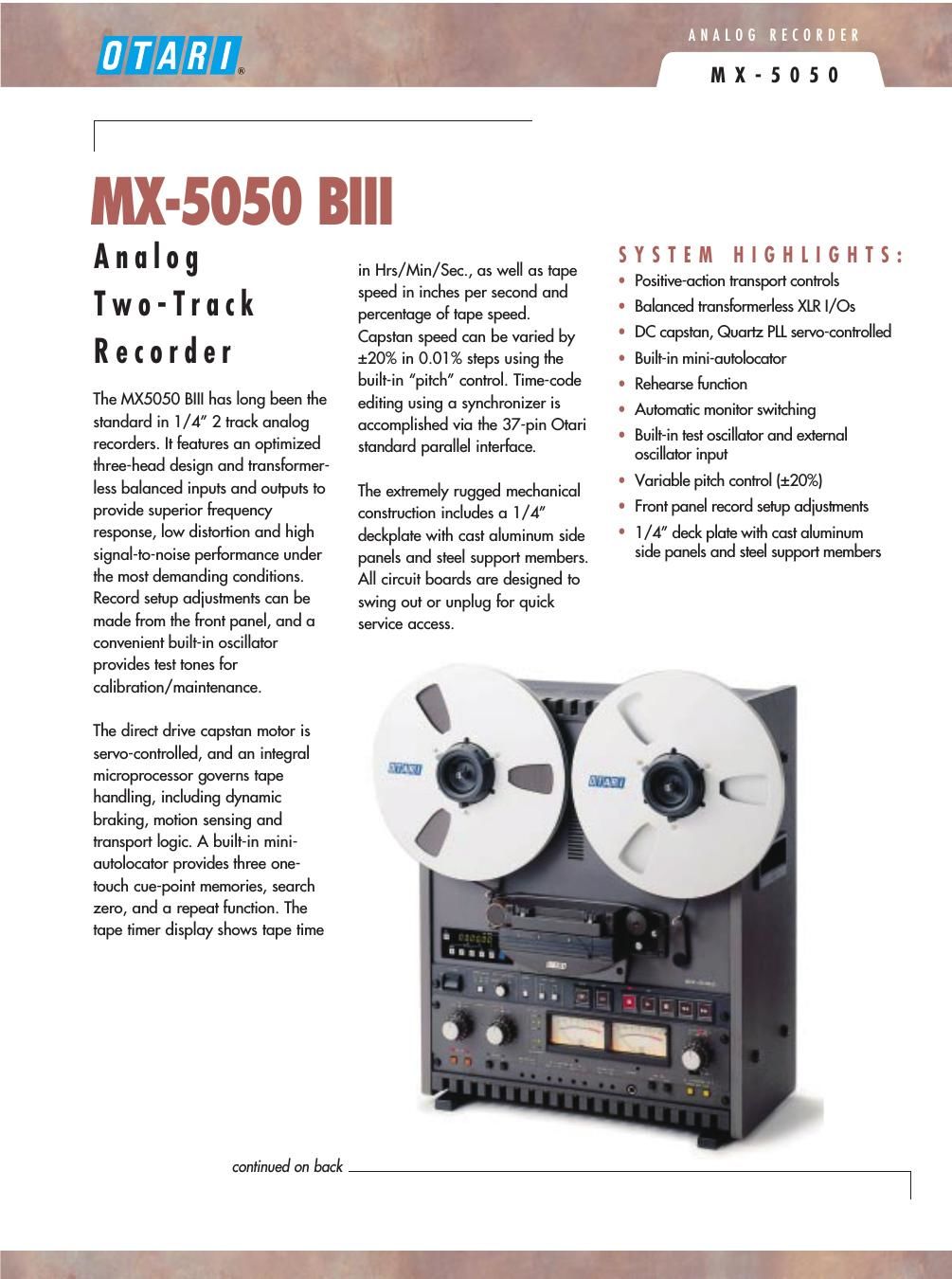

Page 1

M X - 5 0 5 0 B I I I S P E C I F I C A T I O N S : TAPE TRANSPOR T Track Configu ration 1/4" 2 Track Moto r Capstan x 1 (DC brushless PLL servo motor)Reel x 2 (AC Induction Motor) Reel Size max. 10.5" NAB Tape Speed High Speed Pair: 15 ips/7.5 ipsLow Speed Pair: 7.5 ips/3.75 ips Tape Speed Accuracy max. ±0.2 % Wow And Flutter Peak Weighted Per DIN 45507 15 ips: max. ±0.06 b%7.5 ips: max. ±0.08 %3.75 Ips: max. ±0.12 % Start Time Time required to accelerate to double the specified Wow and Flutter value.Speed Start Time15 ips max. 0.5 sec7.5 ips max. 0.4 sec3.75 ips max. 0.3 sec Stop Time Time to stop from Play modeSpeed Stop Time15 ips max. 0.5 sec7.5 ips max. 0.3 sec3.75 ips max. 0.3 secTime to Stop from Fast Wind max. 3 sec. Fast Wind Time max. 110 sec for 2500 ft (50Hz)max. 90 sec for 2500 ft (60 Hz) ELECTRONIC S Input Line Mode: Transformerless Active BalancedInput Impedance: 100kohm, 20Hz-“20kHzNominal Level: +4dBuMax. Level: +30dBuConnectors: XLR Female type Mic Mode: Transformerless Active BalancedInput Impedance: 10kohmMin. Level: -70dBu/-50dBu/OFF switchableMic. Impedance: Min. 150ohm Output Line Mode: Transformerless Active BalancedOutput Impedance: Max 5ohm (20Hz-“20kHz)Load Impedance: MIn. 200ohmNominal Level: +4dBu/-16dBu switchableMax Level: +26dBu for 200ohmConnectors: XLR Male type Phone Load Impedance: 8ohm1/4" Standard Stereo Phone Jack Note: 0dBu = 0.775V Equalization NAB/IEC Selectable Standard Reference Flux MX-5050 BIII-2, 185/250/320* nWb/m(*open circuit flux) Frequency Response REC/REP Frequency Response 15 ips 30Hz - 20kHz ±2dB7.5 ips 30Hz - 18kHz ±2dB3.75 ips 20Hz - 10kHz ±2dB REC/SEL-REP Frequency Response 15 ips 250Hz - 7.5kHz ±3dB7.5 ips 250Hz - 5kHz ±3dB3.75 ips 250Hz - 2.5kHz ±3dB Signal to Noise Ratio Filter Unwtd Wtd Speed EQ15ips IEC 70dB 73dB NAB 69dB 72dB7.5ips IEC 67dB 70dB NAB 71dB 73dB3.75ips IEC 64dB 67dB NAB 64dB 67dB Measured with respect to a recording level of 1,040 nWb/mat 15 and 7.5 ips, and 740 nWb/m at 3.75 ips, using AMPEX 456 or equivalent tape.Unwtd: Using a 30Hz to 18kHz RC filter to eliminate noise outside the audio spectrum.Wtd: Using a NAB or ANSI A weighting filter and a 1kHz reference. Distortion Total Harmonic Distortionmax. 0.3% (15 ips 1kHz, 250 nWb/m, AMPEX 456) Crosstalk min. 55dB Depth of Erasure min. 75dB Test Oscillator Sine wave 1kHz/10kHz Bias Frequency 133kHz Erase Frequency 133kHz Operating Environment 5-“40C (41-“104F) 20-“80% RH Storage Environment -20-“45C (-4-“113F) 10-“80% RH Dimensions MX-5050 BIII 527 x 430 x 275 mm (H x W x D) Weight MX-5050 BIII 28kg OPTIONAL ACCESSORIE S Name Part No.Auto Locator (8-memory) CB-119Remote Controller (Transport) CB-127Input Transformer (2Ch unit) ZA-53T-T Output Transformer (2Ch unit) ZA-53S-TPedestal ZA-52L-22Rack Mount Kit RK-2B2-Trk version with 1/4 Trk Playback MX5050 BIII-P EDIT PEAKVU PEAKVU 430mm 527mm 206mm 220mm Japan & EuropeOtari, Inc.phone: +81-424-81-8626fax: +81-424-81-8633mail: sales@otari.co.jp SingaporeOtari Singapore PTE, LTD.phone & fax: +65-6738-7807mail: sales@otari.com.sg USAOtari U.S.A. Sales Inc.phone: +1-818-734-1785fax: +1-818-734-1786mail: sales@otari.com www.otari.com © 1999, 2008 Otari, Inc.
