Onkyo UPHT 1 Service Manual

This is the 4 pages manual for Onkyo UPHT 1 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
Onkyo UPHT 1 Service Manual

Extracted text from Onkyo UPHT 1 Service Manual (Ocr-read)

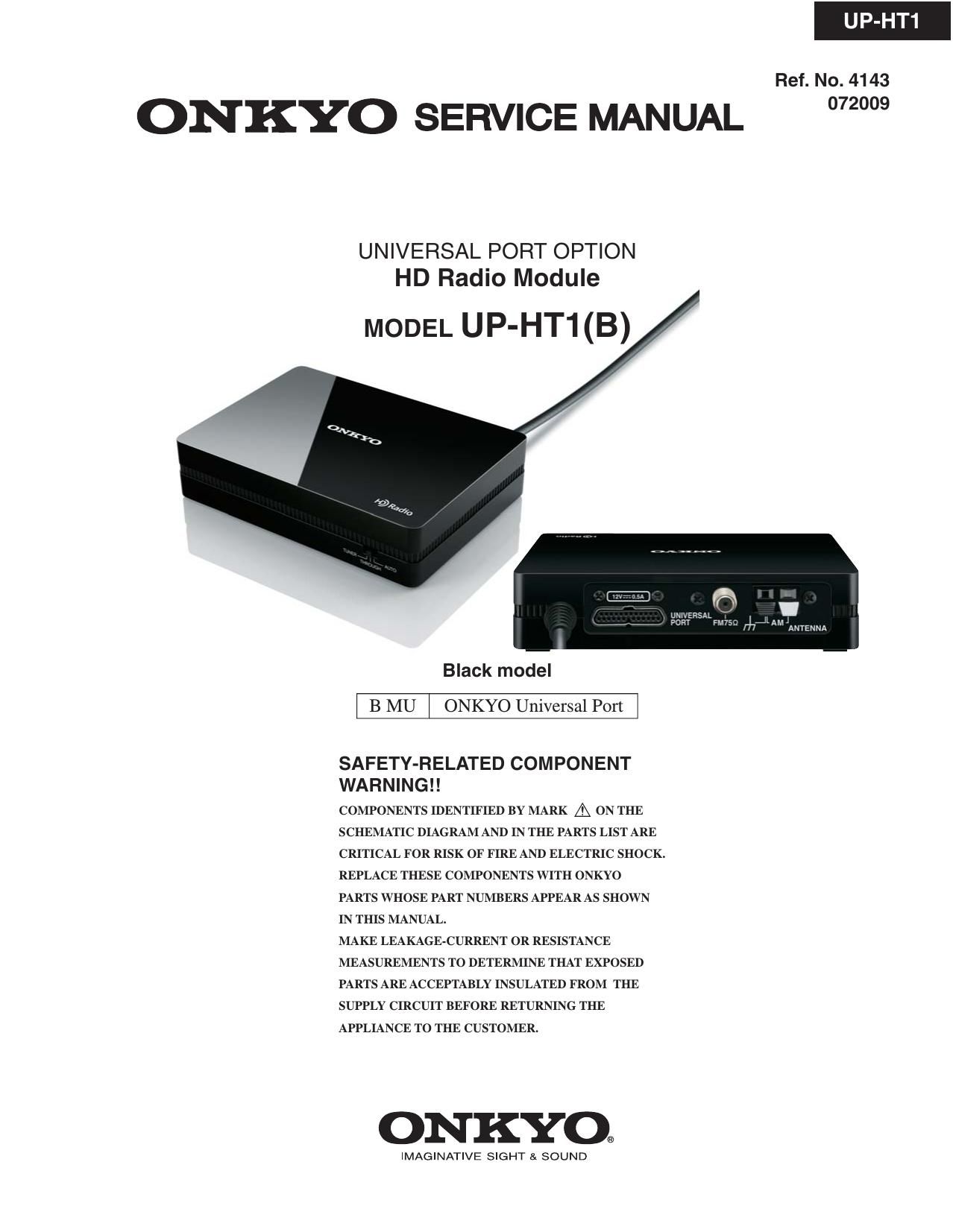

Page 1

UP-HT1

Ref. No. 4143

ONKYO SERVICE MANUAL °72°°9

UNIVERSAL PORT OPTION
HD Radio Module

MODEL UP-HT1 (B)

UNWERSAL ' I
, Pom r

4 AM 3
AHYENNA

Black model

\ BMU l ONKYO Universal Port |

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE To THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND
