Onkyo NAC 2.3 Service Manual

Extracted text from Onkyo NAC 2.3 Service Manual (Ocr-read)

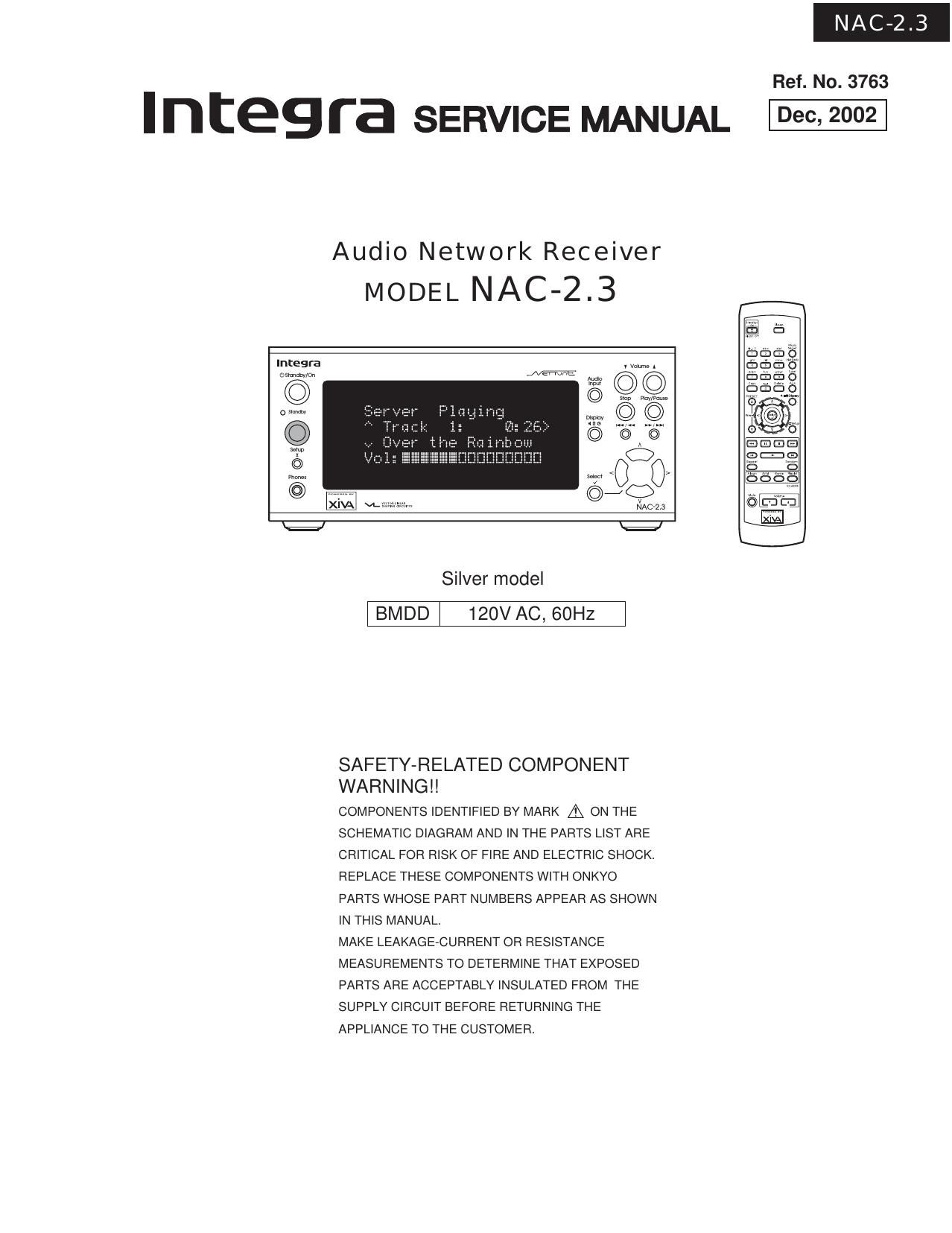

Page 1

Integ r a SERVICE MANUAL

Audio Network Receiver

MODEL NAC-2.3

Ref. No. 3763

Dec, 2002

Intesra
c mam/On

©

0 swam

©

SGND
x

Q


v Wm .

m RW/Puwa

Silver model

120V AC, 60HZ

SAFETY-RELATED COMPONENT
WARNINGH

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
