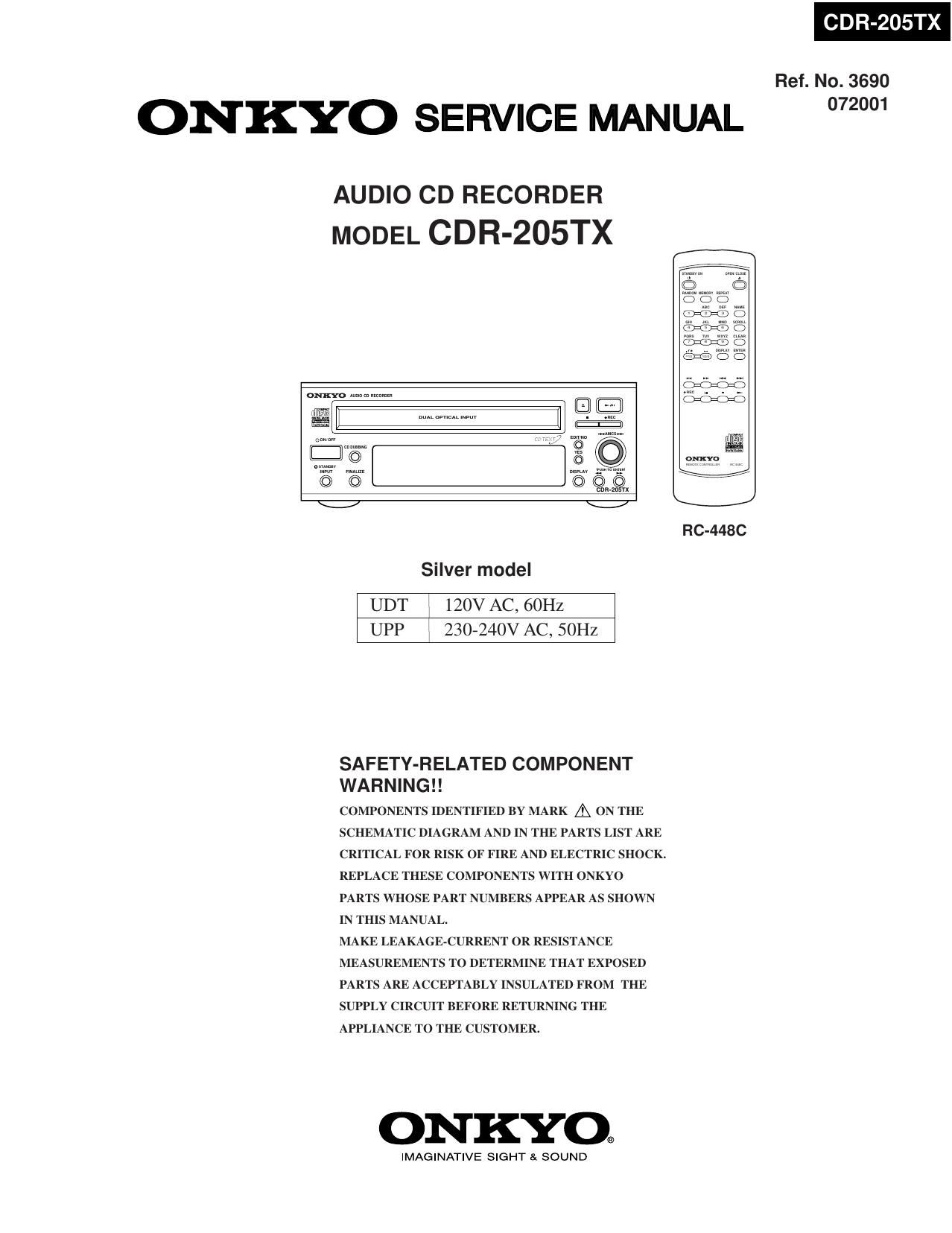

Page 1
CDR-205TX (Erase All? : The selected rack is the first track.) SPECIFICATIONS DISPLAY MESSAGES Message Explanation Open Disc tray is opening. Welcome Disc tray is closing. Rec Setup Setting initial settings for recording. Please wait. TOC Reading Reading the table of contents recorded on the disc. Please wait. PMA Writing Recording TOC data to the disc PMA (Program Memory Area). Never turn off the power while this message is displayed. Erase Last? Erasing the last track. To erase the last track, press the YES button or the AMCS dial. Erase All? Erasing all tracks. To erase all track, press the YES button or the AMCS dial. TOC Erase? Erasing the TOC from a finalized disc to return it to the unfinalized condition. To erase the TOC, press the YES button. Ers: ( - ) ? Erasing from track selected to last track. To erase, press the YES button or the AMCS dial. Initialize? Erase all data from disc. To erase all data, press the YES button or the AMCS dial. Name In? Asking if you are entering a disc name, artist name, and track names. To enter names, press the YES button (or the AMCS dial). SystemCompact disc recorder Recording/playing timeMax. 80 min (Approx., when using an 80-min disc) D/A converterAdvanced Multi bit Digital filter8 times oversampling Connections1 analog output, 1 analog input 2 digital input (optical), 1 digital output (optical) Frequency response5 Hz to 20 kHz Playback total harmonic distortion0.004 % (1 kHz) Playback dynamic range 98 dB Playback signal-to-noise ratio 98 dB Recording total harmonic distortion0.006 % (1 kHz) Recording dynamic range 92 dB Recording signal-to-noise ratio 94 dB Channel separation90 dB (during playback) Wow and flutterBelow threshold of measurability Output level2.0 V r.m.s. (analog) Power supplyAC230-240 V, 50 Hz (European models) AC120 V, 60 Hz (Asian models) External dimensions205 (W) x 76 (H) x 303 (D) mm Weight 2.7 kg Specifications and features are subject to change without notice. All Erase?
Page 2
CDR-205TX TROUBLESHOOTING GUIDE-1 If the CDR-205TX begins to operate improperly, use the troubleshooting guide below to help you ascertain the problem. Because the unit contains a microcomputer to provide advanced functions, it may malfunction due to external noise or static electricity. If this happens, disconnect the power cord and then plug it in again after about 5 seconds. About the self-diagnosis function The CDR-205TX is equipped with a self-diagnosis function. If a malfunction is detected during operation, one of the messages given below will appear in the front display. Display Cause Remedy Disc Error- Playback was likely stopped due to dirt, Eject the disc and check for dirt, dust, dust, scratches, or vibrations. and scratches. The disc has been placed in Eject the disc and check that it is placed upside down. in correctly. If you place the disc correctly and the same message appears, unplug the power cord and plug it back in again. If the same message appears again, contact an Onkyo service representative. System ErrorA malfunction has occurred in the system Unplug the power cord and plug it back (flashing) due to excessive noise or static electricity. in again. If the same message appears again, contact an Onkyo service representative. Messages during recording Display Cause Remedy Cannot CopyThe input digital signal contains Record an analog signal or recordable a copy guard signal (SCMS). music signal. D. In Unlock The digital input is blocked. Verify that the player component is properly playing and the digital cable is properly connected. Data has been input in the Verify that source signal is a normal CD-ROM, etc. music signal. Check LevelThe player component was already Stop the player component. Shortly thereafter, playing. "Signal Wait" will appear. Rec SetupThe CDR-205TX is entering the Wait until the message disappears. recording standby state. RepairAfter recording, the disc was left in While "Repair" is displayed, the the CDR-205TX when the power was CDR-205TX is tracing back through the turned off and the track numbers and recorded area and repairing the track recording time data was lost. numbers and recording time data. When the message disappears, finalization of the disc is possible. Depending on the recording amount, this process may take up to 40 minutes. Disc FullEither the disc is full of recordings or Use a new disc. 99 tracks have been recorded and no more recordings can be made on the disc.
