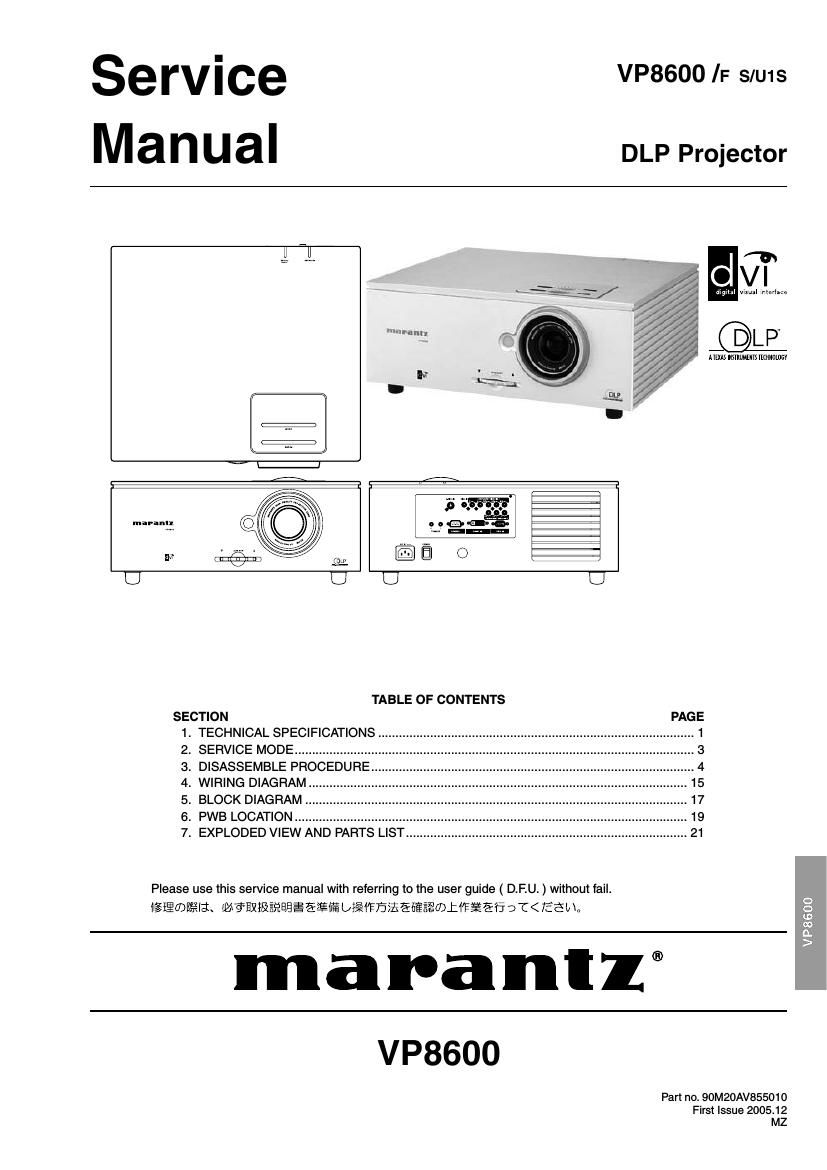

Marantz VP 8600 Service Manual
This is the 22 pages manual for Marantz VP 8600 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz VP 8600 Service Manual (Ocr-read)
Page 1
MARANTZ DESIGN AND SERVICE Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound. Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifi cations for which it is famous. Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed. The following information must be supplied to eliminate delays in processing your order : 1. Complete address 2. Complete part numbers and quantities required 3. Description of parts 4. Model number for which part is required 5. Way of shipment 6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void. SHOCK, FIRE HAZARD SERVICE TEST : CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary AC cord connector pins ( with unit NOT connected to AC mains and its Power switch ON ), and the face or Front Panel of product and controls and chassis bottom. Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied, and verifi ed before it is return to the user/customer. Ref. UL Standard No. 60950. In case of diffi culties, do not hesitate to contact the Technical Department at above mentioned address. 051121MZ USA MARANTZ AMERICA, INC 1100 MAPLEWOOD DRIVE ITASCA, IL. 60143 USA PHONE : 630 - 741 - 0300 FAX : 630 - 741 - 0301 JAPAN Technical 35- 1, 7- CHOME, SAGAMIONO SAGAMIHARA - SHI, KANAGAWA JAPAN 228-8505 PHONE : +81 42 748 1013 FAX : +81 42 741 9190 EUROPE / TRADING MARANTZ EUROPE B.V. P. O. BOX 8744, BUILDING SILVERPOINT BEEMDSTRAAT 11, 5653 MA EINDHOVEN THE NETHERLANDS PHONE : +31 - 40 - 2507844 FAX : +31 - 40 - 2507860 AUSTRALIAQualiFi Pty Ltd, 24 LIONEL ROAD, MT. WAVERLEY VIC 3149 AUSTRALIA PHONE : +61 - (0)3 - 9543 - 1522 FAX : +61 - (0)3 - 9543 - 3677 NEW ZEALANDWILDASH AUDIO SYSTEMS NZ 14 MALVERN ROAD MT ALBERT AUCKLAND NEW ZEALAND PHONE : +64-9-8451958 FAX :+64-9-8463554 THAILAND MRZ STANDARD CO., LTD 746 - 754 MAHACHAI ROAD., WANGBURAPAPIROM, PHRANAKORN, BANGKOK, 10200 THAILAND PHONE : +66 - 2 - 222 9181 FAX : +66 - 2 - 224 6795 TAIWAN PAI- YUING CO., LTD. 6 TH FL NO, 148 SUNG KIANG ROAD, TAIPEI, 10429, TAIWAN R.O.C. PHONE : +886 - 2 - 25221304 FAX : +886 - 2 - 25630415 MALAYSIA WO KEE HONG ELECTRONICS SDN. BHD. 2ND FLOOR BANGUNAN INFINITE CENTRE LOT 1, JALAN 13/6, 46200 PETALING JAYA SELANGOR DARUL EHSAN, MALAYSIA PHONE : +60 - 3 - 7954 8088 FAX : +60 - 3 - 7954 7088 KOREA MARANTZ KOREA CO., LTD. ROOM 604, ELECTRO OFFICE, 16-58, HANGGANG-RO 3GA, YONGSAN-KU, SEOUL, 140-013, KOREA PHONE : +82 - 2 - 323 - 2155 FAX :+82-2-323-2154 SINGAPORE WO KEE HONG DISTRIBUTION PTE LTD No.1 JALAN KILANG TIMOR #08-03 PACIFIC TECH CENTRE SINGAPORE 159303 PHONE : +65 6376 0338 FAX : +65 6376 0166 CANADA MARANTZ CANADA INC. 5-505 APPLE CREEK BLVD. MARKHAM, ONTARIO L3R 5B1 CANADA PHONE : 905 - 415 - 9292 FAX : 905 - 475 - 4159 D&M Holdings Inc. CHINA MARANTZ SHANGHAI TRADING LTD.ROOM.506 SHANGHAI LIGHT INDUSTRY MANSION1578 NANJING (WEST) ROAD SHANGHAI CHINA TEL : 021 - 6248 - 1064 FAX : 021 - 6248 - 3565
Page 2
1 1. TECHNICAL SPECIFICATIONS ❖ Optical characteristics Panel0.8 inch 16:9 1280 x 720 pixels Digital Micromirror Device Lamp200W AC Lensf: 32.5 to 44.0mm F: F2.5 Projection size 60 to 300 inches ❖ Input/Output VIDEO INRCA x 1 NTSC-3.58/PAL-4.43/SECAM Composite video 1.0Vp-p/ 75 Ohm S-VIDEO INS-Connector x 1 NTSC-3.58/PAL-4.43/SECAM S-Video COMPONENT3RCA x 1(Y, P B, P R) IN5RCA x 1 (G/Y, B/P B, R/P R, H, V) RGB/HD IND-sub M 15 pin x 1 Analog RGB DIGITAL INDVI-D x 1 AC IN3 Prong Grounding Type TRIG.1 OUT,Mini Jack x 2 TRIG.2 OUTOutput: DC12V or 0V RS-232C RS-232C receptacle plug x 1 ❖ General Power requirement AC 100-240V, 47–63 Hz Power consumption 255 W Standby consumption 1.3 W at 100 V AC 1.6 W at 240 V AC SafetyUL60950 CAN/CSA-C22-2 NO-60950 EMCFCC Part-15 Class-B EN55022 Class-B Dimensions 17 2/16 (W) x 14 12/16 (D) x 7 1/16 (H) inch 435(W) x 375(D) x 179.4(H) mm Net weight14.1 kg OperatingTemperature 10 to 35 °C Operating humidity 30 to 85% Storage Temperature – 20 to 60 °C Storage humidity30 to 85% ❖ «¶ › Q ÍÉç ï½ h É¢ · £ % J H J U B M . J D S P N J S S P S % F W J D F¢ % . %£ åïÓ 8 " $ èï¶ G ™ N N ' ' µ ÚÇážç¶Ü dè± ¶ ™ ï½ ❖ Ö Z- z Ïæ Ö- z 3 $ " % w / 5 4 $ 1 " - 4 & $ " . ¯ïÙ´¿ÄÏæ 7 Q Q 4Ïæ 4 z % w Ö- z / 5 4 $ 1 " - 4Ïæ ¯ïÙÉïÄ 3 $ " % w¢ :z 1 #z 1 3£ Ö- 3 $ " % w ( :z # 1 #z 3 1 3z )z 7 3 ( # ) % Ö-ÛÇ % T V C Ðï % w žÆé¬ 3 ( # ô»ç Ö- % 7 * % % w ?o¯Åžµ ÇV ÐïÓå¬ € z Äæ¨ Z- z z ÛÇ´ß¿« % w Äæ¨ Z- z Z- % $ 7‡hx 7 3 4 $ z 3 4 $ % w ❖ ¶ ` ?oAE " $ 7 ) [ « … ?- 8 Ž GO 8 Y % Y ) N N í L H ˆ^9 S ™ Æ ˆ^ê S ™ - 9 Sµ ™ Æ - ê S ™ ❖ Ç ¼ -èﶩ߿ӷ -æÞ¯ï· - o›á ? · - ?o¯Å· - % 7 * ) % . *ž¼Ó»· - { †Ì {· --  {· -]j; Jå§Å· ❖ Accessories -Lens cap x 1 -Remote controller x 1 -Batteries x 2 -Mains code x 1 -DVI-HDMI Connector -User Guide -Warranty Card (1 copy each for USA, CANADA)
