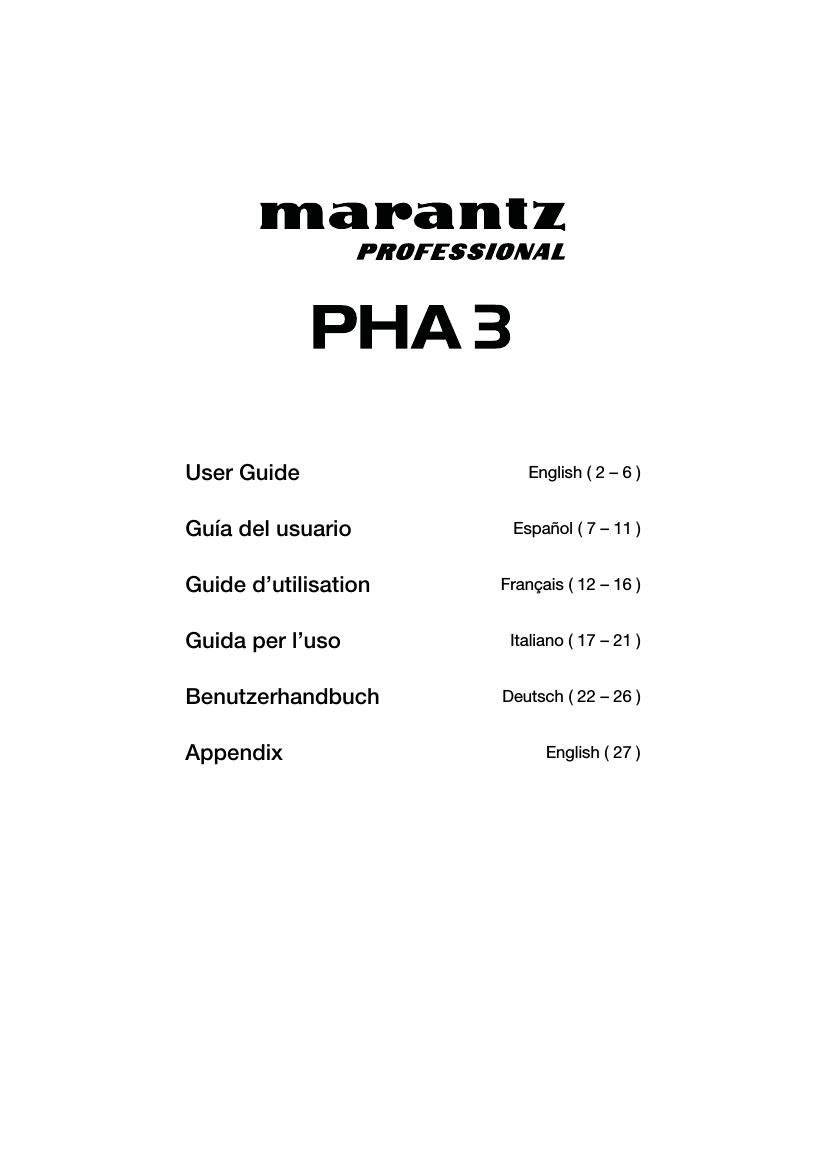

Marantz PHA 3 Owners Manual
This is the 28 pages manual for Marantz PHA 3 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Marantz PHA 3 Owners Manual (Ocr-read)
Page 1
2 User Guide (English) Introduction Key Features: - 3 independent headphone outputs with individual volume controls - Balanced XLR inputs or unbalanced 1/4 (6.35 mm) and 1/8 (3.5 mm) stereo inputs - 1/4 (6.35 mm) loop output for connecting additional units for extra outputs - Parallel 1/8 (3.5 mm) and 1/4 (6.35 mm)outputs with two additional 1/4 (6.35 mm) outputs - Internal power (2 x AA) or external power (5–17 VDC) Please see this guides Setup chapter to learn how to integrate PHA3 with your audio system. Box Contents PHA3 User Guide Power Adapter Safety & Warranty Manual 1/4-to-1/8 (6.35 mm to 3.5 mm) TRS Cable Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit marantzpro.com.
