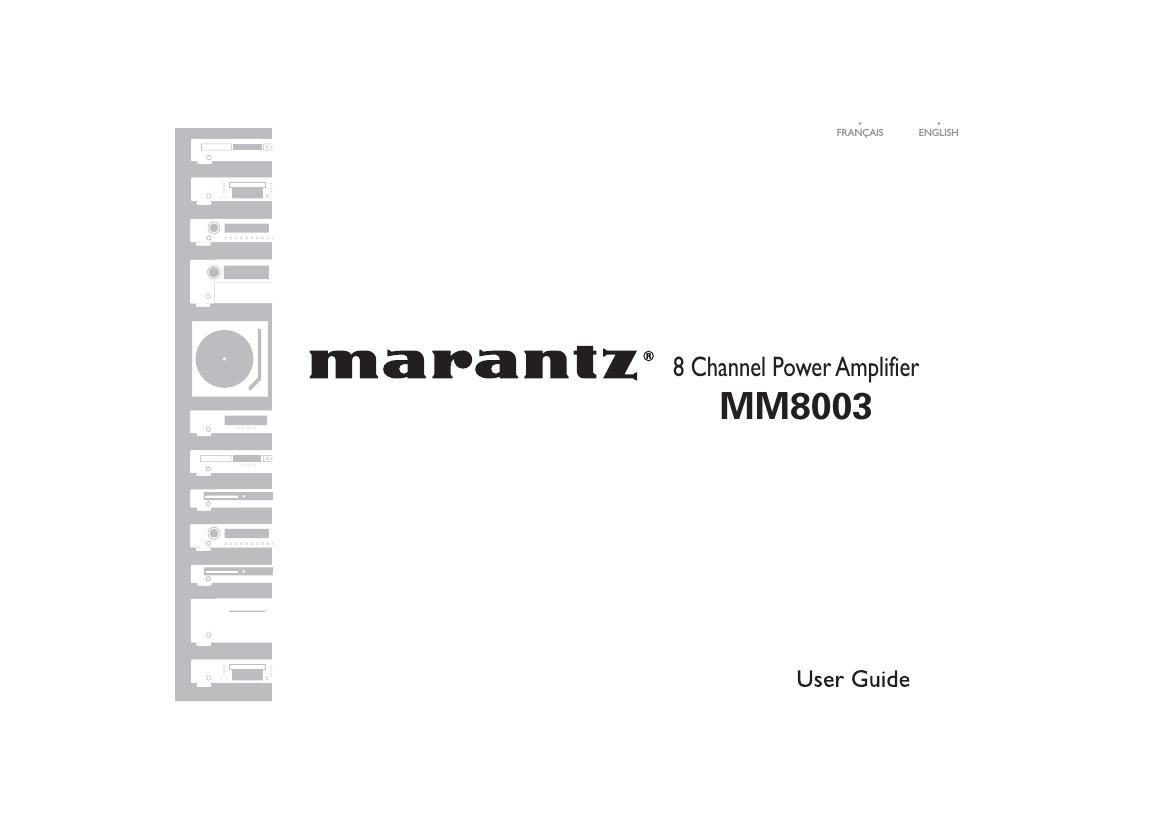

Marantz MM 8003 Owners Manual

Extracted text from Marantz MM 8003 Owners Manual (Ocr-read)


Page 1

CAUTION RISK OF ELECTRIC SHOCKDO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNINGTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPON- DANTE DE LA PRISE ET POUSSER JUSQUAU FOND. IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specifi ed by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. AMP_080328U2 NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE:Changes or modifi cations may cause this unit to fail to comply with Part 15 of the FCC Rules and may void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la Classe B est conforme a la norme NMB-003 du Canada. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Additional Safety Information! - This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer s instructions have been adhered to. - Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. - When the switch is in the OFF position, the apparatus isnt completely switched-off from the MAINS. - The equipment shall be installed near the power supply so that the power supply is easily accessible. - Do not touch hot spots during and immediately after use. - During and immediately after use, this product is hot in areas other than the controls and rear panel connection jacks. - Do not touch hot spots and especially the top panel. Contact with hot areas can cause burns. - Do not be exposed to excessive heat such as sunshine, fi re or the like. DECLARATION OF CONFORMITY U.S. Responsible Party: Marantz America, Inc. 100 Corporate Drive, Mahwah, NJ, 07430, U.S.A. TEL: 201-741-6500 Type of Product: Model: 8 Channel Power AmplifierMM8003 This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 2

BASIC CONNECTIONS OPERATION ADVANCED CONNECTIONS TROUBLESHOOTING OTHERS NAMES AND FUNCTION ENGLISH 1 INTRODUCTION Thank you very much for purchasing this model MM8003 8-Channel Power Amplifi er from Marantz. This remarkable component has been engineered to provide you with many years of home theater enjoyment. Please take a few minutes to read this manual thoroughly before you connect and operate the MM8003. As there are a number of connection and confi guration options, you are encouraged to discuss your own particular home theater setup with your Marantz A/V specialist dealer. ACCESSORIES CHECK Before use, check the below accessories were included in the package. AC power cable Remote control cable User Guide Warranty Card USA × 1 Canada × 1 CONTENTS INTRODUCTION ....................................1 ACCESSORIES CHECK ....................................................1 CONTENTS ............................................1 FEATURES .............................................2 BEFORE USE .........................................2 NAMES AND FUNCTION ......................3 FRONT PANEL ...................................................................3 REAR PANEL .....................................................................3 BASIC CONNECTIONS .........................4 PREPARING THE CONNECTION CABLES ....................4 INPUT CONNECTOR SWITCHING...................................4 AV8003 CONNECTIONS ...................................................5 SPEAKER CONNECTIONS ...............................................6 POWER CABLE CONNECTION........................................7 USING AC OUTLETS .........................................................7 OPERATION ...........................................8 TURNING ON THE POWER ..............................................8 TURNING THE POWER OFF ............................................8 ADVANCED CONNECTIONS ................9 BI-AMPLIFIER CONNECTIONS ........................................9 MULTI ZONE SPEAKER CONNECTIONS ......................10 MULTI ZONE CONNECTIONS ........................................ 11 REMOTE CONTROL CONNECTIONS ...........................12 CONNECTIONS WITH EXTERNAL CONTROL COMPONENTS .............................................................\ ...12 TROUBLESHOOTING .........................13 RESETTING THE AMPLIFIER .........................................13 OTHERS ...............................................14 SPECIFICATIONS ............................................................14
